| 影像感測器 | 1/2.5" Progressive Scan CMOS |
|---|
| 最低照度 | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| Digital Noise Reduction | 3D DNR |
|---|
| WDR | 120dB |
|---|
| 焦距 | 2.8 to 12 mm |
|---|
| 鏡頭類型 | Motorized |
|---|
| 光圈 | F1.6 |
|---|
| 對焦 | Auto Horizontal field of view: 105° to 34.5° |
|---|
| 視場角 FOV | Vertical field of view: 55° to 19° Diagonal field of view: 125° to 40° |
|---|
| 鏡頭接口 | Φ14 |
|---|
| IR Range | Up to 50 m |
|---|
| Wavelength | 850nm Main stream: H.265/H.264 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| H.264 類型 | Main Profile/High Profile |
|---|
| H.264+ | Main stream supports |
|---|
| H.265 類型 | Main Profile |
|---|
| H.265+ | Main stream supports |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| 智能事件 | Line crossing detection, intrusion detection, face detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record |
|---|
| 聯動方式 | Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output (-S), Email |
|---|
| Region of Interest | Support 1 fixed region for main stream and sub-stream |
|---|
| 最大解像度 | 3840 × 2160 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|---|
| 影像增強 | BLC/3D DNR/HLC Saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
|---|
| Target Cropping | No |
|---|
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
|---|
| 網絡儲存 | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
|---|
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP- |
|---|
| 安全 | LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|---|
| Simultaneous | Live Up to 6 channels Up to 32 users 3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ |
|---|
| Audio (-S) | 1 input (line in), 1 output (line out), mono sound, terminal block |
|---|
| Alarm (-S) | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| Video Output | 1Vp-p composite output (75 Ω) (For adjustment only) |
|---|
| 機身儲存 | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
|---|
| SVC | H.264 and H.265 encoding support |
|---|
| Reset Button | Yes Yes |
|---|
| 音訊取樣率 | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
|---|
| 音訊壓縮 | G722.1/G.711/G726/MP2L2/PCM/MP3 |
|---|
| 音訊碼率 | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
|---|
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, |
|---|
| 介面語言 | Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|---|
| 供電 | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug |
|---|
| 功耗 | 12 VDC, 1.2A, max. 14.5W |
|---|
| and Current | PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W |
|---|
| Protection Level | IP67 |
|---|
| 材質 | Metal |
|---|

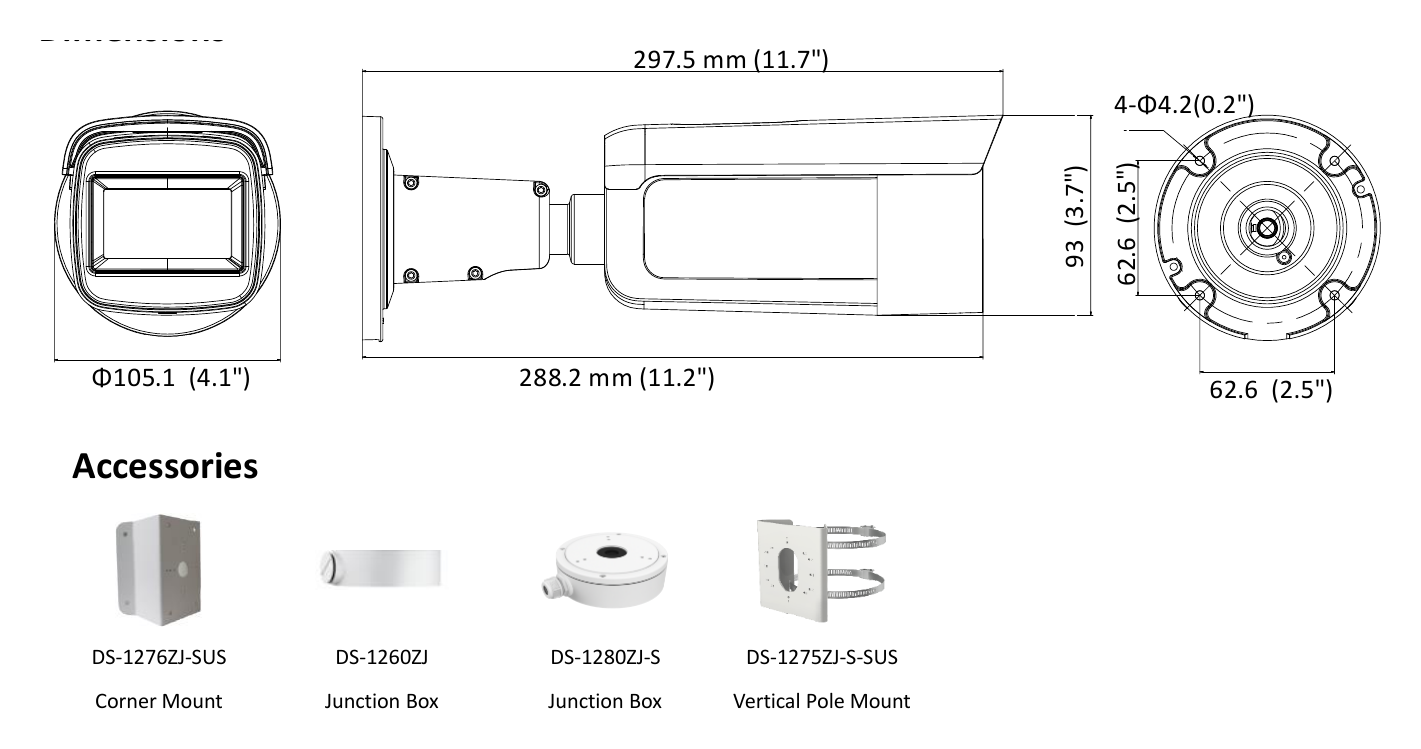

| 尺寸 | Φ 105.1 × 297.5 mm (Φ 4.1" × 11.7") Camera: Approx. 1335 g (2.9 lb.) Weight With Package: 2004g (4.4lb.) 297.5 mm (11.7") 4-Φ4.2(0.2") 62.6 (2.5") 93 (3.7") |
|---|
| Φ105.1 (4.1") | 288.2 mm (11.2") 62.6 (2.5") Accessories |
|---|
| DS-1276ZJ-SUS | DS-1260ZJ DS-1280ZJ-S DS-1275ZJ-S-SUS |
|---|
| Corner Mount | Junction Box Junction Box Vertical Pole Mount |
|---|
