| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1° |
|---|
| 鏡頭接口 | Integrated |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | Max. F1.2 |
|---|
| Depth of Field | 1 m to ∞ Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m |
|---|
| 補光類型 | White Light, IR |
|---|
| 補光距離 | Up to 40 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|---|
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, |
|---|
| 網絡協議 | SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR, Distortion Correction, Defog |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 寬動態 WDR | 130 dB |
|---|
| 防抖 | EIS |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|
| 智能事件 | Scene change detection Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
|---|
| 人臉抓拍 | Yes Line crossing, intrusion, region entrance, region exiting Perimeter Protection Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W |
|---|
| 材質 | Metal |
|---|

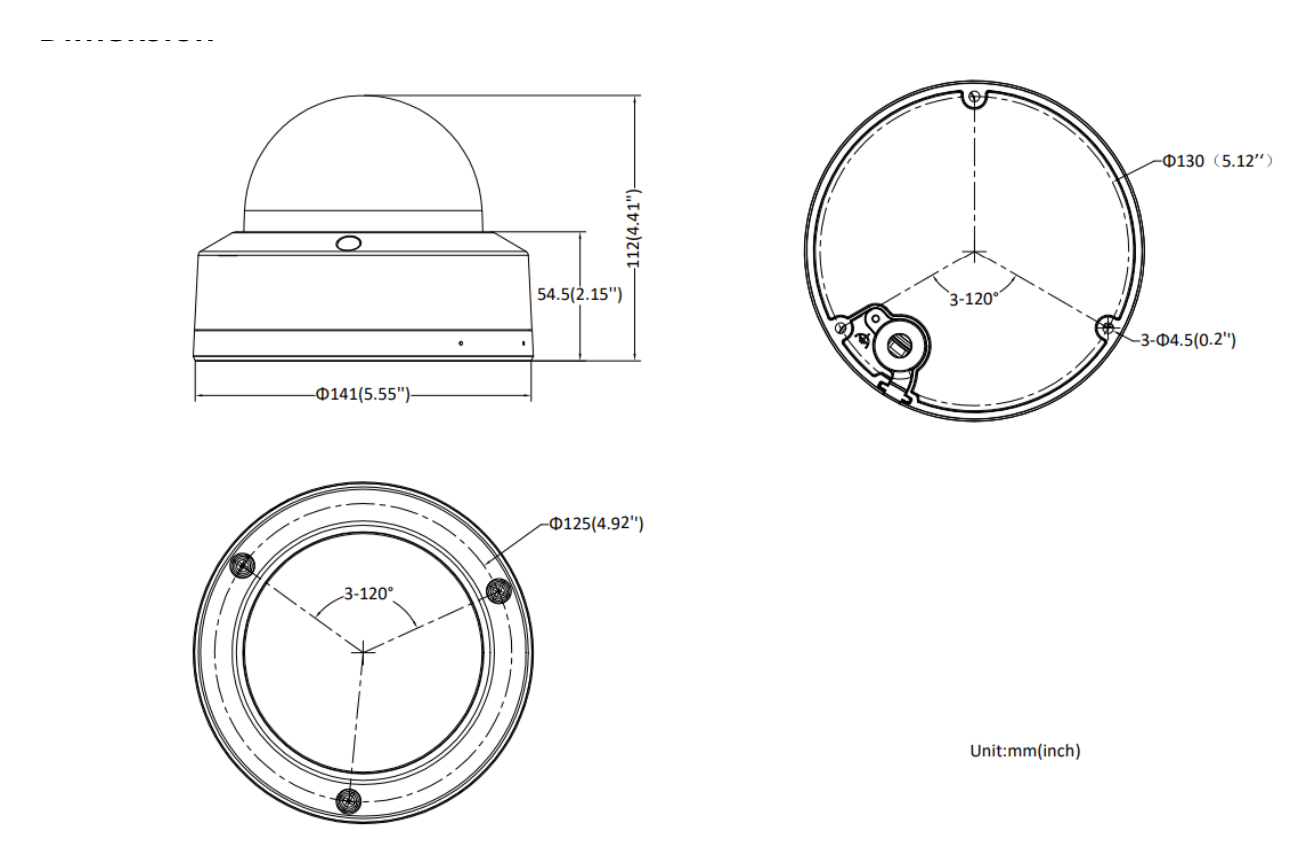

| 尺寸 | Ø 141 mm × 112 mm (Ø 5.55" × 4.41") |
|---|
| 包裝尺寸 | 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8") |
|---|
| 重量 | Approx. 850 g (1.9 lb.) |
|---|
| 連包裝重量 | Approx. 1355 g (3.0 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions |
|---|
| 一般功能 | Heartbeat, mirror, flash log, password reset via email , pixel counter, anti-banding 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuan |
|---|
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU |
|---|
| 防護等級 | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
|---|
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
|---|
