| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最低照度 | Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| WDR | 120 dB |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens , 2.8 to 12 mm |
|---|
| 光圈 | F1.6 |
|---|
| 視場角 FOV | Horizontal FOV: 110° to 31°, vertical FOV: 58° to 18°, diagonal FOV: 136° to 36° |
|---|
| 鏡頭接口 | Φ14 |
|---|
| IR Range | Up to 30 m |
|---|
| Wavelength | 850nm |
|---|
| 最大解像度 | 1920 × 1080 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) Main stream/third stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| H.264 類型 | Main Profile/High Profile |
|---|
| H.264+ | Main stream supports |
|---|
| H.265 類型 | Main Profile |
|---|
| H.265+ | Main stream supports |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| Scalable Video Coding | H.264 and H.265 encoding |
|---|
| 音訊壓縮 | G722.1/G.711/G726/MP2L2/PCM/MP3 |
|---|
| 音訊碼率 | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
|---|
| Environment | Noise Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 智能事件 | Line crossing detection, intrusion detection, face detection |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email |
|---|
| Region of Interest | 1 fixed region for main stream and sub-stream |
|---|
| 影像增強 | BLC/3D DNR/HLC Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) microSD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
|---|
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, |
|---|
| 安全 | EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
|---|
| 同時取流 | Up to 6 channels |
|---|
| 用戶管理 | Up to 32 users, 3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| Audio (-S) | 1 input (line in), 1 output (line out), four-core terminal block, mono sound |
|---|
| Alarm (-S) | 1 input, 1 output |
|---|
| Video Output | No |
|---|
| Interface Style | Pigtail style interface |
|---|
| 機身儲存 | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, |
|---|
| 介面語言 | Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
|---|
| 重設 | Reset via reset button on camera body, web browser and client software -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
|---|
| 儲存環境 | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) 12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
|---|
| 功耗 | 12 VDC, 0.85 A, max. 10 W |
|---|
| and Current | PoE (802.3af, 36 V to 57 V), 0.31 A to 0.2 A, max. 11. 5W |
|---|

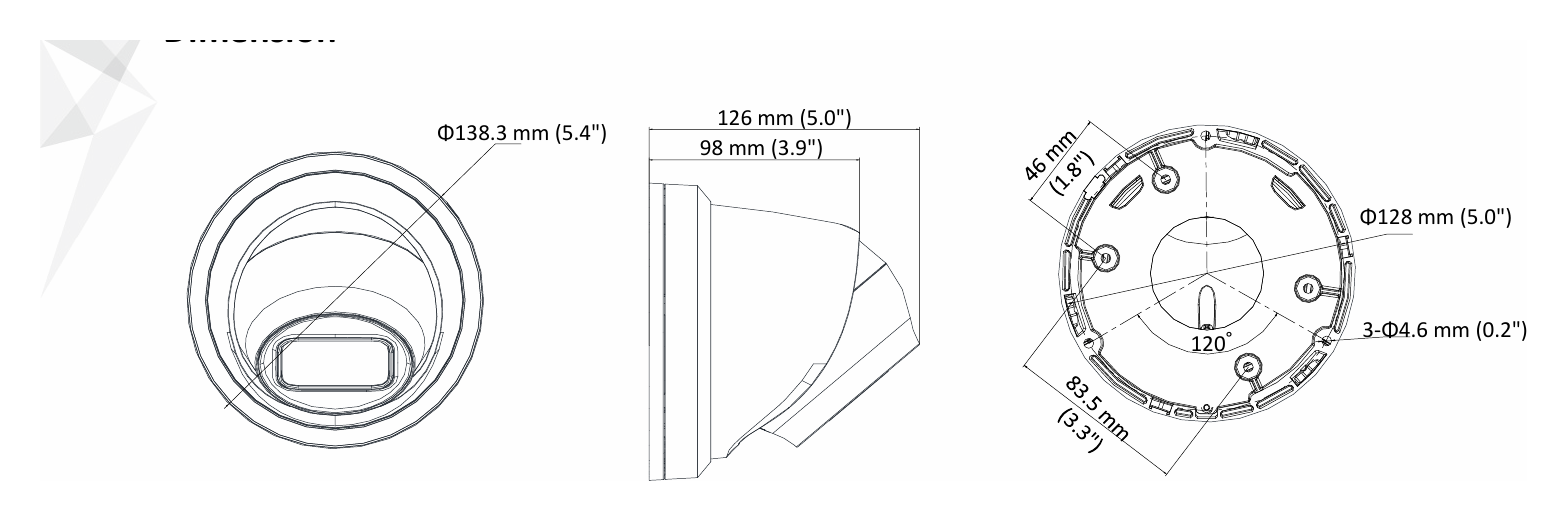

| 材質 | Metal Camera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0") With Package: 170 × 170 × 150 mm (6.7" × 6.7" × 5.9") |
|---|
| 重量 | Camera: Approx. 1.20 kg (2.65 lb.) 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
|---|
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
|---|
