| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最低照度 | Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 慢快門 | Yes |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 斷電記憶 | Yes |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°, diagonal FOV 138° to 36° |
|---|
| 光圈 | F1.4 |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 光圈類型 | Fixed 2.8 to 12 mm: |
|---|
| DORI 偵測距離 | Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 m Tele: D: 131.0 m, O: 52.0 m, R: 26.2 m, I: 13.1 m |
|---|
| IR Range | Up to 40 m |
|---|
| 紅外波長 | 850 nm |
|---|
| 智能補光 | Yes |
|---|
| 補光類型 | IR |
|---|
| 最大解像度 | 1920 × 1080 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|---|
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| H.264+ | Main stream supports |
|---|
| H.265+ | Main stream supports |
|---|
| 碼率控制 | CBR/VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream and sub-stream |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192Kbps (MP2L2)/ 8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, |
|---|
| 網絡協議 | IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, IP address filter, |
|---|
| 安全 | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11 |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89++ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 警報 | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 機身儲存 | Built-in memory card slot, support microSD card, up to 512 GB |
|---|
| 硬件重設 | Yes |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (human and vehicle targets classification), video tampering alarm, exception |
|---|
| 智能事件 | Scene change detection |
|---|
| 人臉抓拍 | Yes Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 周界防護 | detection Supports human and vehicle targets classification |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 12 VDC ± 25%, reverse polarity protection Power Supply PoE: 802.3af, Class 3 12 VDC, 0.92 A, max. 11.04 W Power Consumption and Current PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W |
|---|
| 電源接口 | Two-core terminal block |
|---|
| Camera Material | Metal |
|---|

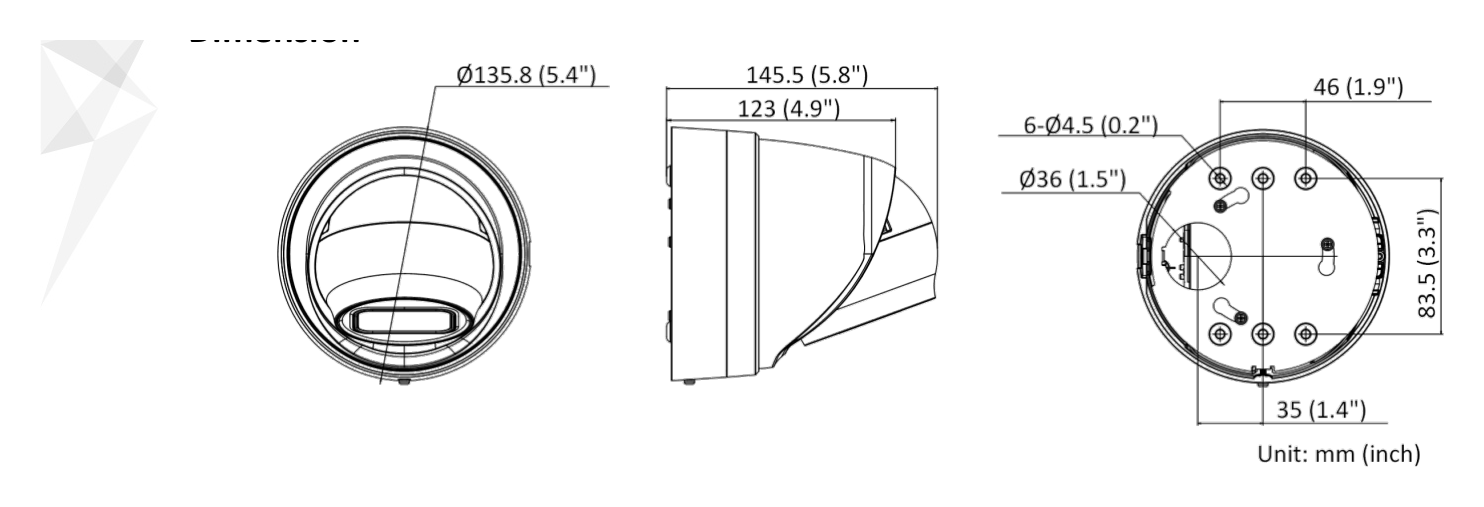

| 尺寸 | Ø 135.8 mm × 145.5 mm (Ø 5.4" × 5.8") |
|---|
| 包裝尺寸 | 170 mm × 170 mm × 205 mm (6.7" × 6.7" × 8.1") |
|---|
| 重量 | Approx. 1160 g (2.6 lb.) |
|---|
| 連包裝重量 | Approx. 1515 g (3.3 lb.) Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger Linkage Method capture, trigger alarm output, audible warning, send email |
|---|
| 韌體版本 | V5.5.113 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel General Function counter |
|---|
| Software Reset | Yes FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN |
|---|
| EMC | 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1) |
|---|
| Environment | CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP66 (IEC 60529-2013), IK10 (IEC 62262:2002) |
|---|
