HIKVISION DS-2CD2T45FWD-I5-I8 CCTV攝影機安裝・保養

Name: HIKVISION DS-2CD2T45FWD-I5-I8 4 MP IR Fixed Bullet Network Camera
Brand: Hikvision
SKU: DS-2CD2T45FWD-I5-I8

產品簡介

intl DS-2CD2T45FWD-I5-I8 為4 MP IR Fixed Bullet Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD2T45FWD-I5-I8 香港價格連安裝報價。

影像感測器：1/2.5" Progressive Scan CMOS
最低照度：Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON),
快門速度：1/3 s to 1/100,000 s
慢快門：Yes
日夜切換：IR Cut Filter

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-2CD2T45FWD-I5-I8 Hikvision 4 MP IR Fixed Bullet Network Camera 產品圖片

詳細規格

影像感測器	1/2.5" Progressive Scan CMOS
最低照度	Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
快門速度	1/3 s to 1/100,000 s
慢快門	Yes
日夜切換	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	120dB
焦距	2.8, 4, 6, 8, 12 mm
光圈	F1.6
對焦	Fixed 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131° 4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
視場角 FOV	6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61° 8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48° 12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
鏡頭接口	M12 I5: Up to 50 m I8: Up to 80 m
Wavelength	850nm Main stream: H.265/H.264
視頻壓縮	Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 類型	Main Profile/High Profile
H.264+	Main stream supports
H.265 類型	Main Profile
H.265+	Main stream supports
視頻碼率	32 Kbps to 16 Mbps Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Trigger recording: memory card, network storage, pre-record and post-record
聯動方式	Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
Region of Interest	Support 1 fixed region for main stream and sub-stream
最大解像度	2688 × 1520 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
影像增強	BLC/3D DNR/HLC Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Target Cropping	No
SVC	H.264 and H.265 encoding support
日夜模式	Day/Night/Auto/Schedule
網絡儲存	Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
API	ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS
安全	1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
同時取流	Up to 6 channels Up to 32 users 3 levels: Administrator, Operator and User
客戶端	iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
通訊接口	1 RJ45 10M/100M self-adaptive Ethernet port
機身儲存	Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
介面語言	Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) 12 VDC ± 25%, Φ 5.5 mm coaxial plug power PoE(802.3af, class 3) I5: 12 VDC, 0.7 A, max. 7.5 W
Power Consumption and	PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W
Current	I8: 12 VDC, 1 A, max: 11.5 W PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
Protection Level	IP67
材質	Metal Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8") Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
重量	Camera: 1200 g (2.7 lb.)

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

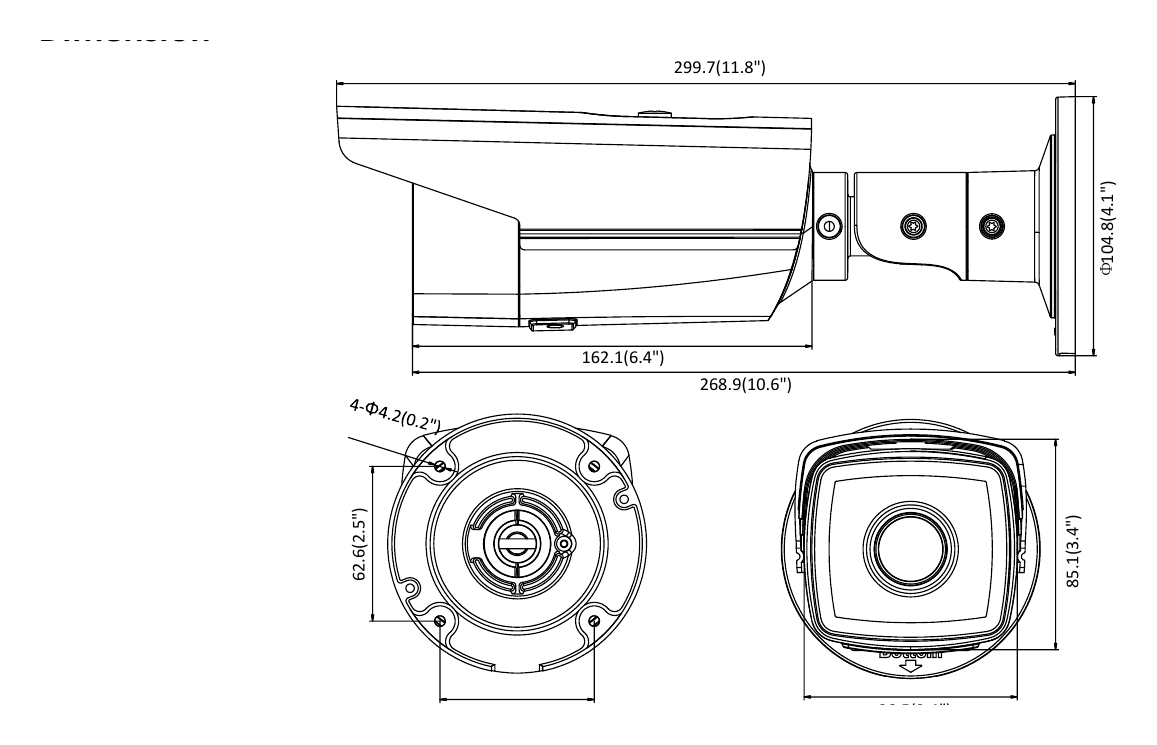

外形尺寸

詳見圖示｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DS-2CD2T45FWD-I5-I8 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DS-2CD2T45FWD-I5-I8 Hikvision 4 MP IR Fixed Bullet Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

常見問題

DS-2CD2T45FWD-I5-I8 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DS-2CD2T45FWD-I5-I8 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過官方 App 可隨時遠程實時監看及回放，無需固定 IP。

DS-2CD2T45FWD-I5-I8 定 DS-2XE6885G0-ILZHS 邊個好？

兩者主要規格分別：影像感測器方面，DS-2CD2T45FWD-I5-I8 係 1/2.5" Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；快門速度方面，DS-2CD2T45FWD-I5-I8 係 1/3 s to 1/100,000 s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s；日夜切換方面，DS-2CD2T45FWD-I5-I8 係 IR Cut Filter，DS-2XE6885G0-ILZHS 係 IR cut filter。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
