| 影像感測器 | 1/1.2" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|---|
| 日夜切換 | 24/7 color imaging |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8, 4, 6 mm optional 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° |
|---|
| 鏡頭及視場角 | 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62° |
|---|
| 光圈類型 | Fixed |
|---|
| 鏡頭接口 | M mount |
|---|
| 光圈 | F1.0 2.8 mm: 4.5 m to ∞ |
|---|
| Depth of Field | 4 mm: 7 m to ∞ 6 mm: 13 m to ∞ 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m |
|---|
| DORI 偵測距離 | 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m |
|---|
| 補光類型 | White Light |
|---|
| 補光距離 | 60 m |
|---|
| 智能補光 | Yes 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|
| 主碼流 | 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) Main stream: H.265/H.264/H.264+/H.265+ |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR/VBR |
|---|
| SVC 分級編碼 | Yes |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream and sub-stream TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, |
|---|
| 網絡協議 | IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, IP address filter, |
|---|
| 安全 | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11 |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 130 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 4 regions of privacy mask |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 |
|---|
| 重設鍵 | Yes |
|---|
| 內置麥克風 | Yes |
|---|
| Built-in Speaker | 2 W, 10 cm: 97 dB 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 24 VDC, 1 A) Motion detection (support alarm triggering by specified target types (human and |
|---|
| 基本事件 | vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection (support alarm triggering by specified target types (human and vehicle)), scene change detection Linkage capture, send email |
|---|
| 人臉抓拍 | Yes 12 VDC ± 25%, 0.84 A, max. 11.5 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.21 A |
|---|
| 材質 | Front cover: metal, body: metal, bracket: metal |
|---|

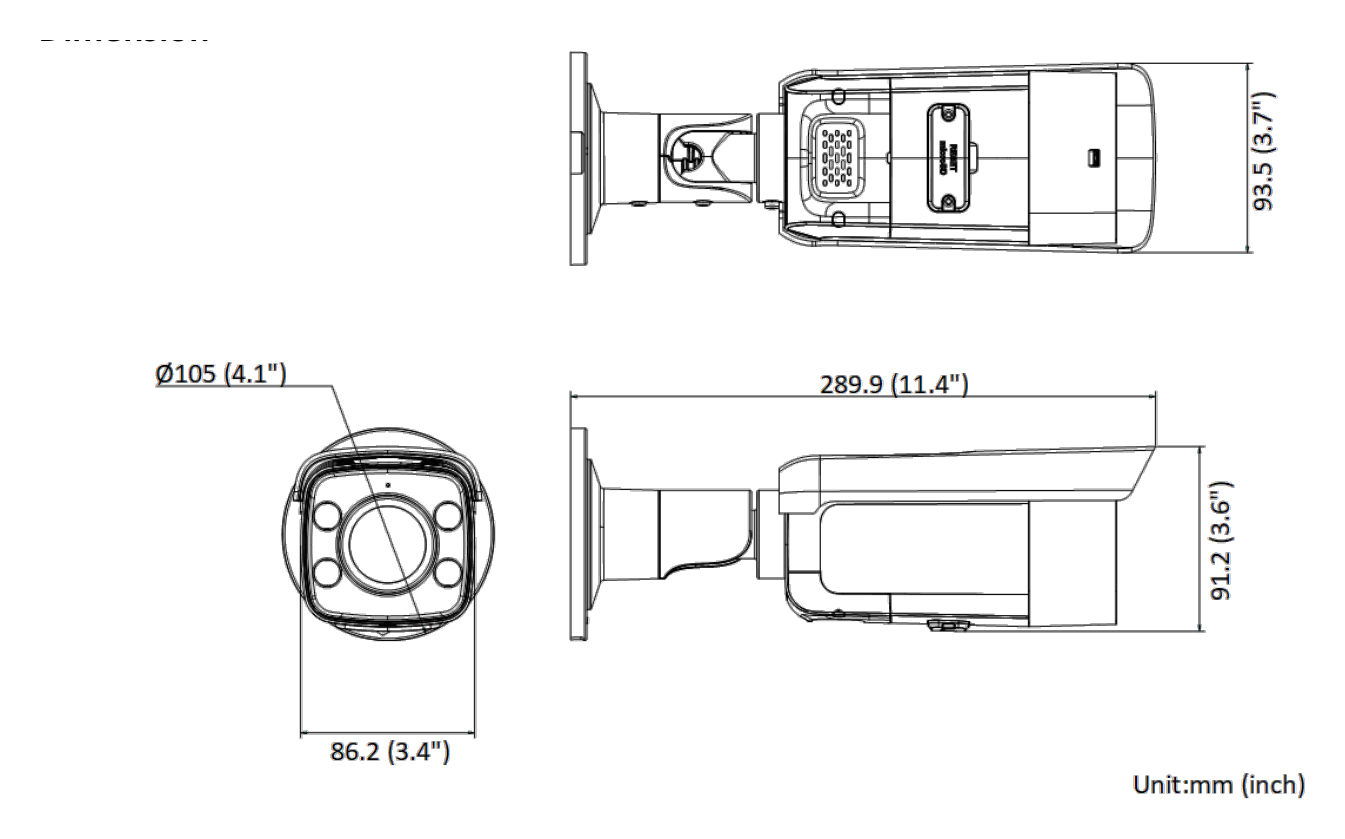

| 尺寸 | 289.9 mm × 93.5 mm × 91.2 mm (11.4" × 3.7" × 3.6") |
|---|
| 包裝尺寸 | 386 × 156 × 155 mm (15.2" × 6.1" × 6.1") |
|---|
| 重量 | Approx. 1255 g (2.6 lb.) |
|---|
| 連包裝重量 | Approx. 1769 g (3.7 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| 語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|---|
| 一般功能 | Anti-flicker, heartbeat, password reset via e-mail, pixel counter FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) UL (UL 62368-1); |
|---|
| Safety | CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) CE-RoHS (2011/65/EU); |
|---|
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP67 (IEC 60529-2013) |
|---|
