| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8, 4, and 6 mm optional 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133° |
|---|
| 鏡頭及視場角 | 4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109° 6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 2.8 mm, D: 43 m, O: 17 m, R: 9 m, I: 5 m |
|---|
| DORI 偵測距離 | 4 mm, D: 53 m, O: 21 m, R: 11 m, I: 6 m 6 mm, D: 86 m, O: 34 m, R: 17 m, I: 9 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 40 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) 50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360) Main stream: H.265+/H.265/H.264+/H.264 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream and sub stream |
|---|
| Audio Type | -U: Mono sound |
|---|
| 環境噪音過濾 | -U: Yes |
|---|
| 音訊取樣率 | -U: 8 kHz/16 kHz |
|---|
| 音訊壓縮 | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC |
|---|
| 同時取流 | Up to 6 channels Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 |
|---|
| 內置麥克風 | -U: Yes |
|---|
| 重設鍵 | -F: Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|
| 智能事件 | Line crossing detection, intrusion detection Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W,Ø 5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
|---|
| 材質 | Front cover: Metal, body: Plastic, bracket: Plastic |
|---|

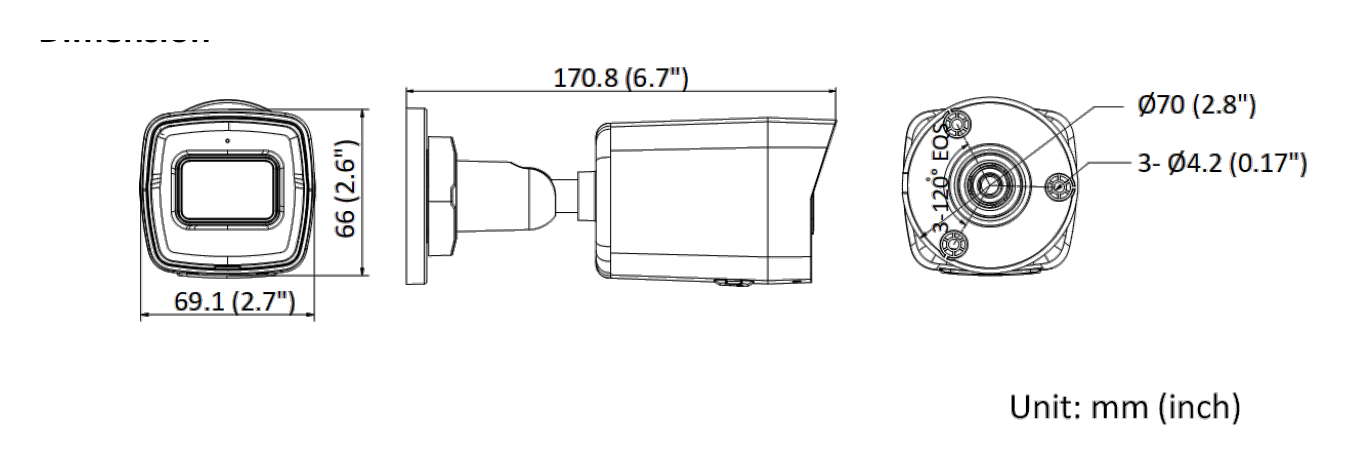

| 尺寸 | 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|---|
| 包裝尺寸 | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
|---|
| 重量 | Approx. 270 g (0.6 lb.) |
|---|
| 連包裝重量 | Approx. 481 g (1.1 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions |
|---|
| 語言 | English, Ukrainian Heartbeat, anti-banding, mirror, password protection, password reset via email, pixel General Function counter |
|---|
| EMC | FCC: 47 CFR Part 15, Subpart B CB: IEC 62368-1: 2014+A11, |
|---|
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
