| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 最低照度 | Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F2.0 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 40 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream and sub-stream |
|---|
| Audio Type | Mono sound |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X |
|---|
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|---|
| 同時取流 | Up to 6 channels Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 內置麥克風 | Yes, 1 built-in microphone Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|---|
| 智能事件 | Line crossing detection, intrusion detection |
|---|
| 聯動方式 | Upload to FTP, notify surveillance center, send email, trigger capture 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
|---|
| 材質 | Front cover: metal, body: plastic, bracket: plastic |
|---|

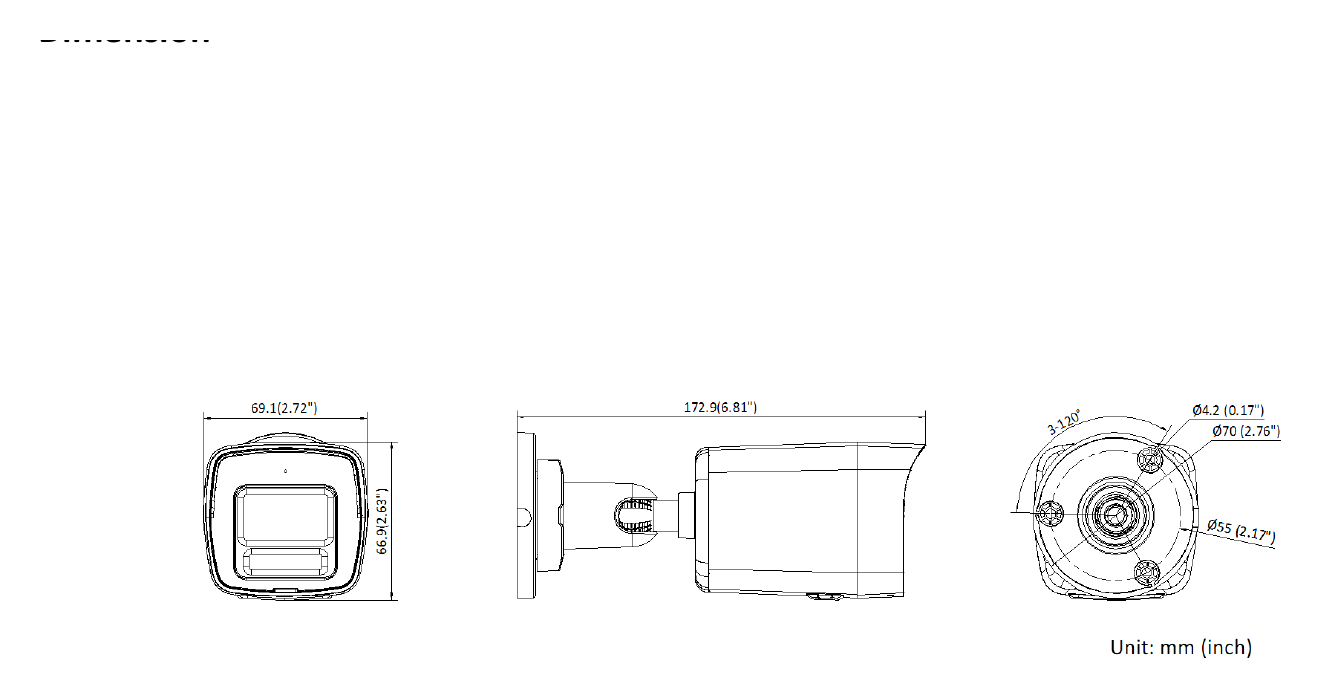

| 尺寸 | 172.9 mm × 69.1 mm × 66.9 mm (6.81" × 2.72" × 2.63") |
|---|
| 包裝尺寸 | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
|---|
| 重量 | Approx. 270 g (0.6 lb.) |
|---|
| 連包裝重量 | Approx. 481 g (1.1 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, anti-banding CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC |
|---|
| EMC | 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
