HIKVISION DS-2CD3186G2-IS CCTV攝影機安裝・保養

Name: HIKVISION DS-2CD3186G2-IS 8 MP AcuSense IR Fixed Dome Network Camera
Brand: Hikvision
SKU: DS-2CD3186G2-IS

產品簡介

intl DS-2CD3186G2-IS 為8 MP AcuSense IR Fixed Dome Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD3186G2-IS 香港價格連安裝報價。

影像感測器：1/1.8" Progressive Scan CMOS
最大解像度：3840 × 2160
最低照度：Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
快門速度：1/3 s to 1/100,000 s
日夜切換：IR cut filter

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

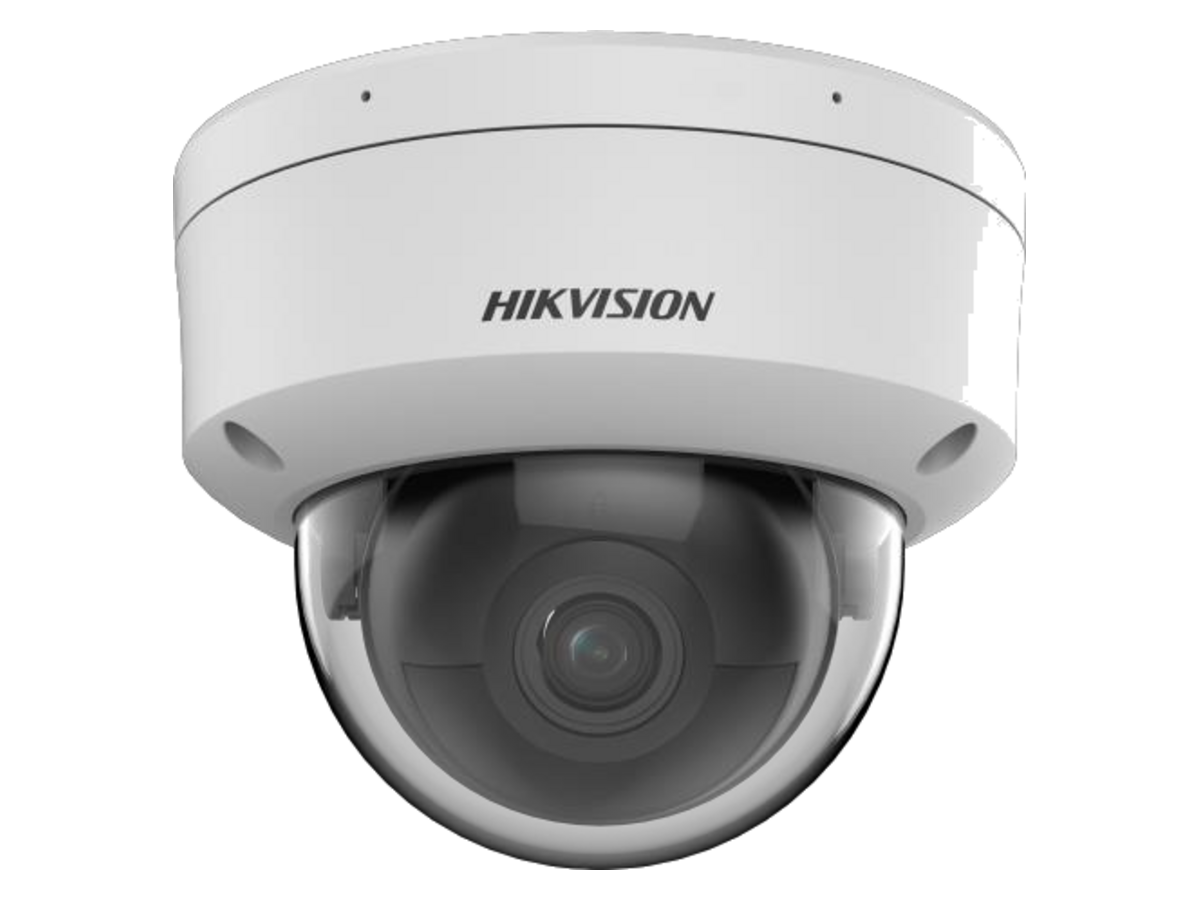

DS-2CD3186G2-IS Hikvision 8 MP AcuSense IR Fixed Dome Network Camera 產品圖片

詳細規格

影像感測器	1/1.8" Progressive Scan CMOS
最大解像度	3840 × 2160
最低照度	Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
鏡頭類型	Fixed focal lens, 2.8, 4, and 6 mm optional 2.8 mm, horizontal FOV 108°, vertical FOV 53°, diagonal FOV 133°
鏡頭及視場角	4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 103° 6 mm, horizontal FOV 60°, vertical FOV 35°, diagonal FOV 68°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.6 2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m
DORI 偵測距離	4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m 6 mm, D: 140 m, O: 55 m, R: 28 m, I: 14 m
補光類型	IR
補光距離	Up to 50 m
智能補光	Yes
紅外波長	850 nm Memory: 40 MB,
Open Resources	Smart RAM: 350 MB, eMMC: 2 GB
Computing Power	1.5 TOPS
Open Capability	HEOP 2.0 OpendevSDK
Deep Learning Structure	Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming Language	C,C++ 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
主碼流	60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
子碼流	60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 1920 × 1080 25/30fps (when main stream is lower than 3840 x 2160) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream:
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline Profile,Main Profile,High Profile
H.265 類型	Main Profile
碼率控制	CBR,VBR
SVC 分級編碼	H.264 and H.265 encoding
感興趣區域 ROI	5 fixed regions for main stream and sub-stream
Target Cropping	Yes
音訊壓縮	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Type	Mono sound 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
音訊取樣率	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
環境噪音過濾	Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
網絡協議	IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
同時取流	Up to 6 channels
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
安全	authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
網絡儲存	Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
客戶端	iVMS-4200,Hik-Connect,Hik-Central Plug-in required live view: IE 10, IE 11,
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
圖像參數切換	Yes Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
日夜模式	Day,Night,Auto,Schedule
寬動態 WDR	140 dB
影像增強	BLC,HLC,3D DNR,Defog
信噪比 SNR	≥ 52 dB
防抖	EIS
隱私遮蔽	4 programmable polygon privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
內置麥克風	-U: Yes 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
警報	1 input, 1 output (max. 12 VDC, 30 mA)
重設鍵	Yes
電源輸出	12 VDC, max. 100 mA Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception scene change detection,audio exception detection,defocus detection, unattended
智能事件	baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
人臉抓拍	Yes
People Counting	Yes Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle) Yes Intrusion detection,line crossing detection,region entrance detection,region exiting detection 12 VDC ± 25%, 0.66 A, max. 8 W,Ø 5.5 mm coaxial power plug,reverse polarity
供電	protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W Base: Metal, cover: Metal
尺寸	Ø 121.5 mm × 97.6 mm (Ø 4.8" × 3.8")
包裝尺寸	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
重量	Approx. 500 g (1.1 lb.)
連包裝重量	Approx. 700 g (1.54 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
一般功能	Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese
Safety	CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013,IK10: IEC 62262:2002

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

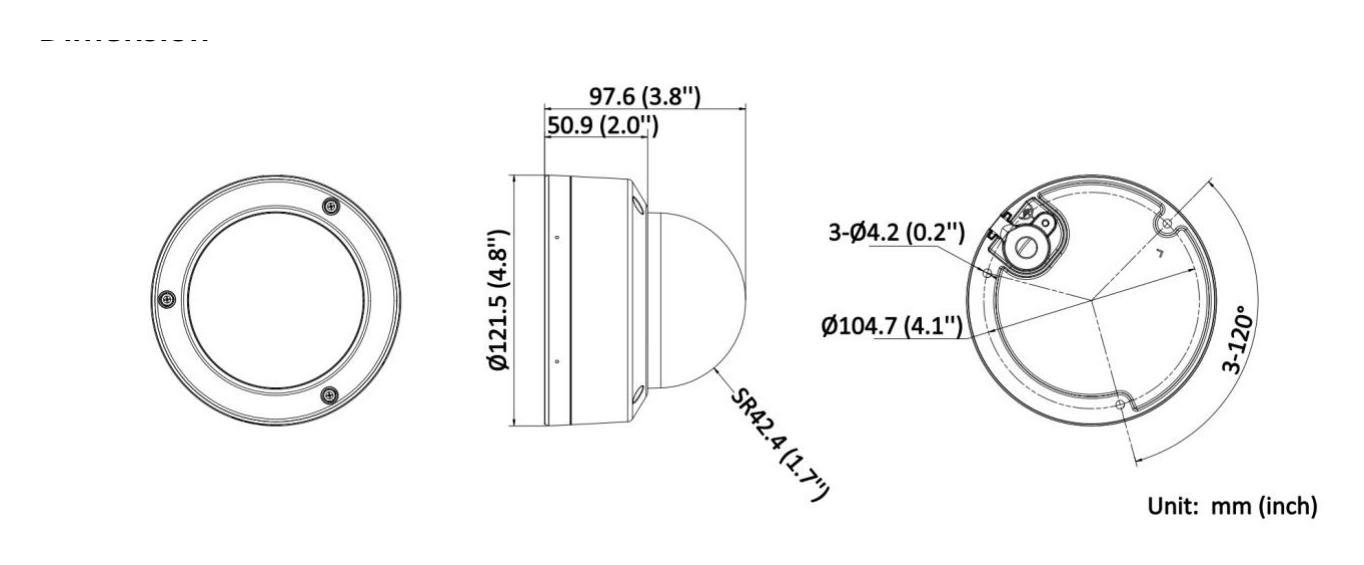

外形尺寸

Ø 121.5 mm × 97.6 mm (Ø 4.8" × 3.8")｜重量 Approx. 500 g (1.1 lb.)｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DS-2CD3186G2-IS 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DS-2CD3186G2-IS Hikvision 8 MP AcuSense IR Fixed Dome Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

牙科診所

診症室私隱合規佈點、X光及貴重牙科儀器防盜，配合預約系統減少候診糾紛。

WhatsApp 查詢 →

常見問題

DS-2CD3186G2-IS 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DS-2CD3186G2-IS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過官方 App 可隨時遠程實時監看及回放，無需固定 IP。

DS-2CD3186G2-IS 定 DS-2XE6885G0-ILZHS 邊個好？

兩者主要規格分別：影像感測器方面，DS-2CD3186G2-IS 係 1/1.8" Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；快門速度方面，DS-2CD3186G2-IS 係 1/3 s to 1/100,000 s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s；鏡頭接口方面，DS-2CD3186G2-IS 係 M12，DS-2XE6885G0-ILZHS 係 Integrated。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
