| 影像感測器 | 1/3" Progressive Scan CMOS Min. Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR Illumination Max. 2688 × 1520 |
|---|
| Camera | Resolution |
|---|
| 日夜切換 | IR cut filter Angle Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° Adjustment |
|---|
| 快門速度 | 1/3 s to 1/100,000 s 2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122° Focal Length 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° & FOV 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 64° |
|---|
| 鏡頭 | Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional |
|---|
| 光圈 | F1.4 |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m |
|---|
| DORI 偵測距離 | DORI 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m Supplement Up to 40 m Light Range |
|---|
| 紅外波長 | 850 nm Smart |
|---|
| Supplement | Yes Light Supplement Light Type Memory: 60 MB, Open Smart RAM: 400 MB, Resources eMMC: 2 GB Computing 1.5 TOPS Power |
|---|
| HEOP | Open HEOP 2.0 OpendevSDK Capability Deep Learning Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX Structure Programming C,C++ Language 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Main Stream 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) Sub-Stream 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream 60 Hz: 10 fps (1920 × 1080, 12 |
|---|
| Video | Sub-stream: H.265/H.264/MJPEG, |
|---|
| Compression | Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile Bit Rate CBR,VBR Control Scalable Video H.264 and H.265 encoding Coding (SVC) Region of 5 fixed regions for main stream and sub-stream Interest (ROI) Target Yes Cropping |
|---|
| e-PTZ | Support Patrol and Auto Tracking settings G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Compression 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps Audio Bit Rate (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Sampling Rate Yes Noise Filtering TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, |
|---|
| 網絡協議 | 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP Simultaneous Up to 6 channels Live View |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users User/Host 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication |
|---|
| 安全 | for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection Storage are supported. |
|---|
| 客戶端 | iVMS-4200,Hik-Connect,Hik-Central |
|---|
| 瀏覽器 | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| Parameters | Yes Switch |
|---|
| Image | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client |
|---|
| Settings | software or web browser Day/Night Day,Night,Auto,Schedule |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 接口 | On-Board |
|---|
| Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in -U: Yes |
|---|
| 重設鍵 | Yes |
|---|
| 警報 | 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| 電源輸出 | 12 VDC, max. 100 mA Motion detection (support alarm triggering by specified target types (human and Basic Event vehicle)),video tampering alarm,exception |
|---|
| Event | Smart Event Scene change detection, audio exception detection, defocus detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm Linkage output,trigger recording,trigger capture,audible warning |
|---|
| 人臉抓拍 | Yes |
|---|
| Deep | People Yes |
|---|
| Learning | Counting |
|---|
| Function | Perimeter Line crossing, intrusion, region entrance, region exiting |
|---|
| 防護等級 | Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 0.58 A, max. 7 W,Ø 5.5 mm coaxial power plug,reverse polarity protection, Power PoE: IEEE 802.3af, Class 3, max. 8.5 W |
|---|
| 材質 | Metal except for trim ring |
|---|

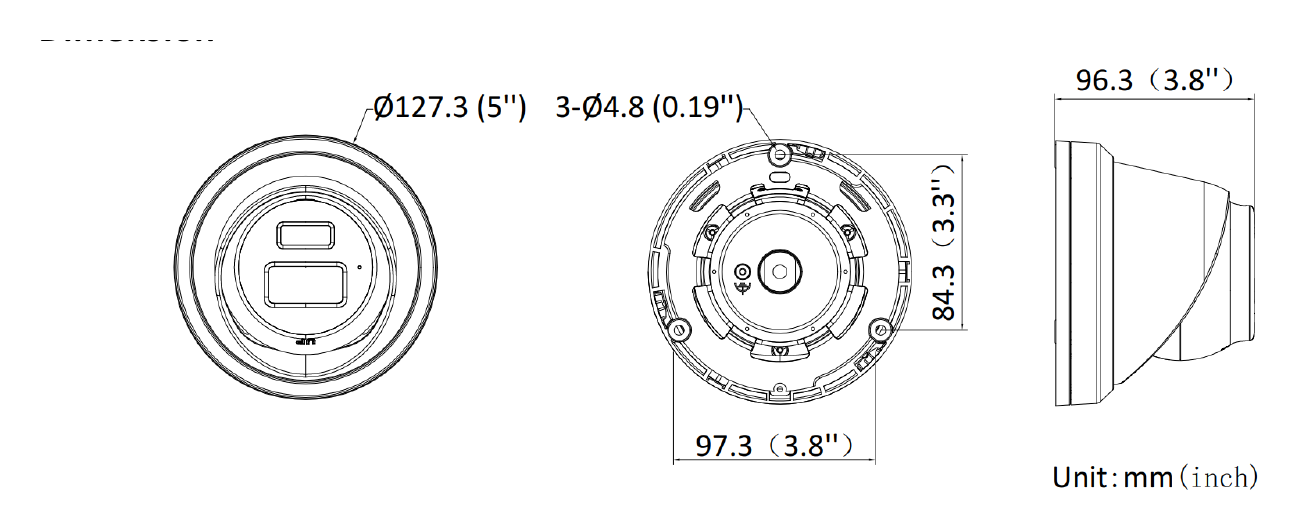

| General | Dimension Ø 127.3 mm × 96.3 mm (Ø 5" × 3.8") Package 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
|---|
