| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° |
|---|
| 鏡頭接口 | M16 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.0 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ 2.8mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 40 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm Memory: 40 MB, |
|---|
| Open Resources | Smart RAM: 350 MB, eMMC: 2 GB |
|---|
| Computing Power | 1.5 TOPS |
|---|
| Open Capability | HEOP 2.0 OpendevSDK |
|---|
| Deep Learning Structure | Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX |
|---|
| Programming Language | C, C++ 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|
| 主碼流 | 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 |
|---|
| 視頻壓縮 | Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, *Third stream and fourth stream are supported under certain settings. |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 5 fixed regions for main stream and sub-stream |
|---|
| Target Cropping | Yes |
|---|
| 音訊壓縮 | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
|---|
| Audio Type | Mono sound -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | -U: Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, |
|---|
| 網絡協議 | IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 130 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR, Defog |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 內置麥克風 | -U: Yes 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| 重設鍵 | Yes |
|---|
| 電源輸出 | 12 VDC, max. 100 mA Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audib |
|---|
| 人臉抓拍 | Yes |
|---|
| People Counting | Yes Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 周界防護 | detection, Support alarm triggered by specified target types (human and vehicle) 12 VDC ± 25%, 0.66 A, max. 8 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 9 W |
|---|
| 材質 | Cover: Metal, main body: Metal |
|---|

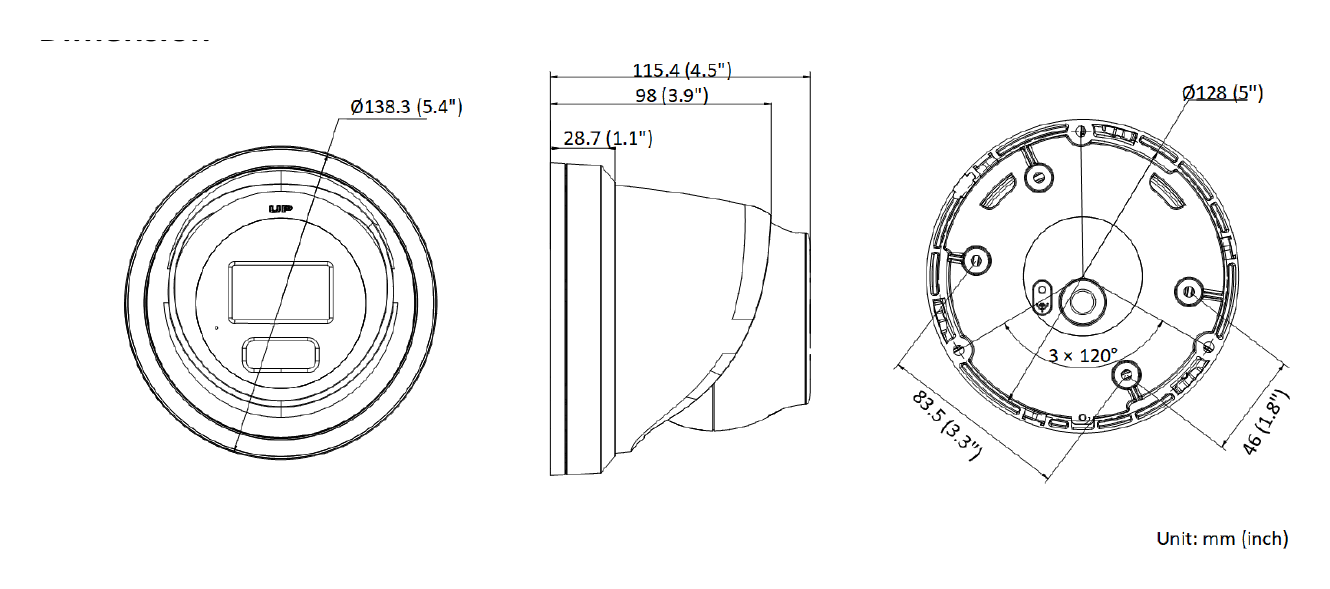

| 尺寸 | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
|---|
| 包裝尺寸 | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
|---|
| 重量 | Approx. 770 g (1.7 lb.) |
|---|
| 連包裝重量 | Approx. 1040 g (2.3 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portu |
|---|
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
