| 影像感測器 | 1/3" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm 2.7 to 13.5 mm: horizontal FOV 102.4°to 31.2°, vertical FOV 54.7° to 17.6°, diagonal FOV 122.1°to 35.8° |
|---|
| 鏡頭接口 | Ø 14 |
|---|
| 光圈類型 | Auto-iris |
|---|
| 光圈 | F1.6 2.8 to 12 mm: D: 64 m to 198 m, O: 25.4 m to 78.6 m, R: 12.8 m to 39.6 m, I: 6.4 m to 19.8 m |
|---|
| 補光距離 | Up to 60 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|---|
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
|---|
| Fourth Stream | 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings. Sub-stream: H.265/H.264/MJPEG, |
|---|
| 視頻壓縮 | Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings. |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 碼率控制 | CBR, VBR |
|---|
| 感興趣區域 ROI | 5 fixed regions for main stream and sub-stream |
|---|
| Target Cropping | Yes |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, |
|---|
| 網絡協議 | SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Password protection, complicated password, HTTPS encryption, IP address filter, |
|---|
| 安全 | Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. Plug-in required live view: IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
|---|
| 圖像參數切換 | Yes |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 圖像設定 | Rotate mode |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 8 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone: Arrayed dual -microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input |
|---|
| Audio | impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
|---|
| Built-in Speaker | 1 built-in speaker, Power: 2 W, max.sound pressure level: 10 cm: 120 dB. |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection, video quality diagnosis Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger |
|---|
| 人臉抓拍 | Yes Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 1.21 A, max. 14.5 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3at, Class 4, max. 18 W |
|---|
| 材質 | Aluminum alloy body |
|---|

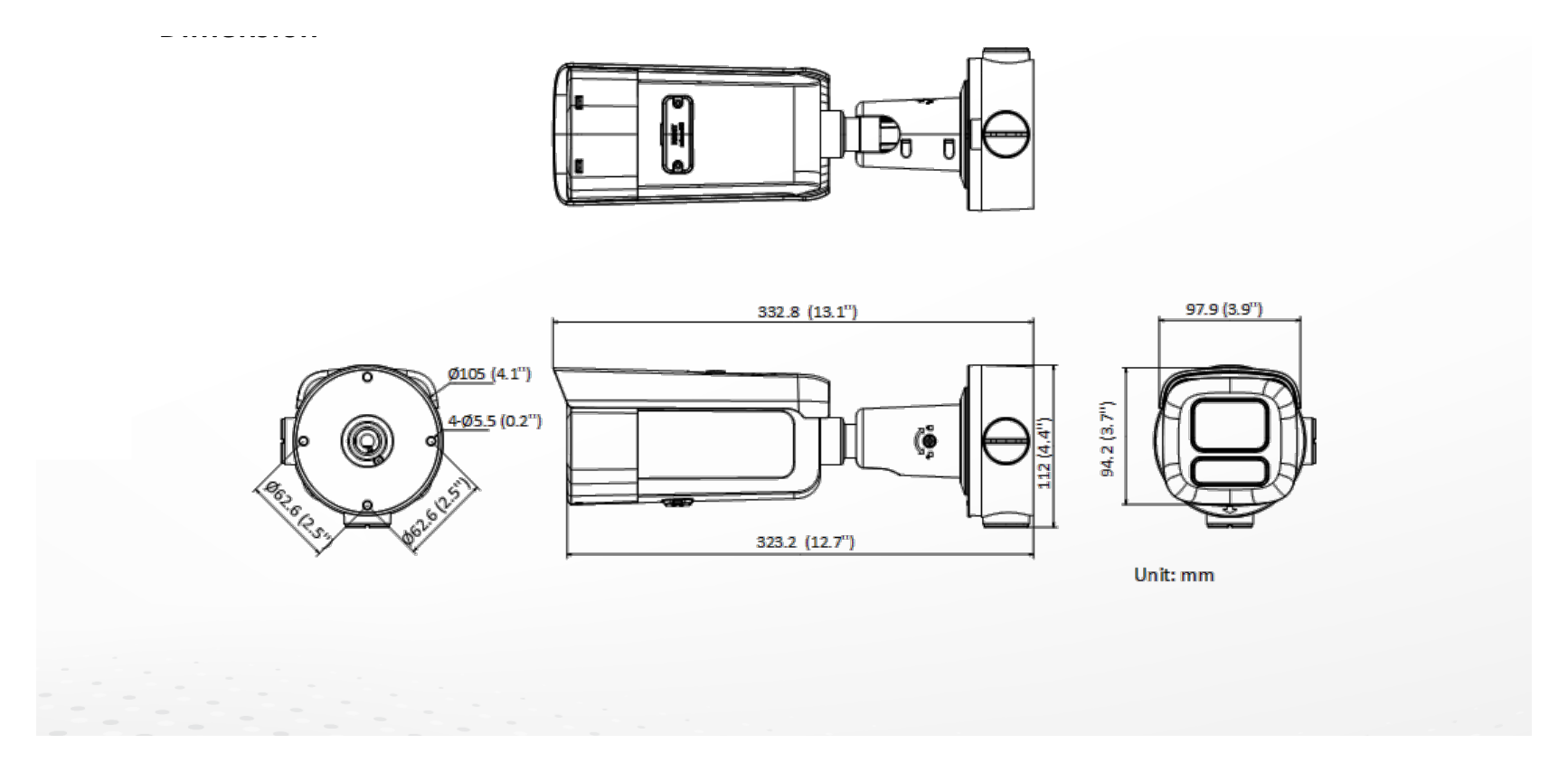

| 尺寸 | 332.8 mm × 97.9 mm × 94.2 mm (13.1" × 3.9" × 3.7") |
|---|
| 包裝尺寸 | 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
|---|
| 重量 | Approx. 1531 g (3.4 lb.) |
|---|
| 連包裝重量 | Approx. 2000 g (4.4 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional |
|---|
| 一般功能 | Heartbeat, mirror, flash log, password reset via email , pixel counter, anti-banding |
|---|
| Flashing Light | White Light CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, |
|---|
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
|---|
