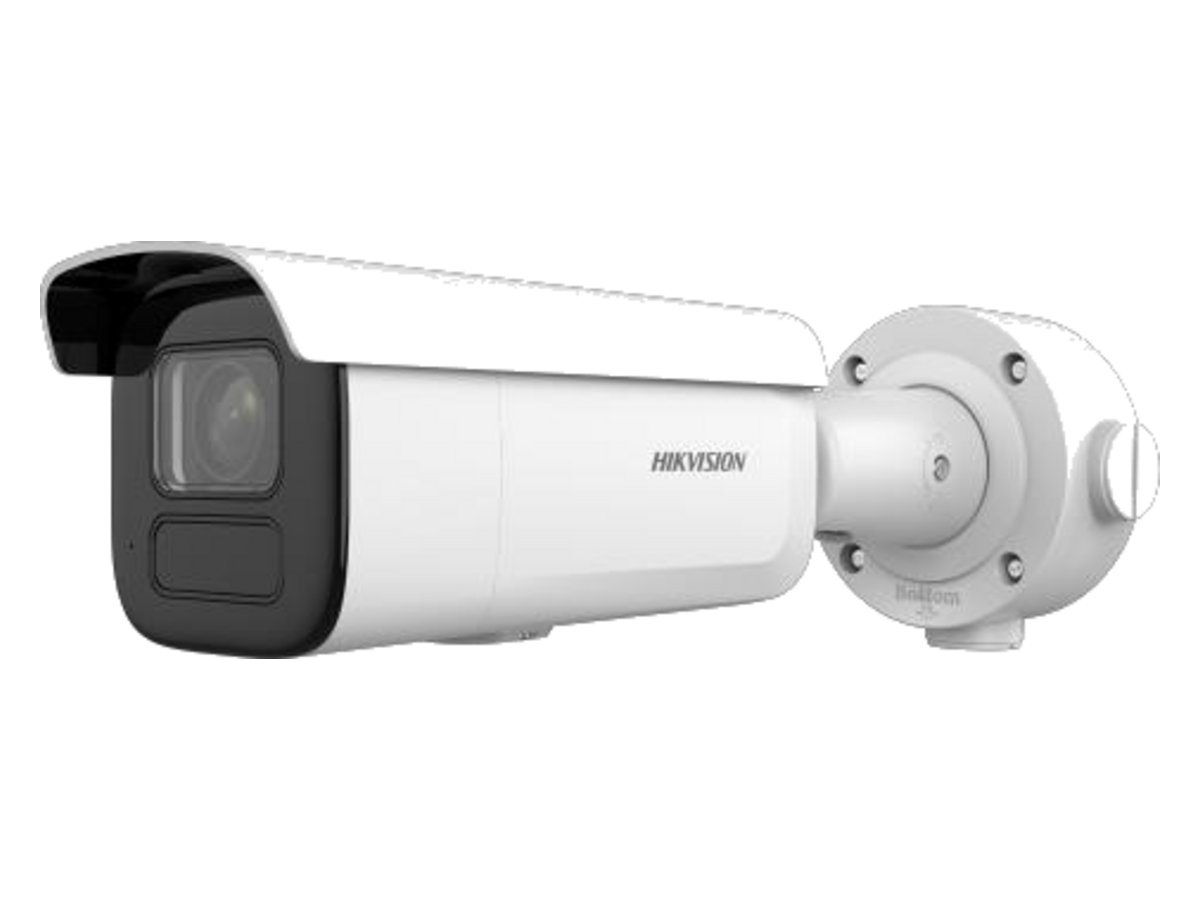

Hikvision DS-2CD3646G2T/P-IZSY 為4 MP ANPR IR Varifocal Bullet Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD3646G2T/P-IZSY 香港價格連安裝報價。
| 影像感測器 | 1/3" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 2688 × 1520 |
| 最低照度 | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| 快門速度 | 1/3 s to 1/100,000 s |
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| 日夜切換 | IR cut filter |
| 鏡頭類型 | Varifocal lens, motorized lens, 2.7 to 13.5 mm 2.7 to 13.5 mm, horizontal FOV 107.6° to 32.9°, vertical FOV56° to 18.5°, diagonal FOV 130.9° to 37.8° |
| 鏡頭接口 | Ø 14 |
| 光圈類型 | Auto-iris |
| 光圈 | F1.6 |
| DORI 偵測距離 | 2.7 to 13.5 mm: D: 64 to 187 m, O: 25 to 74 m, R: 12 to 37 m, I: 6 to 18 m |
| 補光類型 | IR |
| 補光距離 | Up to 60 m |
| 智能補光 | Yes |
| 紅外波長 | 850 nm Memory: 60 MB, |
| Open Resources | Smart RAM: 400 MB, eMMC: 2 GB |
| Computing Power | 1.5 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX |
| Programming Language | C, C++ 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1 |
| 視頻碼率 | 32 Kbps to 8 Mbps |
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR, VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| Target Cropping | Yes |
| 感興趣區域 ROI | 5 fixed regions for main stream and sub-stream |
| e-PTZ | Support Patrol and Auto Tracking settings |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, |
| 網絡協議 | SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
| 同時取流 | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11, |
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| 日夜模式 | Day, Night, Auto, Schedule |
| 寬動態 WDR | 120 dB |
| 影像增強 | BLC, HLC, 3D DNR, Defog |
| 信噪比 SNR | ≥ 52 dB |
| 隱私遮蔽 | 4 programmable polygon privacy masks |
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| 警報 | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| 重設鍵 | Yes 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| 電源輸出 | 12 VDC, max. 100 mA |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit) Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| 智能事件 | Scene change detection, audio exception detection, defocus detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
| 人臉抓拍 | Yes |
| People Counting | Yes Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Blocklist and allowlist: up to 10,000 records |
| Road Traffic and Vehicle | Support license plate recognition |
| Detection | License plate recognition rate ≥95 Support license plate recognition of motorcycles (only in checkpoint scenario) 12 VDC ± 25%, 1.08 A, max. 13 W, Ø 5.5 mm coaxial power plug, reverse polarity |
| 供電 | protection, PoE: IEEE 802.3at, Class 4, max. 15 W |
| 尺寸 | Ø 105 mm × 332.8 mm (Ø 4.1" × 13.1") |
| 包裝尺寸 | 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| 重量 | Approx. 1485 g (3.27 lb.) |
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Model with "(ef)": approx. 2464g (5.43 lb.), Model without "(ef)": approx. 2304 g (5.08 lb.) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| 一般功能 | Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portu |
| EMC | RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, |
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| 防護等級 | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

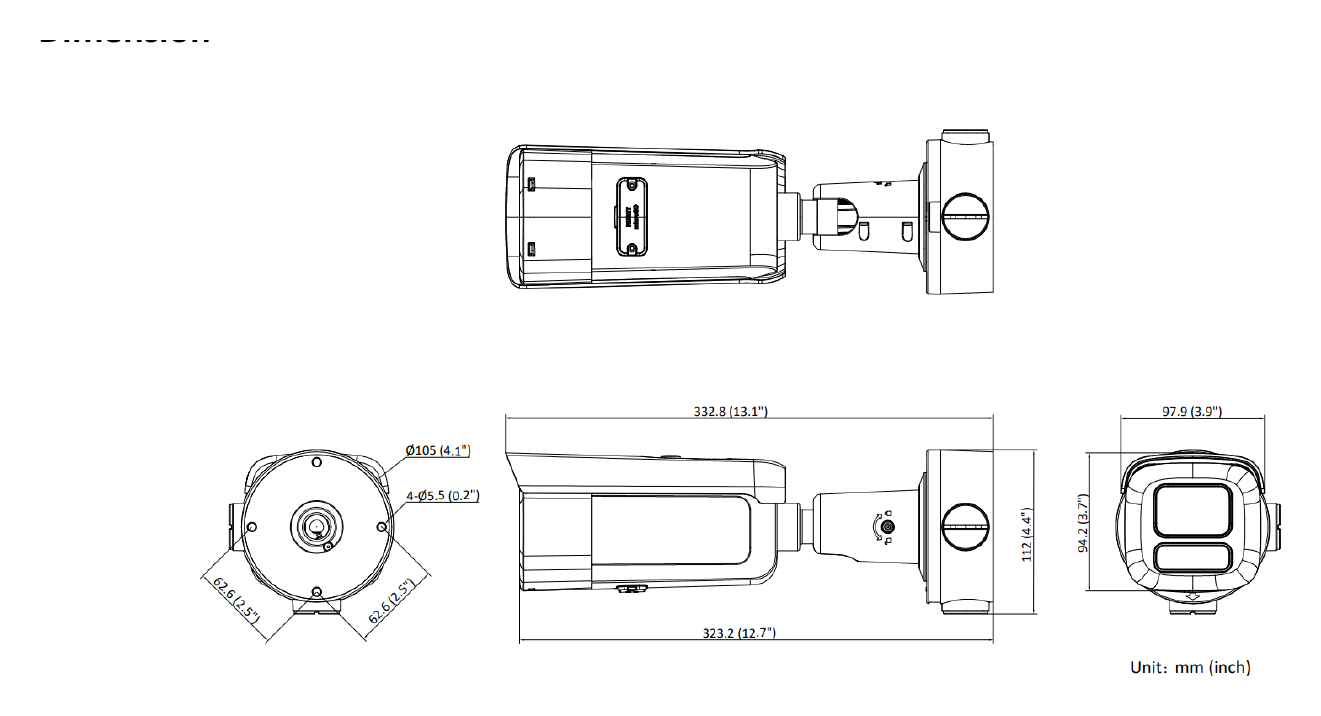

Ø 105 mm × 332.8 mm (Ø 4.1" × 13.1")｜重量 Approx. 1485 g (3.27 lb.)｜Unit: mm
