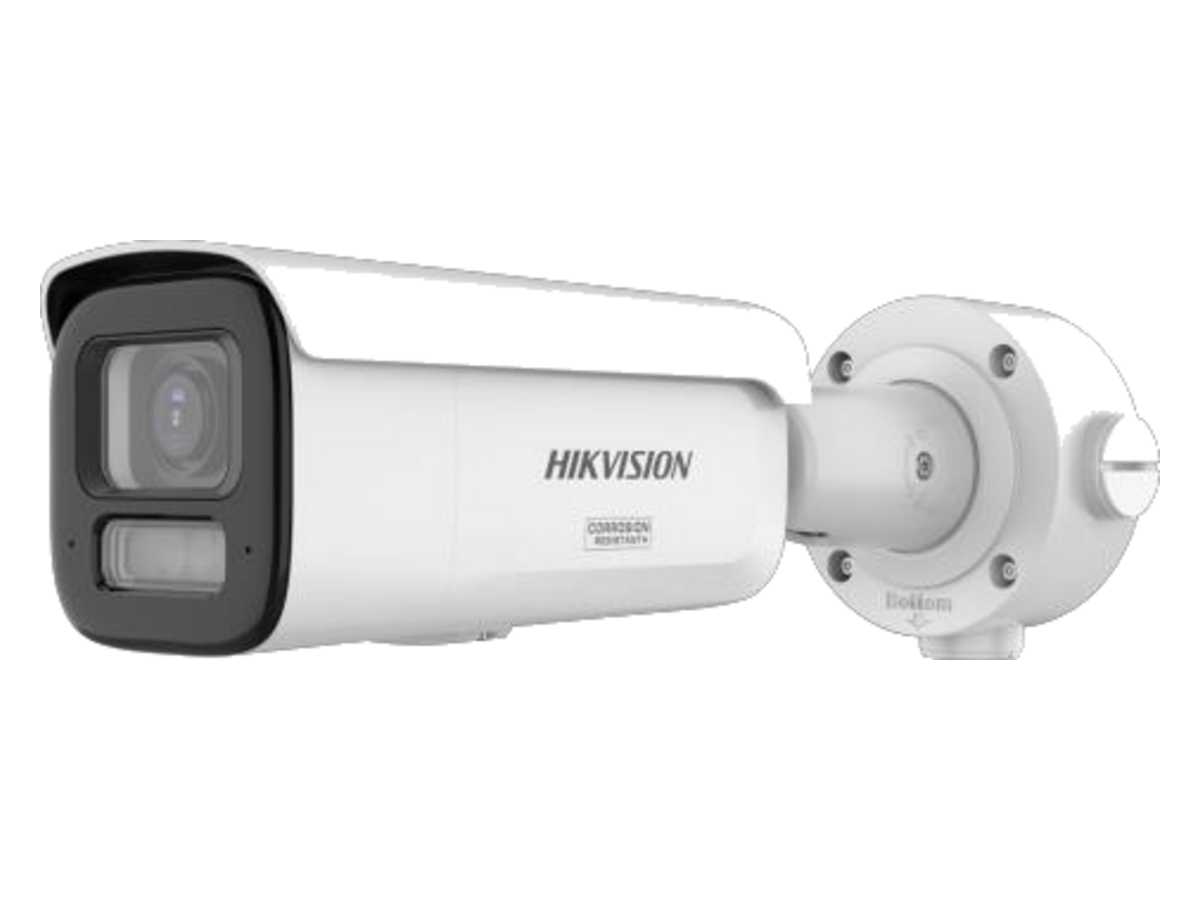

Hikvision DS-2CD3646G3T-LIZSUY 為4 MP Smart Hybrid Light Varifocal Bullet Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD3646G3T-LIZSUY 香港價格連安裝報價。
| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 2688 × 1520 |
| 最低照度 | Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light |
| 快門速度 | 1 s to 1/100,000 s |
| 日夜切換 | IR cut filter |
| 角度調節 | Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| 鏡頭類型 | Varifocal lens, motorized lens, 2.7 to 13.5 mm 2.7 to 13.5 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3°to 48.1° |
| 鏡頭接口 | Integrated |
| 光圈類型 | Auto-iris |
| 光圈 | F1.2 |
| Depth of Field | 1 m to ∞ Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m |
| 補光類型 | IR, White Light |
| 補光距離 | Up to 60 m |
| 智能補光 | Yes |
| 紅外波長 | 850 nm Memory: 60 MB, |
| Open Resources | Smart RAM: 450 MB, eMMC: 2 GB |
| Computing Power | 1.5 TOPS |
| Open Capability | HEOP 2.0 OpendevSDK |
| Deep Learning Structure | Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX |
| Programming Language | C, C++ 50 Hz: 25 fps (2688 × 1520) 60 Hz: 30 fps (2688 × 1520) 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| 第三碼流 | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| Fourth Stream | 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings. Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, |
| 視頻碼率 | 32 Kbps to 8 Mbps |
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR, VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 5 fixed regions for main stream and sub-stream |
| e-PTZ | Support Patrol and Auto Tracking settings |
| Audio Type | Mono sound |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| 環境噪音過濾 | Yes |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, |
| 網絡協議 | SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| 同時取流 | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| 網絡儲存 | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+ |
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| 日夜模式 | Day, Night, Auto, Schedule |
| 影像增強 | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| 信噪比 SNR | ≥ 52 dB |
| 寬動態 WDR | 130 dB |
| 防抖 | EIS |
| 隱私遮蔽 | 8 programmable polygon privacy masks |
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB Built-in Microphone: Arrayed dual -microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input |
| Audio | impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| 警報 | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| 重設鍵 | Yes |
| 電源輸出 | 12 VDC, max. 100 mA Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| 智能事件 | Scene change detection, audio exception detection, defocus detection Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning |
| 人臉抓拍 | Yes |
| People Counting | Yes Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) 12 VDC ± 25%, 1.08 A, max. 13 W, Ø 5.5 mm coaxial power plug, reverse polarity |
| 供電 | protection, PoE: PoE(IEEE 802.3at class 4) ，MAX：15W |
| 材質 | Front cover: Metal, body: Metal, bracket: Metal |
| 尺寸 | 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8") |
| 包裝尺寸 | 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
| 重量 | Approx. 1540 g (3.4 lb.) |
| 連包裝重量 | Approx. 2311 g (5.1 lb.) |
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| 一般功能 | Heartbeat, mirror, flash log, password reset via email , pixel counter, anti-banding 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Port |
| Environment | CE-RoHS: 2011/65/EU |
| 防護等級 | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

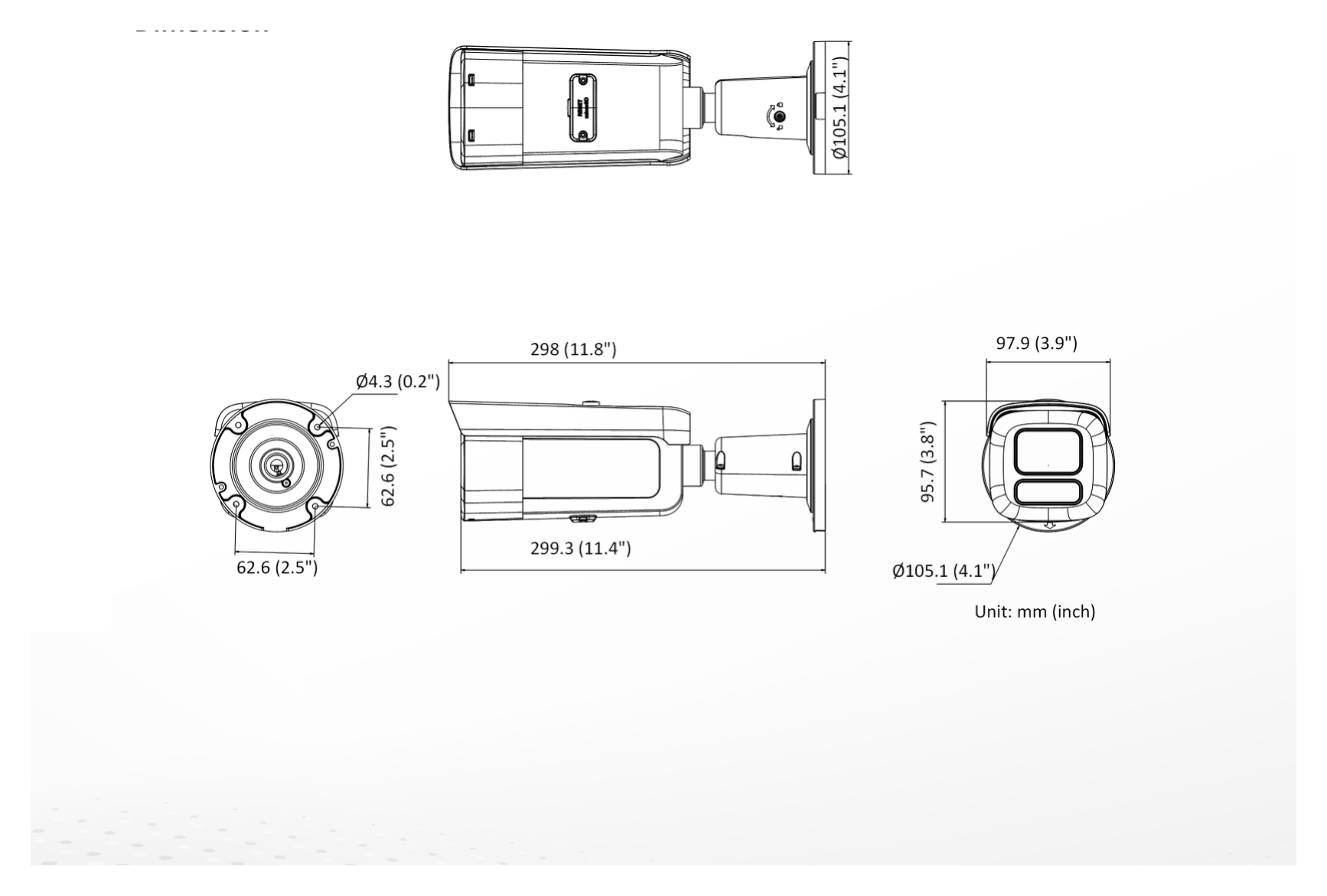

298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")｜重量 Approx. 1540 g (3.4 lb.)｜Unit: mm
DS-2CD3646G3T-LIZSUY Hikvision 4 MP Smart Hybrid Light Varifocal Bullet Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD3646G3T-LIZSUY 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2CD3646G3T-LIZSUY 係 1/1.8" Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；最大解像度方面，DS-2CD3646G3T-LIZSUY 係 2688 × 1520，DS-2XE6885G0-ILZHS 係 3840 × 2160；視頻碼率方面，DS-2CD3646G3T-LIZSUY 係 32 Kbps to 8 Mbps，DS-2XE6885G0-ILZHS 係 32 Kbps to 16 Mbps。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD3646G3T-LIZSUY 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2CD3646G3T-LIZSUY Hikvision 4 MP Smart Hybrid Light Varifocal Bullet Network Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2CD3646G3T-LIZSUY 香港價格連安裝報價。
DS-2CD3646G3T-LIZSUY Hikvision 4 MP Smart Hybrid Light Varifocal Bullet Network Camera適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
