| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 |
|---|
| 最低照度 | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional 2.7 to 13.5 mm: horizontal FOV 108°to 46°, vertical FOV 58° to 26°, diagonal FOV 127° |
|---|
| 鏡頭及視場角 | to 52°; 7 to 35 mm: horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17° |
|---|
| 鏡頭接口 | 2.7 to 13.5 mm: Ø 14; 7 to 35 mm: Integrated |
|---|
| 對焦 | Auto,Semi-auto,Manual |
|---|
| 光圈類型 | Auto-iris |
|---|
| 光圈 | 2.7 to 13.5 mm: F1.6; 7 to 35 mm: F1.6 2.7 to 13.5 mm: D: 86 to 192 m, O: 34 to 76 m, R: 17 to 38 m, I: 8 to 19 m 7 to 35 mm: D: 218 to 580 m, O: 86 to 230 m, R: 43 to 116 m, I: 21 to 58 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | 2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm Memory: 40 MB, |
|---|
| Open Resources | Smart RAM: 350 MB, eMMC: 2 GB |
|---|
| Computing Power | 1.5 TOPS |
|---|
| Open Capability | HEOP 2.0 OpendevSDK |
|---|
| Deep Learning Structure | Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX |
|---|
| Programming Language | C,C++ 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|
| 主碼流 | 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 5 fixed regions for main stream and sub-stream |
|---|
| Target Cropping | Yes |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, |
|---|
| 網絡協議 | IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200,Hik-Connect,Hik-Central Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR,Defog |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A) |
|---|
| 重設鍵 | Yes |
|---|
| 電源輸出 | 12 VDC, max. 100 mA Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warni |
|---|
| 人臉抓拍 | Yes |
|---|
| People Counting | Yes Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle) 12 VDC ± 25%, 1.08 A, max. 13 W,Ø 5.5 mm coaxial power plug,reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3at, Class 4, max. 15 W |
|---|
| 材質 | Aluminum alloy body |
|---|

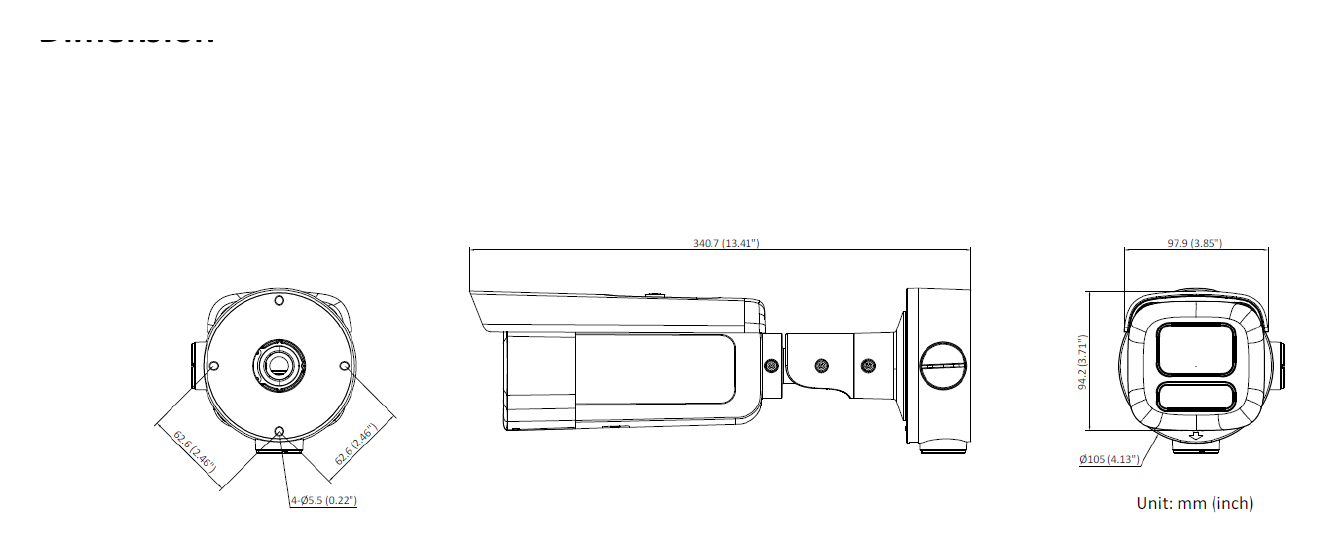

| 尺寸 | Ø 105 mm × 340.7 mm (Ø 4.1" × 13.41") |
|---|
| 包裝尺寸 | 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
|---|
| 重量 | Approx. 1475 g (3.0 lb.) |
|---|
| 連包裝重量 | Approx. 2276 g (4.6 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese |
|---|
| EMC | 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
|---|
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
|---|
