| 影像感測器 | 1/3" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8, 4, and 6 mm optional 2.8 mm, horizontal FOV 101°, vertical FOV 54°, diagonal FOV 122° |
|---|
| 鏡頭及視場角 | 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.4 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m |
|---|
| DORI 偵測距離 | 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 126 m, O: 50 m, R: 25 m, I: 12 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 90 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm Memory: 60 MB, |
|---|
| Open Resources | Smart RAM: 400 MB, eMMC: 2 GB |
|---|
| Computing Power | 1.5 TOPS |
|---|
| Open Capability | HEOP 2.0 OpendevSDK |
|---|
| Deep Learning Structure | Caffe,PyTorch,TensorFlow,PaddlePaddle, ONNX |
|---|
| Programming Language | C,C++ 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (12 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 5 fixed regions for main stream and sub-stream |
|---|
| Target Cropping | Yes |
|---|
| e-PTZ | Support Patrol and Auto Tracking settings |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, |
|---|
| 網絡協議 | IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200,Hik-Connect,Hik-Central Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR,Defog |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
|---|
| 重設鍵 | Yes |
|---|
| 電源輸出 | 12 VDC, max. 100 mA (supported by all power supply types) Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger r |
|---|
| 人臉抓拍 | Yes |
|---|
| People Counting | Yes 12 VDC ± 25%, 1.05 A, max. 12.6 W,Ø 5.5 mm coaxial power plug,reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3at, Class 4, max. 14.5 W |
|---|
| 材質 | Metal |
|---|

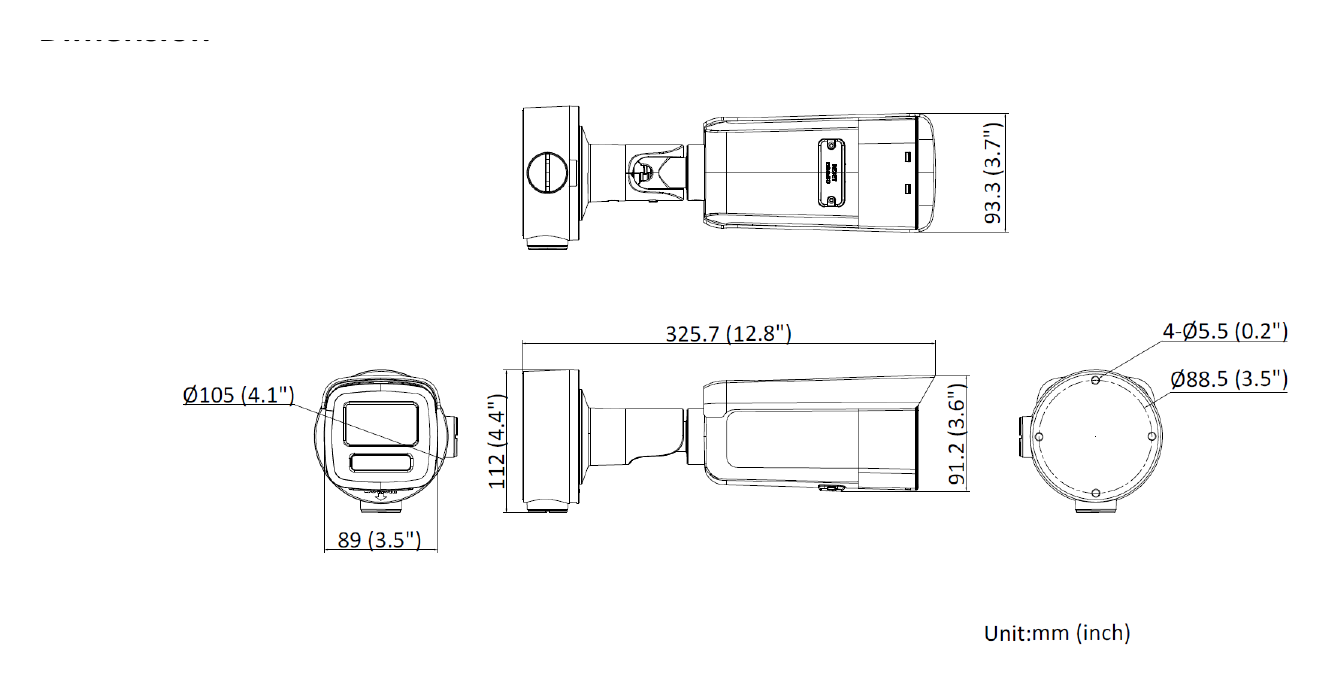

| 尺寸 | 325.7 mm × 93.3 mm × 91.2 mm (12.8" × 3.7" × 3.6") |
|---|
| 包裝尺寸 | 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") |
|---|
| 重量 | Approx. 1100 g (2.4 lb.) |
|---|
| 連包裝重量 | Approx. 1820 g (3.5 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese |
|---|
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
|---|
