| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 2560 |
|---|
| 最低照度 | 彩色: 0.01 Lux (F2.25, AGC ON)；黑白: 0.005 Lux (F2.25, AGC ON)；紅外開啟: 0 Lux |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 鏡頭類型 | Fixed focal lens, 1.16 mm |
|---|
| 鏡頭及視場角 | 1.16 mm, horizontal FOV 180°, vertical FOV 180° |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F2.25 |
|---|
| Depth of Field | 0.2 m to ∞ D: 23.2 m O: 9.2 m R: 4.6 m I: 2.3 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 15 m |
|---|
| Supplement Light Number | 3 |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm Memory: 60 MB, |
|---|
| Open Resources | Smart RAM: 800 MB, eMMC: 2 GB |
|---|
| Computing Power | 2 TOPS |
|---|
| Open Capability | HEOP 2.0 OpendevSDK |
|---|
| Deep Learning Structure | Caffe,TensorFlow,PyTorch |
|---|
| Programming Language | C,C++ 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280 180 Panorama View: 2048 × 1536, 1920 × 1440 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720 Panorama View: 2048 × 1536, 1920 × 1440 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1024 × 768 Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024 camera 02/camera 03/camera 04: 1024 × 768 4PTZ Fusion |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 4 fixed regions for each stream |
|---|
| Mount Type | Support wall/table/ceiling mounting |
|---|
| Decoding Mode | Support hardware decoding and software decoding Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4 |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, |
|---|
| 網絡協議 | NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
|---|
| 同時取流 | Up to 20 channels Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, |
|---|
| API | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR,Distortion Correction,Defog |
|---|
| 隱私遮蔽 | 8 programmable polygon privacy masks |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
|---|
| 內置麥克風 | Yes, 4 built-in microphones |
|---|
| Built-in Speaker | Yes, 1 built-in speaker 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | 1 Reset Key Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture Counts people entering, exiting and passing by separately (The data is stored in the flash.) Supports real-time uploading and uploading by stati |
|---|
| Queue Management | Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold A graphic description of visits (by |
|---|
| Heat Map | time) in a configured area., Two report types are available, space heat map and time heat map line chart. Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways 12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 12.5 W |
|---|
| 材質 | Metal |
|---|

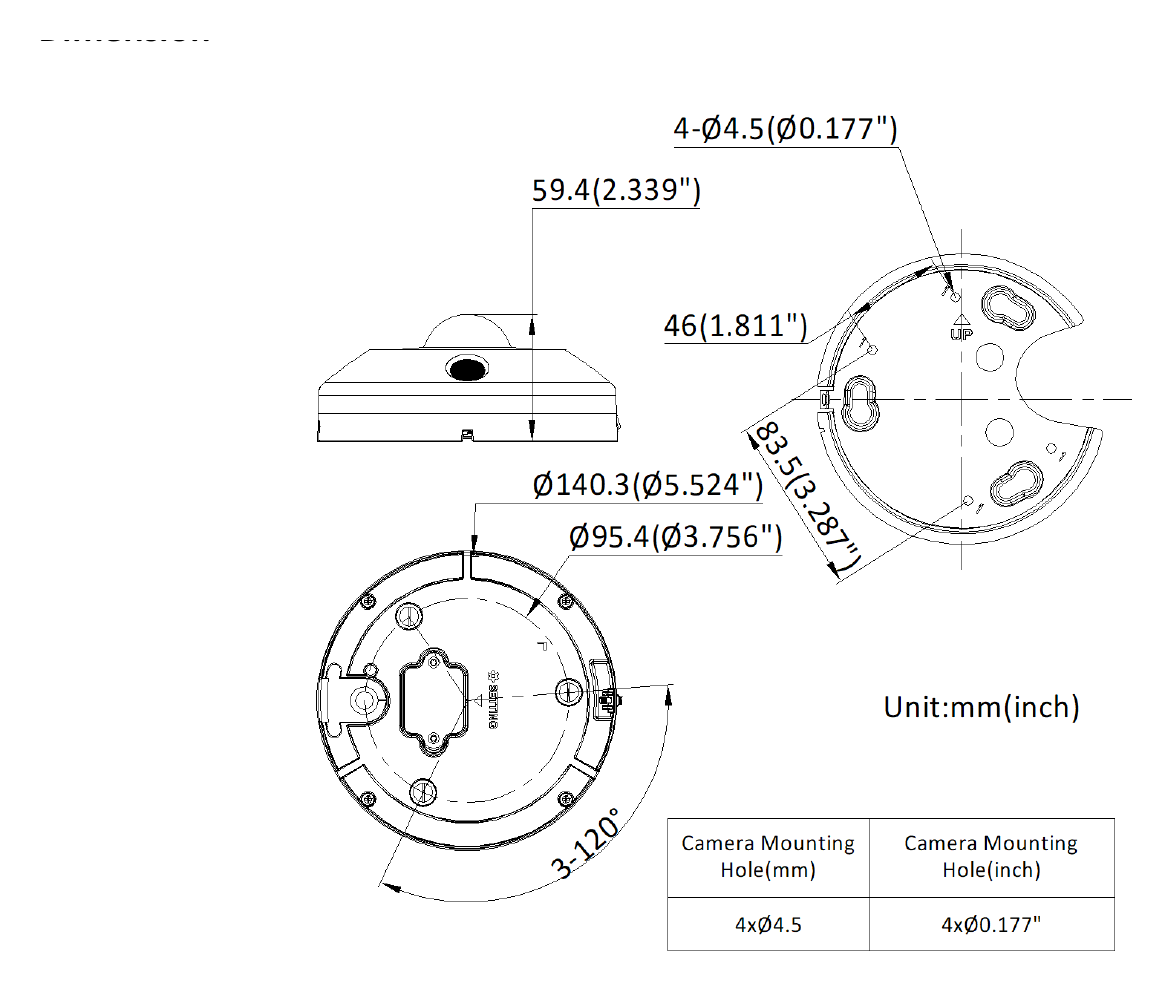

| 尺寸 | Ø 140.3 mm × 59.4 mm (Ø 5.5" × 2.3") |
|---|
| 包裝尺寸 | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
|---|
| 重量 | Approx. 715 g (1.58 lb.) |
|---|
| 連包裝重量 | Approx. 1206 g (2.66 lb.) |
|---|
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Sloven |
|---|
| Heater | Yes |
|---|
| Cable Length | 0.31 m (1.02 ft.) CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
|---|
