| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1920 Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 鏡頭類型 | Fixed focal lens, 2 mm Focal Length: 2mm： Fisheye mode: horizontal FOV 161°, vertical FOV 117°, diagonal FOV 180° |
|---|
| 鏡頭及視場角 | Distortion correction level 1: horizontal FOV 124°, vertical FOV 91°, diagonal FOV 132° Distortion correction level 2: horizonta l FOV 126°, vertical FOV 100°, diagonal FOV 132° Distortion correction level 3: horizontal FOV 123.5°, vertical FOV 96°, diagonal FOV 136° |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F2.0 D: 40 m O: 15m R: 8 m I: 4 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 20 m |
|---|
| 紅外波長 | 850 nm |
|---|
| 智能補光 | Yes 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60 Hz: 30 fps (2560 × 1920, 2048 × 1536, 1280 × 960) 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) Main stream: H.265/H.265+/H.264/H.264+, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 4 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ISAPI,SDK,ISUP,ONVIF (Profile S, Profile G) Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200,Hik-Connect Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+, Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| 圖像參數切換 | Yes saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR,Distortion Correction,Defog |
|---|
| 隱私遮蔽 | 8 programmable polygon privacy masks |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
|---|
| 內置麥克風 | Yes, 2 built-in microphones |
|---|
| Built-in Speaker | Yes, 1 built-in speaker |
|---|
| Audio | 2 inputs (line in), 1 output (line out) |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
|---|
| RS-485 | 2 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設鍵 | 1 Reset Key |
|---|
| 電源輸出 | 12 VDC, max. 200 mA Motion detection,video tampering alarm,alarm input and output,exception (HDD |
|---|
| 基本事件 | full,HDD error,network disconnected,IP address conflict,illegal login,abnormal restart),video quality diagnosis Linkage output,trigger recording,audible warning 12 VDC ± 20%, 1.04 A, max. 12.5 W,Three-core terminal block, |
|---|
| 供電 | PoE: IEEE 802.3af, Class 3, max. 12 W, 24 VAC ± 20%, 0.87 A, max. 12.2 W,reverse polarity protection |
|---|
| 材質 | Metal |
|---|

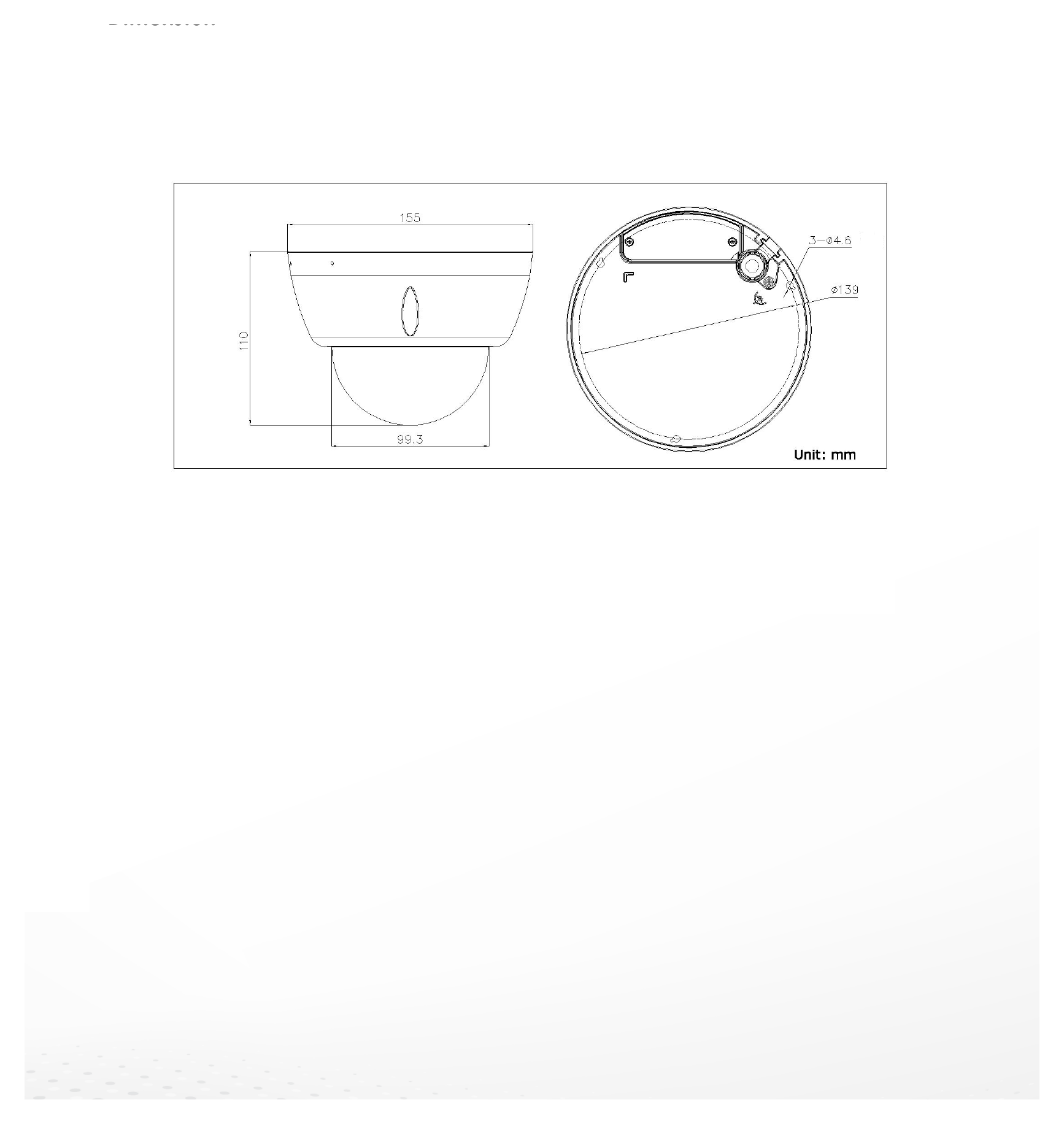

| 尺寸 | Ø 155 mm × 110 mm (Ø 6.1" × 4.33") |
|---|
| 包裝尺寸 | 244 mm × 174 mm × 173 mm (9.61" × 6.85" × 6.81") |
|---|
| 重量 | Approx. 890 g (1.96 lb.) |
|---|
| 連包裝重量 | Approx. 1330 g (2.93 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Sloven |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
|---|
