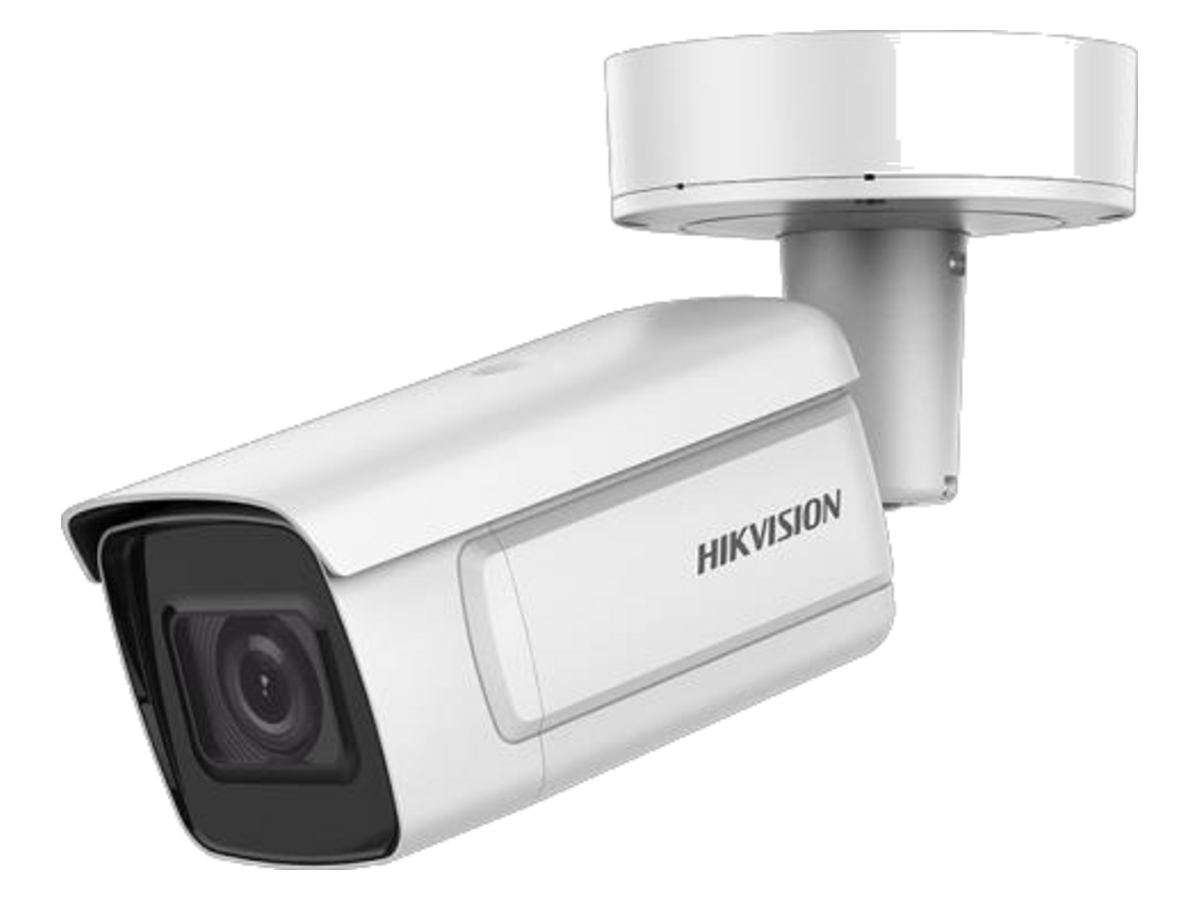

Hikvision DS-2CD7A26G0-IZHS 為2 MP IR Varifocal Bullet Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2CD7A26G0-IZHS 香港價格連安裝報價。
| 影像感測器 | 1/1.8ʺ Progressive Scan CMOS |
|---|---|
| 最低照度 | Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| 快門速度 | 1 s to 1/100,000 s |
| 慢快門 | Yes |
| 日夜切換 | IR cut filter |
| WDR | 140 dB |
| 角度調節 | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| 鏡頭類型 | Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional 2.8 to 12 mm: F1.2 to 2.5 Aperture 8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range |
| 對焦 | Auto, semi auto, manual |
| Auto-Iris | P-iris 2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° FOV 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3° |
| 鏡頭接口 | Integrated |
| IR Range | 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m |
| Wavelength | 850 nm |
| 最大解像度 | 1920 × 1080 |
| Video Stream | 5 defined streams and up to 5 custom stream 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) Main Stream 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (704 × 576, 640 × 480) Sub Stream 60Hz: 30fps (704 × 480, 640 × 480) 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) Third Stream 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) 50Hz: |
| 視頻壓縮 | Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream support |
| H.265 類型 | Main Profile |
| H.265+ | Main stream support |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| SVC 分級編碼 | H.264 and H.265 encoding Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images |
| 人臉抓拍 | Detectable face position: supports swing left and right from -90° to 90°,tilt up and down from -30° to 60° Line crossing, intrusion, region entrance, region exiting |
| 周界防護 | Support alarm triggering by specified target types (human and vehicle) Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc. Detects queuing-up people number, and waiting time of each person Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis |
| Statistics | Counting Trigger recording: memory card, network storage, pre-record and post-record |
| 聯動方式 | Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output (-S), Email Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream |
| 影像增強 | BLC, HLC, 3D DNR, Defog, EIS, distortion correction Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| 日夜模式 | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| 信噪比 SNR | ≥52dB microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Smooth Streaming | Yes Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1 |
| 同時取流 | Up to 20 channels |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE8+ |
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+ |
| 通訊接口 | 1 RJ45 10M/100M/1000M Ethernet port |
| 警報 | 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A) |
| Video Out | 1Vp-p composite output (75 Ω/CVBS), only for adjustment |
| Interface Style | Connector panel |
| 機身儲存 | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| 韌體版本 | 5.6.0 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening |
| 重設 | Reset via reset button on camera body, web browser and client software |
| Startup and Operating | -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) |
| Conditions | Humidity 95% or less (non-condensing) -30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing) 12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class -IZS: 12 VDC, 1.2 A, 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 -IZHS: 12 VDC, 1.4 A, 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4 |
| Heater | -H: yes |
| 材質 | Metal Camera: Φ144 × 347 mm (Φ5.7ʺ × 13.7ʺ) Dimensions With package: 405 × 190 × 180 mm (15.9ʺ × 7.5ʺ × 7.1ʺ) Camera: approx. 2.45 kg (5.40 lb.) Weight With package: approx. 2.7 kg (5.95 lb.) 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, |
| EMC | EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| 防護等級 | Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

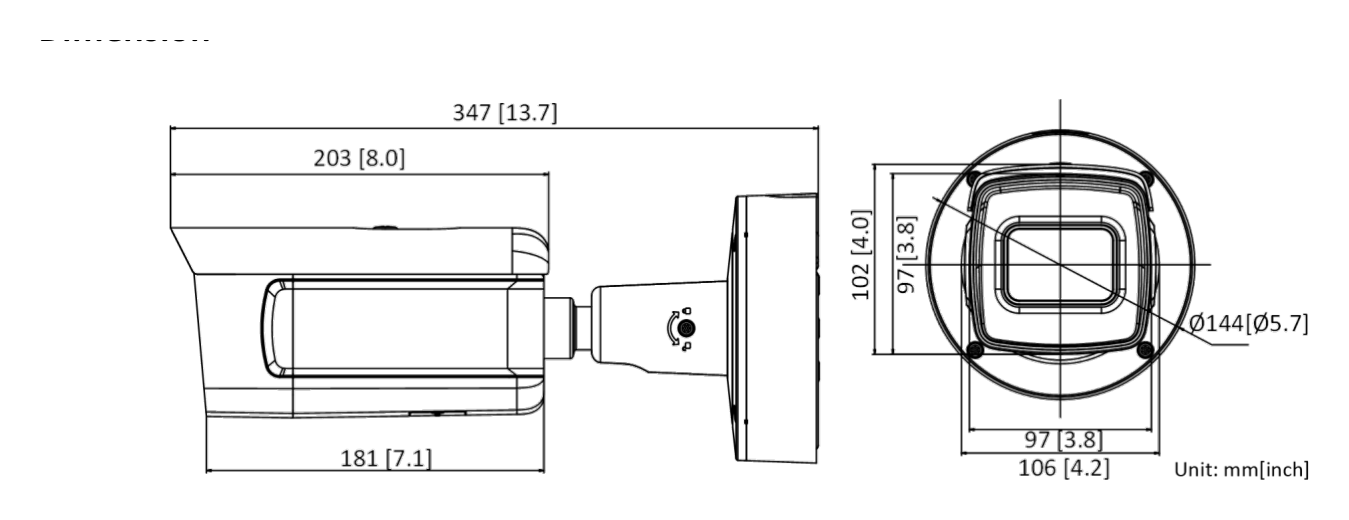

詳見圖示｜Unit: mm
DS-2CD7A26G0-IZHS Hikvision 2 MP IR Varifocal Bullet Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2CD7A26G0-IZHS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2CD7A26G0-IZHS 係 1/1.8ʺ Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；對焦方面，DS-2CD7A26G0-IZHS 係 Auto, semi auto, manual，DS-2XE6885G0-ILZHS 係 Auto；最大解像度方面，DS-2CD7A26G0-IZHS 係 1920 × 1080，DS-2XE6885G0-ILZHS 係 3840 × 2160。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2CD7A26G0-IZHS 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
