| 影像感測器 | 4K CMOS |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) |
|---|
| 最低照度 | 0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light |
|---|
| 快門速度 | PAL: 1/12.5 s to 1/50,000 s,NTSC: 1/15 s to 1/50,000 s |
|---|
| 日夜切換 | ICR |
|---|
| 角度調節 | Pan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360° |
|---|
| Signal System | PAL/NTSC |
|---|
| 鏡頭類型 | 2.8 mm, 3.6 mm, and 6 mm fixed lens 2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 134°; |
|---|
| 鏡頭及視場角 | 3.6 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°; 6 mm, horizontal FOV: 57°, vertical FOV: 30°, diagonal FOV: 67° |
|---|
| 鏡頭接口 | M12 |
|---|
| Pickup Distance | In a radius of up to 5 m |
|---|
| 數量 | 1 |
|---|
| 額定功率 | 2W |
|---|
| Speaker Range | In a radius of up to 5 m |
|---|
| 補光類型 | Smart, IR, White Light |
|---|
| 補光距離 | IR: Up to 80 m, White Light: Up to 80 m Anti-banding, Brightness, Sharpness, Smart IR TVI: 8 MP @12.5 fps/15 fps, 3K@20 fps/25 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|---|
| Day/Night Mode | Auto/Color |
|---|
| 寬動態 WDR | Digital WDR DWDR, BLC, HLC, Global |
|---|
| Noise Reduction | 2D DNR Auto, Manual |
|---|
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
|---|
| Video Output | 1 HD analog output 12 VDC ± 25%, max. 8.2 W, *You are recommended to use one power adapter to supply the power for one Power camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required. |
|---|
| 材質 | Main body: Metal; Enclosure: Plastic |
|---|

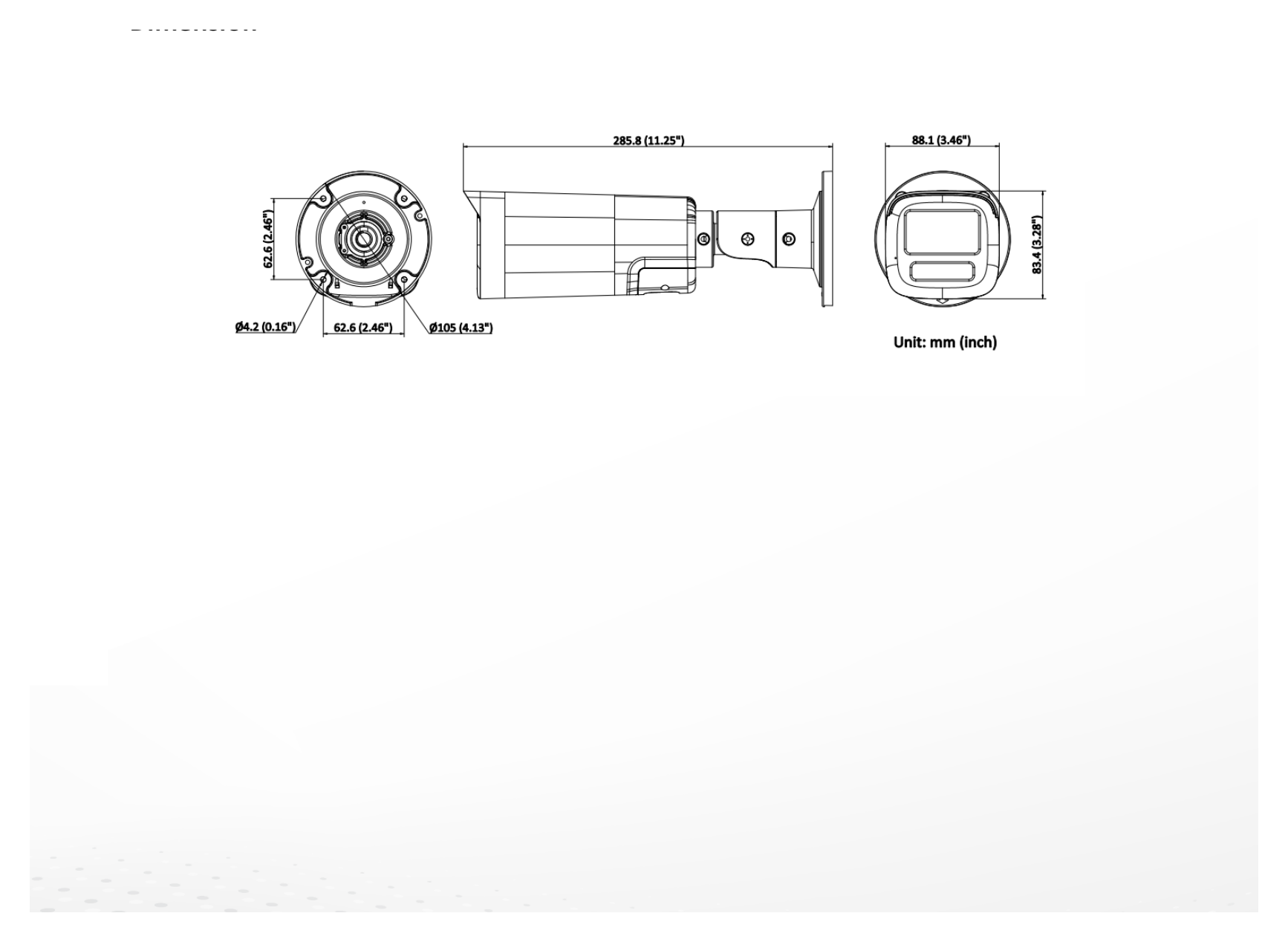

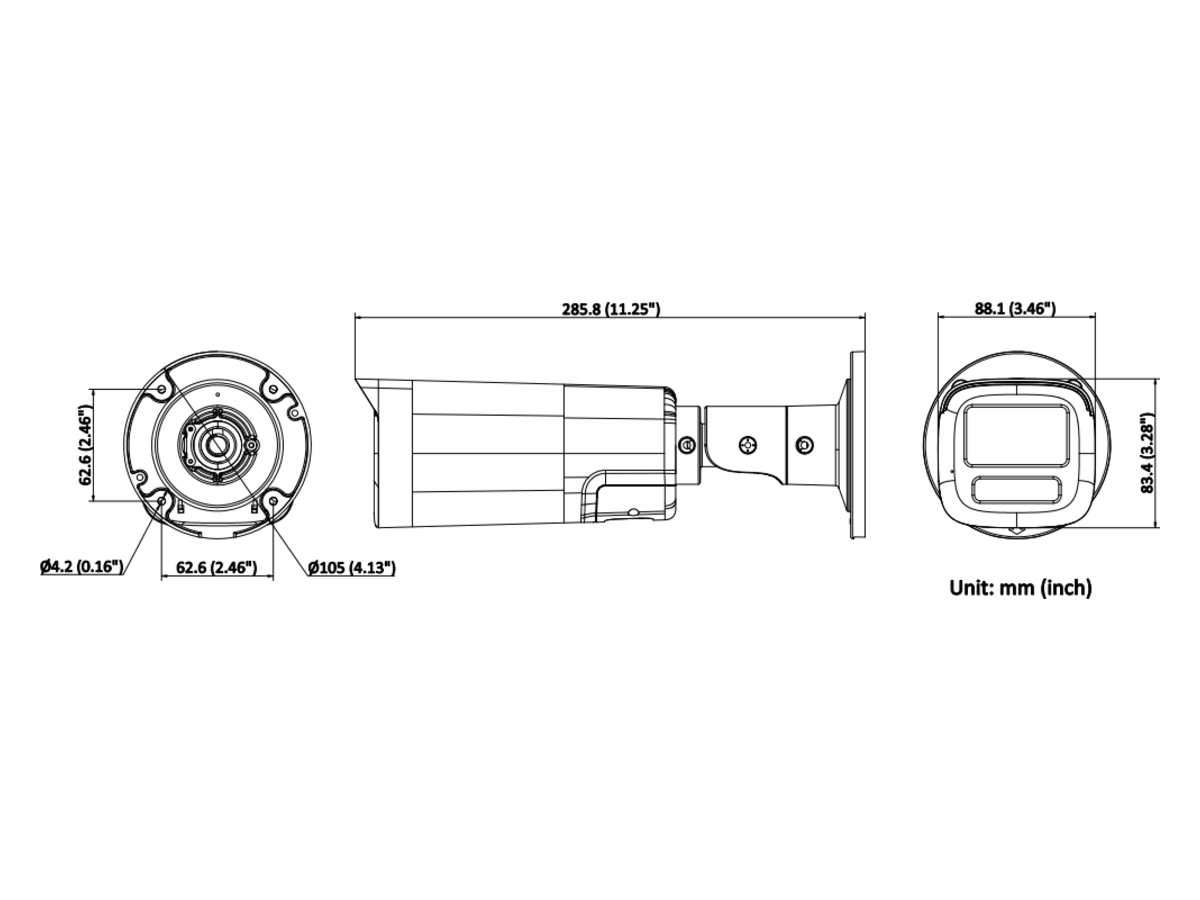

| 尺寸 | 285.8 mm × 88.1 mm × 83.4 mm (11.25" × 3.46" × 3.28") |
|---|
| 重量 | Approx. 665 g (1.46 lb.) |
|---|
| 工作環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
|---|
| Communication | HIKVISION-C |
|---|
| 語言 | English |
|---|
| 防護等級 | IP67 |
|---|
