0.005 Lux@(F1.6, AGC ON), 0 Lux with IR PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Day ＆ Night
IR cut filter
角度調節
Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
Signal System
PAL/NTSC
鏡頭類型
2.7 mm to 13.5 mm
Focal Length ＆ FOV
102° to 31°
鏡頭接口
Φ 14
圖像參數切換
STD/HIGH-SAT
圖像設定
Brightness, Sharpness, 3D DNR, Mirror, Smart IR PAL: 1080p@25fps NTSC: 1080p@30fps
Day/Night Mode
Auto/Color/BW (Black and White)
寬動態 WDR
≥ 120 dB
影像增強
Yes
AGC
High/Medium/Low
Video Output
TVI/AHD/CVI/CVBS
材質
Metal
尺寸

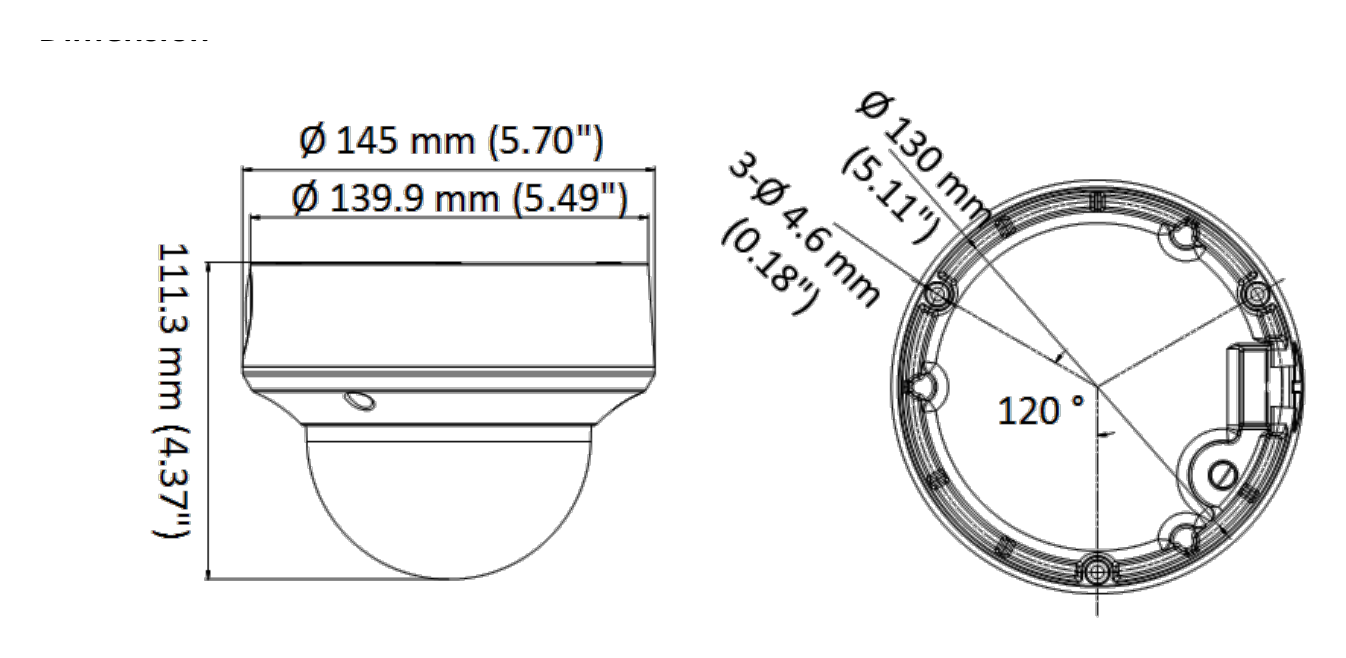

Ø 145 mm × 111.3 mm (5.70" × 4.37") Approx. 830 g (1.83 lb.) -A: Approx. 870 g (1.92 lb.)
工作環境
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
語言
English 12 VDC ±25% -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera. Max. 7.7 W -A: Max. 9.7 W
