| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1440 |
|---|
| 最低照度 | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR 2.8 mm 4 mm 4 mm: Horizontal field of view: 69.9°, vertical field of view: 34.9°, diagonal field of view: 84.9° 2.8 mm: Horizontal field of view: 91.1°, vertical field of view: 47.9°, diagonal field of view: 110.8° 4mm: F1.6 2.8mm: F2.0 |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | IR distance: up to 20 m, White light distance: up to 15 m |
|---|
| 紅外波長 | 850 nm |
|---|
| 水平旋轉 | 0° to 350° |
|---|
| 垂直旋轉 | 0° to 75° |
|---|
| 水平速度 | Up to 20°/s |
|---|
| 垂直速度 | Up to 10°/s 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (768 x 432) 60 Hz: 30 fps (768 x 432) |
|---|
| 視頻壓縮 | H.265, H.264, MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 音訊壓縮 | G.711ulaw/AAC-LC |
|---|
| 音訊碼率 | AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps; G.711ulaw: 64 Kbps |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 網絡協議 | IPv4, IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour |
|---|
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, Hik-Connect |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator, and user Password protection, complicated password, watermark, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, host authentication (MAC address), basic and digest authentication for HTTP/HTTPS Client Hik-Connect directly is not possible Wireless (Wi-Fi) |
|---|
| Wi-Fi Protocols | IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax |
|---|
| Frequency Range | 2.4 GHz to 2.4835 GHz |
|---|
| Channel Bandwidth | 20/40 MHz 802.11b: DBPSK, DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, 64QAM, Modulation 802.11n: BPSK, QPSK, 16QAM, 64QAM, 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
|---|
| Transfer Rate | 11b: up to 11 Mbps, 11n: up to 150 Mbps , 11g: up to 54 Mbps, 11ax: up to 114 Mbps Saturation, brightness, contrast, and sharpness adjustable by client software or web Image Settings browser |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 內置麥克風 | 1 built-in microphone |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| Built-in Speaker | 1 built-in speaker Motion detection (support alarm triggering by specified target types (human and Basic Event vehicle)), video tampering alarm, exception notify surveillance center, send email, trigger recording, trigger capture, audible Linkage warning |
|---|
| 語言 | English, Ukrainian 12 VDC ± 25%, reverse polarity protection, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power Power plug |
|---|

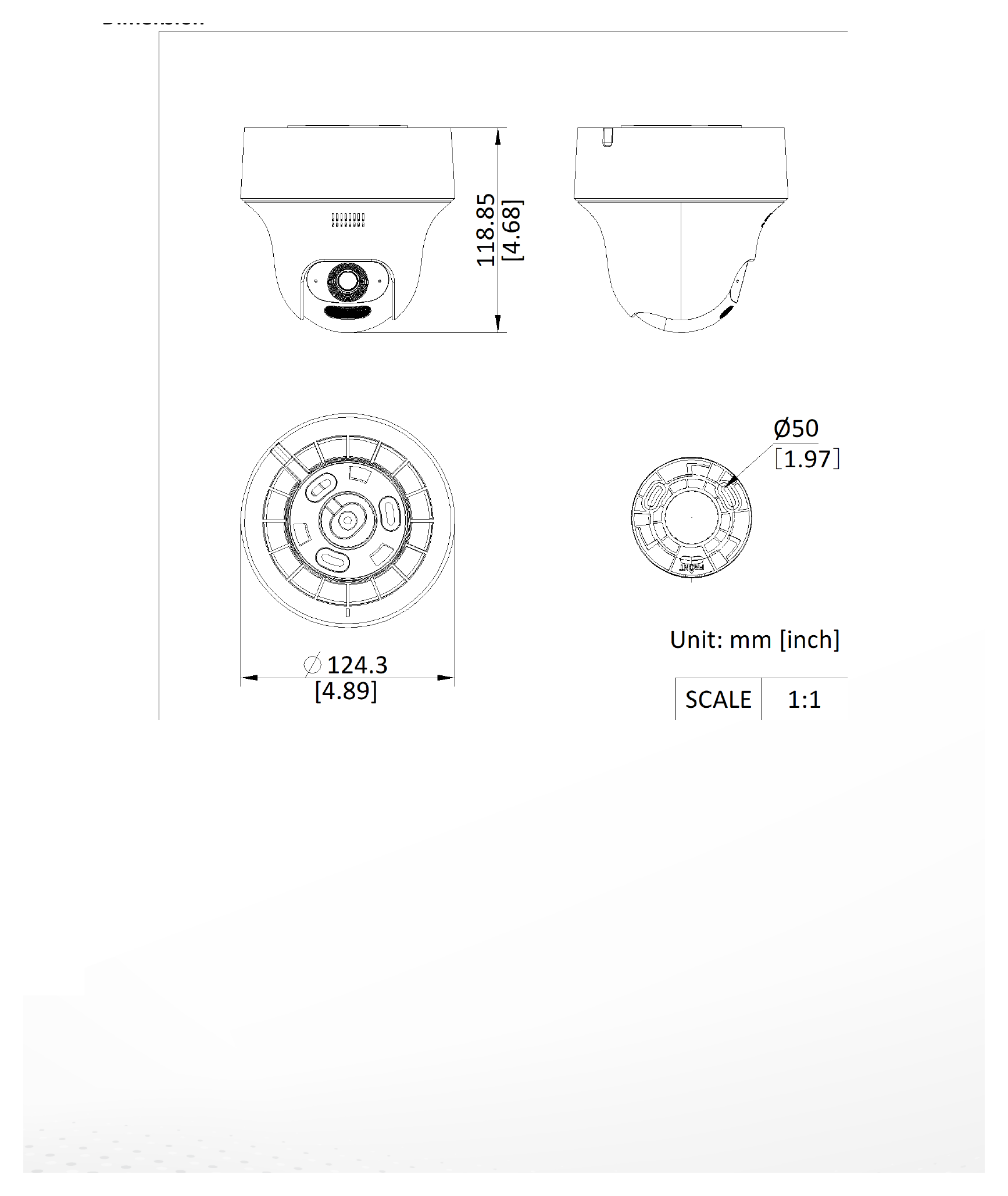

| 尺寸 | Ø 124 mm × 119 mm (Ø 4.89" × 4.68") Weight: Approx. 290 g (0.6 lb.) Weight With Package Weight:Approx. 390 g (0.8 lb.) |
|---|
| 材質 | Plastic |
|---|
| 工作環境 | -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing) |
|---|
| 一般功能 | Heartbeat, anti-banding, mirror, password protection, password reset via email |
|---|
| 防護等級 | IP54 |
|---|
