Hikvision DS-2TD2637-35 為Thermal & Optical Bi-spectrum Network Bullet Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2TD2637-35 香港價格連安裝報價。
| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| 解像度 | 384 x 288 |
| Pixel Pitch | 17 μm |
| NETD | ≤ 35 mK (@25° C,F# = 1.0) |
| 焦距 | 35 mm |
| IFOV | 0.49 mrad |
| 光圈 | F1.0 |
| Field of View | 10.7° × 8° (H × V) |
| Min. Focusing Distance | 30 m |
| Digital Zoom | ×2, ×4 |
| Spectral Range | 8 μm to 14 μm |
| 最低照度 | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| 快門速度 | 1 s to 1/100,000 s MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Bi-spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| IR Distance | Up to 100 m |
| IR Intensity and Angle | Automatically adjusted 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| 主碼流 | 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288) Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) |
| 子碼流 | 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288) Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| 音訊壓縮 | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow |
| Color Palettes | 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, |
| 網絡協議 | NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T), OTAP |
| 同時取流 | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| 客戶端 | iVMS-4200, Hik-Connect |
| 警報輸入 | 2, alarm input (0-5 VDC) |
| 警報輸出 | 2, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| 音訊輸出 | Linear level, impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
| Analog Output | 1.0V [p-p]/75Ω, PAL/NTSC/BNC 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, |
| Menu Language | Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block Power Supply PoE (802.3af, class 3) 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W 12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W Power Consumption 24VDC: 0.4A, max 9.5W PoE (802.3a |
| Working | Temperature: -40°C to 65°C (-40°F to 149°F) |
| Temperature/Humidity | Humidity: 95% or less IP67 Standard IK10-rated housing Protection Level TVS 4000V lightning protection, surge protection, voltage transient protection NEMA 4X anti-corrosion housing |
| 尺寸 | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |

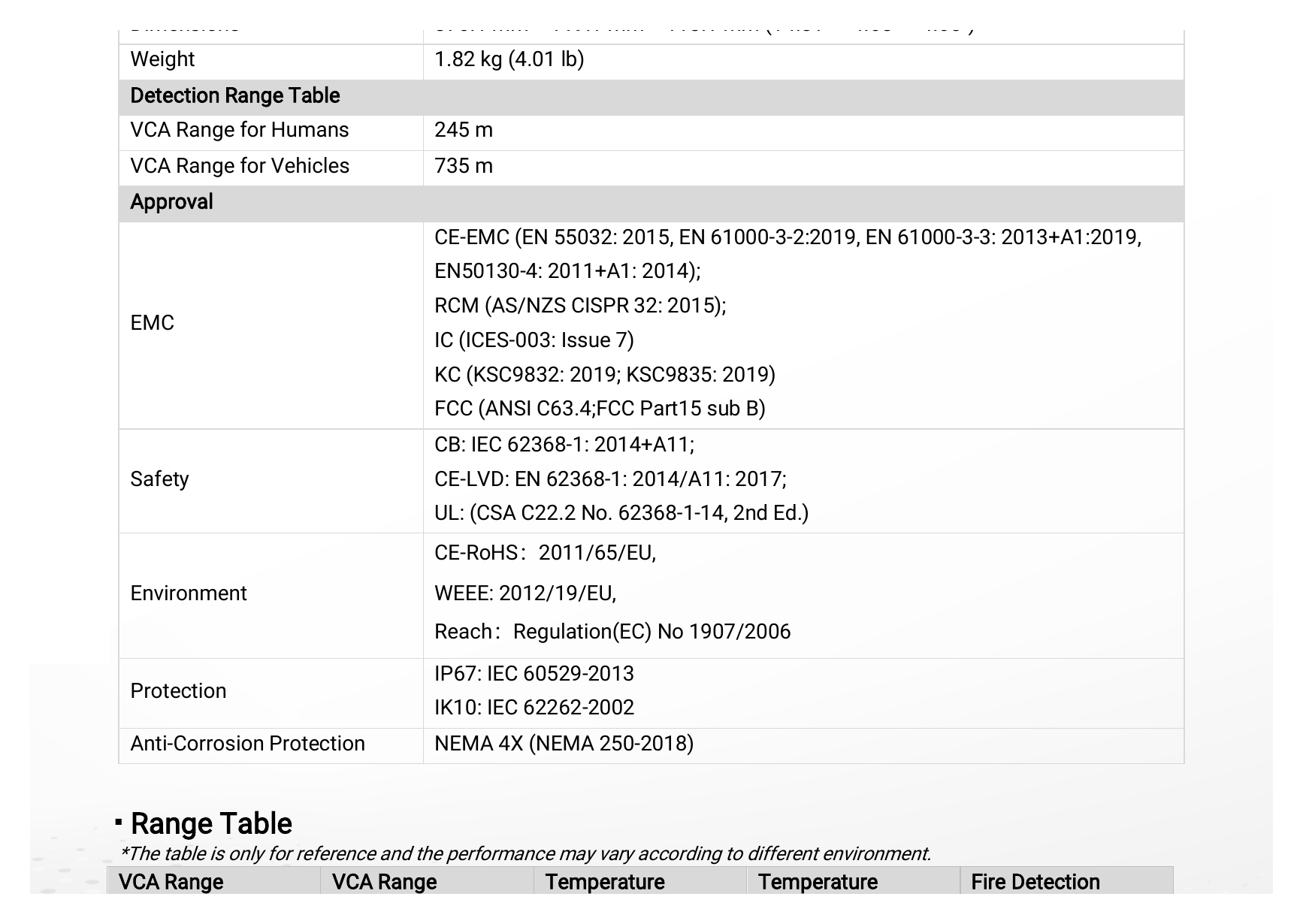

| 重量 | 1.82 kg (4.01 lb) Detection Range Table |
| VCA Range for Humans | 245 m |
| VCA Range for Vehicles | 735 m CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019) FCC (ANSI C63.4;FCC Part15 sub B) CB: IEC 62368-1: 2014+A11; |
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017; UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.) CE-RoHS：2011/65/EU, |
| Environment | WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006 IP67: IEC 60529-2013 Protection IK10: IEC 62262-2002 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) Range Table |
| VCA Range | VCA Range Temperature Temperature Fire Detection |
| m) | m) (Object: 0.2 × 0.2 m) (Object: 0.5 × 0.5 m) |
| Detection Range | Detection Range Recognition Recognition Identification Identification |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")｜重量 1.82 kg (4.01 lb) Detection Range Table｜Unit: mm
DS-2TD2637-35 Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2TD2637-35 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，DS-2TD2637-35 係 1.82 kg (4.01 lb) Detection Range Table，DS-2XE6885G0-ILZHS 係 14 kg (37.5 lb.)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2TD2637-35 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2TD2637-35 Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2TD2637-35 香港價格連安裝報價。
