Hikvision DS-2TD2667-25 為Anti-corrosion Thermal Network Bullet Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2TD2667-25 香港價格連安裝報價。
| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| 解像度 | 640 × 512 |
| Pixel Interval | 17 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
| 焦距 | 25 mm |
| IFOV | 0.68 mrad |
| Field of View | 24.55° × 19.75° (H × V) |
| Min. Focusing Distance | 13 m |
| 光圈 | F1.0 |
| Digital Zoom | ×2, ×4, ×8 |
| 最低照度 | Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
| 快門速度 | 1s to 1/100,000s |
| Aperture (Range) | F1.6 |
| WDR | 120 dB |
| Bi-spectrum Image Fusion | Display the details of optical channel on thermal channel |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Yes. Supported in white hot and black hot mode. |
| IR Distance | Up to 100 m |
| IR Intensity and Angle | Automatically adjusted 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line). |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288); |
| 主碼流 | Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720,); Optical: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal: 25fps (704 x 576, 640 x 512, 384 x 288), |
| 子碼流 | Optical: 50 Hz: 25 fps (704 × 576, 352 × 288); Opical: 60 Hz: 30 fps (704 × 480, 352 × 240) Video Compression Sub-stream: H.265/H.264/MJPEG |
| 音訊壓縮 | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, Protocols RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,SSL microSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto Network Storage network replenishment (ANR) ISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile API G, Pr |
| 同時取流 | Up to 20 channels |
| User/Host level | Up to 32 users. 3 levels: administrator, operator, user User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE Security 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 |
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
| 警報輸入 | 2-ch inputs (0-5 VDC) |
| 警報輸出 | 2-ch relay outputs, alarm response actions configurable |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± Audio Input 10% |
| 音訊輸出 | Linear Level; Impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. Communication Interface 1, RS-485 interface 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| 供電 | PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A 18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W |
| 功耗 | 9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W |
| Work Temperature/Humidity | From -40 °C to 65 °C (-40°F to 149°F); Humidity: 95% or Less IP67 Standard |
| Protection Level | TVS 6000V lightning protection, surge protection, voltage transient protection Ik10 rated housing |
| 尺寸 | 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65") |
| 重量 | Approx. 1.82 kg (4.01 lb) Range Table |
| VCA Range | VCA Range Temperature Temperature Fire Detection (Vehicles: 1.4 × 4.0 (Humans: 1.8 × 0.5 Measurement Measurement (Object: 0.2 × 0.2 |
| m) | m) (Object: 2 × 2 m) (Object: 1 × 1 m) m) 525 m 175 m 585 m 295 m 250m |
| Detection | Detection Recognition Recognition Identification Identification |
| Range | Range Range Range Range Range (Vehicles: 1.4 × (Humans: 1.8 × (Vehicles: 1.4 × (Humans: 1.8 × (Vehicles: 1.4 × (Humans: 1.8 × 4.0 m) 0.5 m) 4.0 m) 0.5 m) 4.0 m) 0.5 m) 2255 m 735 m 564 m 184 m 282 m 92 m |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

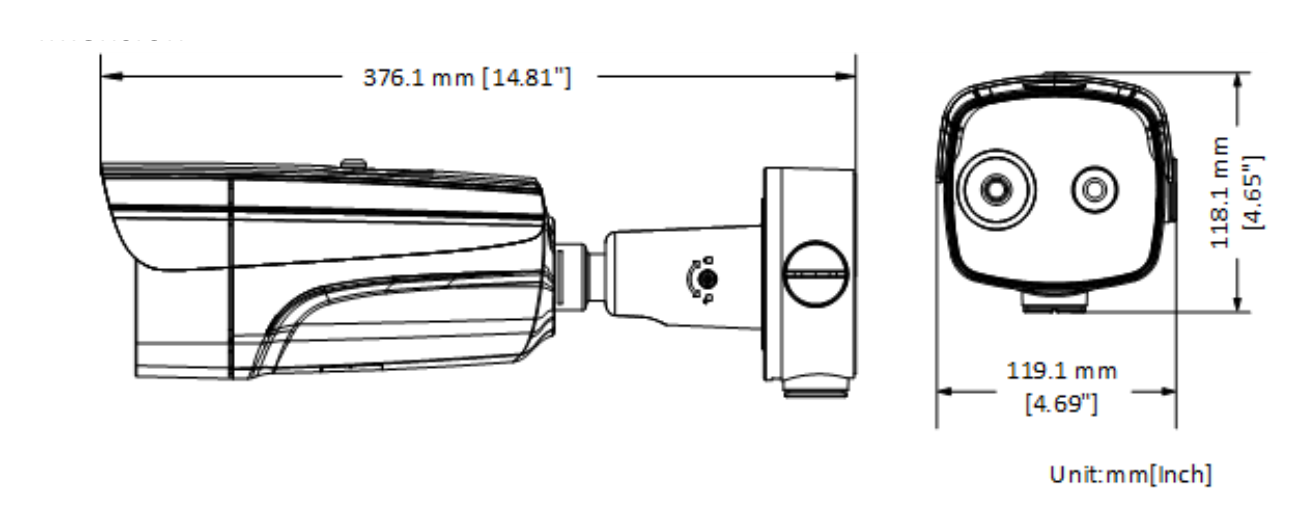

376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")｜重量 Approx. 1.82 kg (4.01 lb) Range Table｜Unit: mm
DS-2TD2667-25 Hikvision Anti-corrosion Thermal Network Bullet Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2TD2667-25 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：快門速度方面，DS-2TD2667-25 係 1s to 1/100,000s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s；重量方面，DS-2TD2667-25 係 Approx. 1.82 kg (4.01 lb) Range Table，DS-2XE6885G0-ILZHS 係 14 kg (37.5 lb.)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2TD2667-25 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2TD2667-25 Hikvision Anti-corrosion Thermal Network Bullet Camera供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：大圍CCTV 閉路電視安裝、大埔CCTV 閉路電視安裝、大角咀CCTV 閉路電視安裝、將軍澳CCTV 閉路電視安裝、尖沙咀CCTV 閉路電視安裝、屯門CCTV 閉路電視安裝、旺角CCTV 閉路電視安裝、柴灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2TD2667-25 香港價格連安裝報價。
