| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/100,000 s IR cut filter Blue glass module to reduce ghost phenomenon 2.8 to 12 mm, horizontal FOV 100.8° to 40.2°, vertical FOV 53.3° to 22.5°, diagnol FOV 122.3° to 46.2° 8 to 32 mm, horizontal FOV 40.7° to 14.6°, vertical FOV 22.3° to 8.3°, diagnol FOV 47.4° to 16.7° |
|---|
| 對焦 | Auto, semi-auto, manual 2.8 to 12 mm: F1.38 to F2.5 8 to 32 mm: F1.7 Wide: 2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m 8 to 32 mm: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: 2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m |
|---|
| 補光類型 | IR 2.8 to 12 mm: 60 m 8 to 32 mm: 100 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, |
|---|
| 視頻壓縮 | Sub-stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR/VBR |
|---|
| SVC 分級編碼 | H.265 and H.264 encoding |
|---|
| 感興趣區域 ROI | 5 fixed regions for each stream |
|---|
| Target Cropping | Yes |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, |
|---|
| 網絡協議 | PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE10, IE11 |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari12+ Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC, HLC, Defog, 3D DNR |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
|---|
| 防抖 | EIS |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 24 VDC, 1 A or max. 110 VAC, 500 mA) Without -R: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) -R: does not support |
|---|
| 重設鍵 | Yes |
|---|
| Wiegand | /P: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit) Motion detection, video tampering alarm, exception (network disconnected, IP |
|---|
| 基本事件 | address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio exception detection, defocus detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning Blocklist and allowlist: up to 10,000 records Captures vehicle that has no license plate Support license |
|---|
| People Counting | Yes Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue |
|---|
| Queue Management | Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold A graphic description of visits (by |
|---|
| Heat Map | time) in a configured area. Two report types are available, space heat map and time heat map line chart. |
|---|
| Metadata | Metadata of road traffic is supported. method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real -time number of people People density detection: supports scheduled uploading, number of people change uploading, c |
|---|

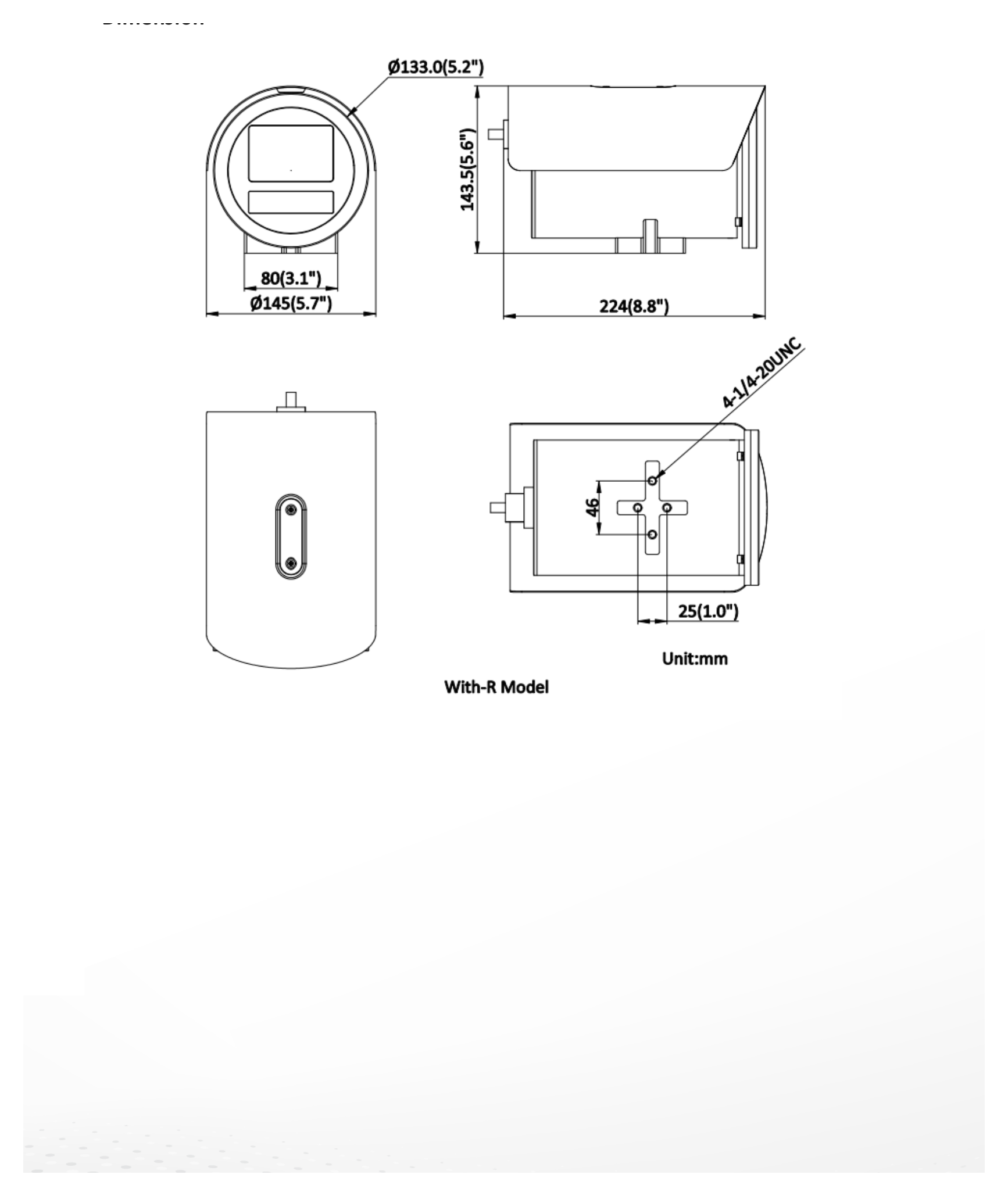

| 材質 | 316L and anti-corrosion coating With -R: 240.9 mm × 145 mm × 166.6 mm (9.5" × 5.7" × 6.6")Without -R: 224 mm × |
|---|
