| 影像感測器 | 1/1.2" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional 2.8 to 12 mm, horizontal FOV 94.7° to 38.2°, vertical FOV 50° to 21.4°, diagonal FOV 113° to 43.9° 8 to 32 mm, horizontal FOV 41.8° to 14.9°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1° |
|---|
| 對焦 | Auto, Semi-auto, Manual |
|---|
| 光圈類型 | Auto-iris |
|---|
| 光圈 | 2.8 to 12 mm: F1.4, 8 to 32 mm: F1.7 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | 2.8 to 12 mm lens: up to 80 m (262.5 ft.), 8 to 32 mm lens: up to 150 m (492.1 ft.) |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (3840 × 2160, 3072 × 1728) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720） 60 Hz: 20 fps (3840 × 2160, 3072 × 1728) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) Mai |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream and sub-stream |
|---|
| Target Cropping | Yes |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface, ISAPI, SDK, ISUP Up to 32 users 3 user levels: administrator, operator, and user NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+, Not recommended: Safari 11+, Edge |
|---|
| 圖像參數切換 | Yes Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 50 dB |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC, HLC, 3D DNR, Defog |
|---|
| 隱私遮蔽 | Yes |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
|---|
| Video Output | 1 Vp-p Composite Output (75Ω/BNC) |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. 1 input (line in) 1 output (line out) |
|---|
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA) |
|---|
| 基本事件 | Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection, scene change detection, defocus detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm Linkage output, trigger recording, trigger capture 100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block, PoE: Power IEEE 802.3at, Class 4, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 |
|---|
| 材質 | 316L + Anti-corrosion coating |
|---|

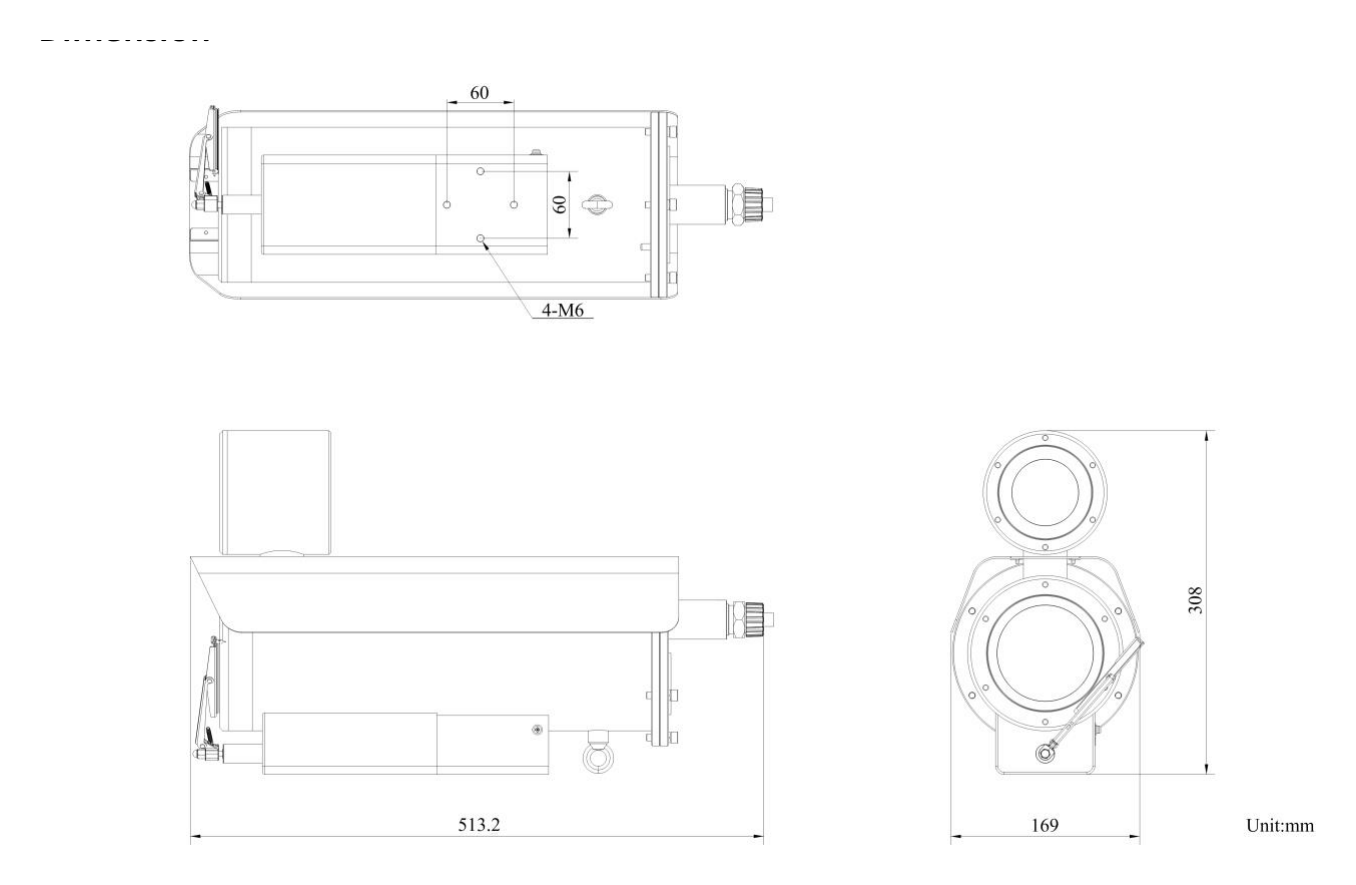

| 尺寸 | 513.2 mm × 169 mm × 308 mm (20.2" × 6.65" × 12.13") |
|---|
| 包裝尺寸 | 753 mm × 313 mm × 424 mm (29.65" × 12.32" × 16.69") |
|---|
| 重量 | Approx. 17.8 kg (39.24 lb.) |
|---|
| 連包裝重量 | Approx. 19.8 kg (43.65 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|---|
| 一般功能 | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
|---|
| Heater | Yes |
|---|
| Wiper | Yes |
|---|
| Cable Length | 1.1 m (3.61 ft.) FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) IC: IC-VoC (ICES-003 Issue 7: 2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) CB: IEC 60950-1 |
|---|
| Safety | CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013) LOA: SANS IEC60950-1 |
|---|
| Environment | CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863) |
|---|
| 防護等級 | IP68: IEC 60529-2013 ATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; Explosion-Proof Protection For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas |
|---|
