Hikvision DS-2XE6482F-IZHRSD 為316L 8MP Explosion-Proof Vari-focal Bullet，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2XE6482F-IZHRSD 香港價格連安裝報價。
| 影像感測器 | 1/2" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 3840 × 2160 |
| 快門速度 | 1/3 s to 1/100,000 s |
| 最低照度 | Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| 日夜切換 | IR cut filter |
| 鏡頭類型 | Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional |
| 對焦 | Auto,Semi-auto,Manual 2.8 to 12 mm, horizontal FOV 94.8° to 38.2°, vertical FOV 50° to 21.4°, diagonal FOV 113° to 43.9° 8 to 32 mm, horizontal FOV 41.8° to 14.9°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1° |
| 光圈類型 | Auto-iris 2.8 to 12 mm: F1.4 8 to 32 mm: F1.7 2.8 to 12 mm: D: 6.4 to 220 m, O: 25.4 to 87.3 m, R: 12.8 to 44 m, I: 6.4 to 22 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230 m, R: 43.6 to 116 m, I: 21.8 to 58 m |
| 補光類型 | IR 2.8 to 12 mm: up to 80 m 8 to 32 mm: up to 150 m |
| 智能補光 | Yes |
| 紅外波長 | Up to 850 nm 50 Hz: 20 fps (3840 × 2160, 3072 × 1728) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160, 3072 × 1728) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 24 |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| 視頻碼率 | 32 Kbps to 8 Mbps |
| H.264 類型 | BaseLine Profile,Main Profile,High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR,VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 1 fixed region for main stream and sub-stream |
| Target Cropping | Yes |
| 環境噪音過濾 | Yes |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Type | Mono sound |
| 同時取流 | Up to 6 channels |
| API | Open Network Video Interface, ISAPI, SDK, ISUP TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS |
| 用戶管理 | Up to 32 users. 3 levels: administrator, operator and user NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge Rotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser |
| 寬動態 WDR | 120 dB |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| 日夜模式 | Day,Night,Auto,Schedule |
| 影像增強 | BLC,HLC,3D DNR,Defog |
| 圖像參數切換 | Yes |
| 信噪比 SNR | ≥ 50 dB |
| 隱私遮蔽 | 8 programmable polygon privacy masks |
| Video Output | 1 Vp-p Composite Output (75 Ω/BNC) |
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing. |
| Audio | 1 input (line in), 1 output (line out) |
| 警報 | 2 inputs, 2 outputs (max. 24 VDC, 1 A or 110 VAC, 500 mA) Motion detection (support alarm triggered by specified target types (human and |
| 基本事件 | vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, intrusion detection, region entrance detection, region exiting |
| 智能事件 | detection (support alarm triggered by specified target types (human and vehicle)) Scene change detection, audio excepti on detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture 100 VAC to 240 VAC, 0.38 A to 0.18 A, max. 22.6 W, three-core terminal block PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.6 |
| 材質 | 316L + Anti-corrosion coating |
| 尺寸 | 513.2 mm × 169 mm × 308 mm (20.2" × 6.65" × 12.13") |
| 包裝尺寸 | 753 mm × 313 mm × 424 mm (29.65" × 12.32" × 16.69") |
| 重量 | Approx. 17.42 kg (38.40 lb.) |
| 連包裝重量 | Approx. 19.80 kg (43.65 lb.) |
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional |
| Heater | Yes |
| Wiper | Yes |
| Cable Length | 1.1 m (3.61 ft.) |
| 一般功能 | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B) CE: CE-EMC (EN 50130-4: 2011+A1: 2014, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013) IC: IC-VoC (ICES-003 Issue 7: 2020) KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28) CB: IEC 60950-1 |
| Safety | CE: CE-LVD (EN 60950-1: 2006+A11: 2009+A1: 2010+A12: 2011+A2: 2013) LOA: SANS IEC60950-1 |
| Environment | CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863) |
| 防護等級 | IP68: IEC 60529-2013 ATEX: II 2 G Ex db op is IIC T6 Gb/ II 2D Ex tb op is IIIC T80°C Db IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

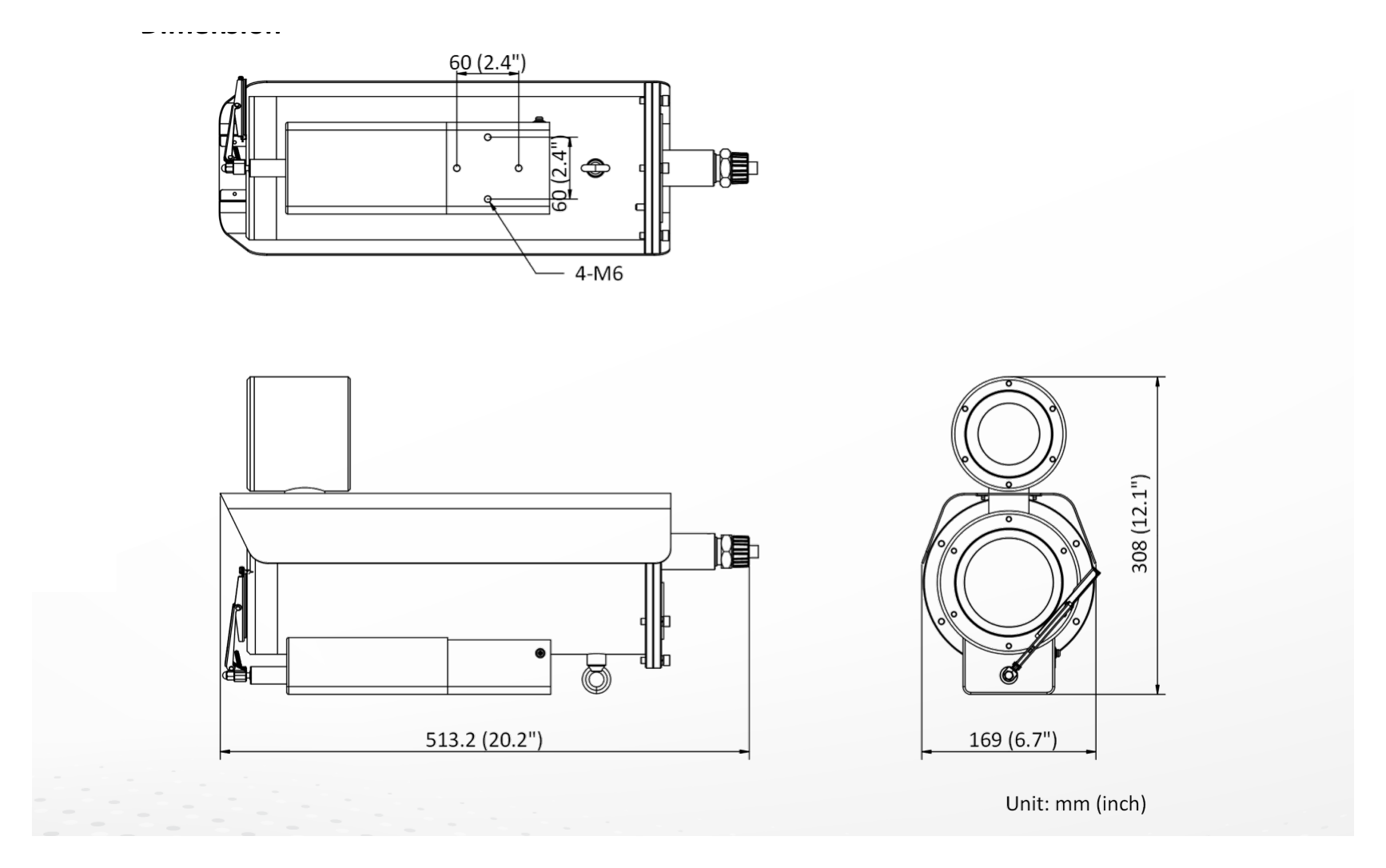

513.2 mm × 169 mm × 308 mm (20.2" × 6.65" × 12.13")｜重量 Approx. 17.42 kg (38.40 lb.)｜Unit: mm
DS-2XE6482F-IZHRSD Hikvision 316L 8MP Explosion-Proof Vari-focal Bullet亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2XE6482F-IZHRSD 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，DS-2XE6482F-IZHRSD 係 Approx. 17.42 kg (38.40 lb.)，DS-D4039CD-1F 係 5.6 kg (12.35 lb)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2XE6482F-IZHRSD 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2XE6482F-IZHRSD Hikvision 316L 8MP Explosion-Proof Vari-focal Bullet供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2XE6482F-IZHRSD 香港價格連安裝報價。
