| 影像感測器 | 1/2.7" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.002 Lux @ (F1.6, AGC ON) |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter 2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6° 4 mm, horizontal FOV 78.8°°, vertical FOV 42.3°, diagonal FOV 93.4° |
|---|
| 鏡頭接口 | Integrated |
|---|
| 光圈 | F1.6 |
|---|
| 補光類型 | Hybrid (IR and White) IR: up to 30 m White Light: up to 15 m |
|---|
| 紅外波長 | 850 nm Memory: 60 MB, |
|---|
| Open Resources | Smart RAM: 371 MB, eMMC: 2 GB |
|---|
| Computing Power | 1.5 TOPS HEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability |
|---|
| Deep Learning Structure | Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX |
|---|
| Programming Language | C,C++,Go Supports 4 model packages, and each model package supports detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time. Built-in CoalMineSafetyDetection 50 Hz: 25 fps (2688× 1520, 2560 ×1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688× 1520, 2560 ×1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (704 × 576, 64 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 5 fixed regions for main stream |
|---|
| Target Cropping | Yes |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, |
|---|
| 網絡協議 | IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2, TPM 2.0(FIPS 140-2 level 2) |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11 |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC,3D DNR,HLC |
|---|
| 隱私遮蔽 | 8 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 12 VDC, 0.03 A) Motion detection (support alarm triggering by specified target types (human and |
|---|
| 基本事件 | vehicle)),video tamperi ng alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,video quality diagnosis Unattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,a |
|---|
| 人臉抓拍 | Supports swing left and right from -70° to 70°, tilt up and down from -50° to 50°, Uploads face with background and closed-up face pictures |
|---|
| People Counting | Yes Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue |
|---|
| Queue Management | Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold A graphic description of visits (by |
|---|
| Heat Map | time) in a configured area., Two report types are available, space heat map and time heat map line chart. Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alar |
|---|
| 材質 | aluminum alloy |
|---|

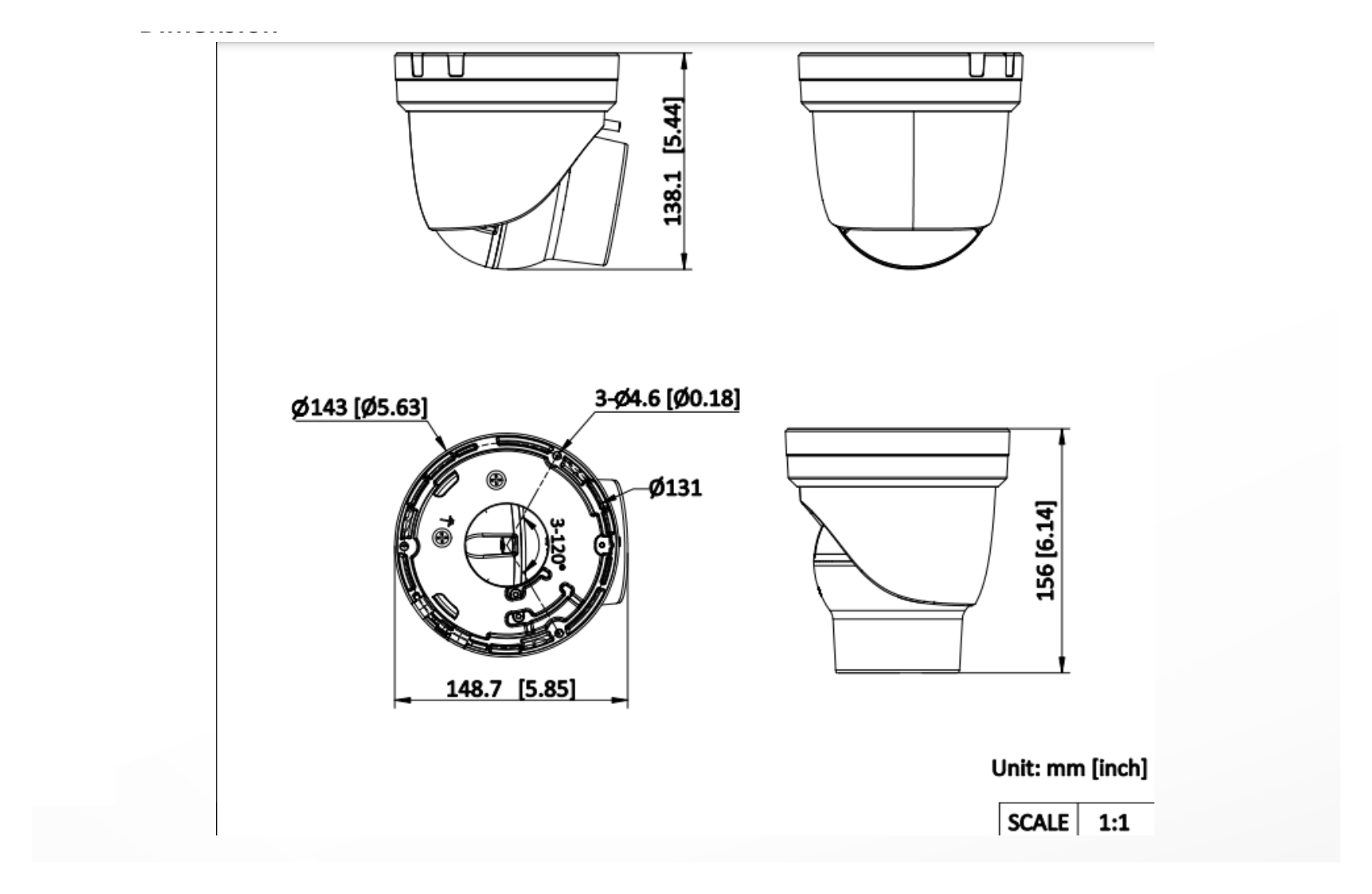

| 尺寸 | 148.7 mm × 143 mm × 156 mm (5.85" × 5.63" × 6.14") |
|---|
| 包裝尺寸 | 203 mm × 203 mm × 269 mm (7.99" × 7.99" × 10.59") |
|---|
| 重量 | Approx. 1.83 kg (4.03 lb.) |
|---|
| 連包裝重量 | Approx. 2.22 kg (4.89 lb.) Startup and Operating -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chin |
|---|
| 一般功能 | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti -banding CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
|---|
| 防護等級 | IP66: IEC 60529-2013,IP68: IEC 60529-2013 ATEX: II 2G Ex db IIC T6 Gb II 2D Ex tb IIIC T80°C Db IECEx: Ex db IIC T6 Gb Explosion-Proof Protection Ex tb IIIC T80°C Db For explosive gas atmospheres, the maximum surface temperature is 85 °C; For flammable dust atmospheres, the maximum surface temperature is 80 °C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explos |
|---|
