| 影像感測器 | 1/1.2" Progressive Scan CMOS |
|---|
| 最大解像度 | 3840 × 2160 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124° 4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8° |
|---|
| 光圈類型 | Fixed |
|---|
| 鏡頭接口 | M20 |
|---|
| 光圈 | F1.0 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m |
|---|
| 補光類型 | White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360) Main stream: H.265 |
|---|
| 視頻壓縮 | Sub-stream: H.265/MJPEG *Full power mode: main stream supports H.265+ |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR/VBR |
|---|
| SVC 分級編碼 | H.265 encoding |
|---|
| 感興趣區域 ROI | 4 fixed regions for main stream |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2 |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | Hik-Connect (low power mode also supports), Hik-central Professional Plug-in required live view: IE 10+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| SIM Card Type | MicroSIM DS-2XS6A87G1-L/C32S80: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: Band3/5/8 DS-2XS6A87G1-L/C32S80 (US): LTE-FDD: Band2/4/5/12/13/17/66/71 WCDMA: Band2/4/5 DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66 WCDMA: Band1/2/3/4/5/8 GSM: Band2/3/5/8 DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26 |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| RS-485 | 1 RS-485 (half duplex) Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage |
|---|
| 重設鍵 | Yes |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Line crossing detection, up to 4 regions configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable |
|---|
| 智能事件 | Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable, The smart events are only supported under full power mode. Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture 12 VDC ± 20%, Ø 5.5 mm coaxial power plug 1. Standby power consum |
|---|

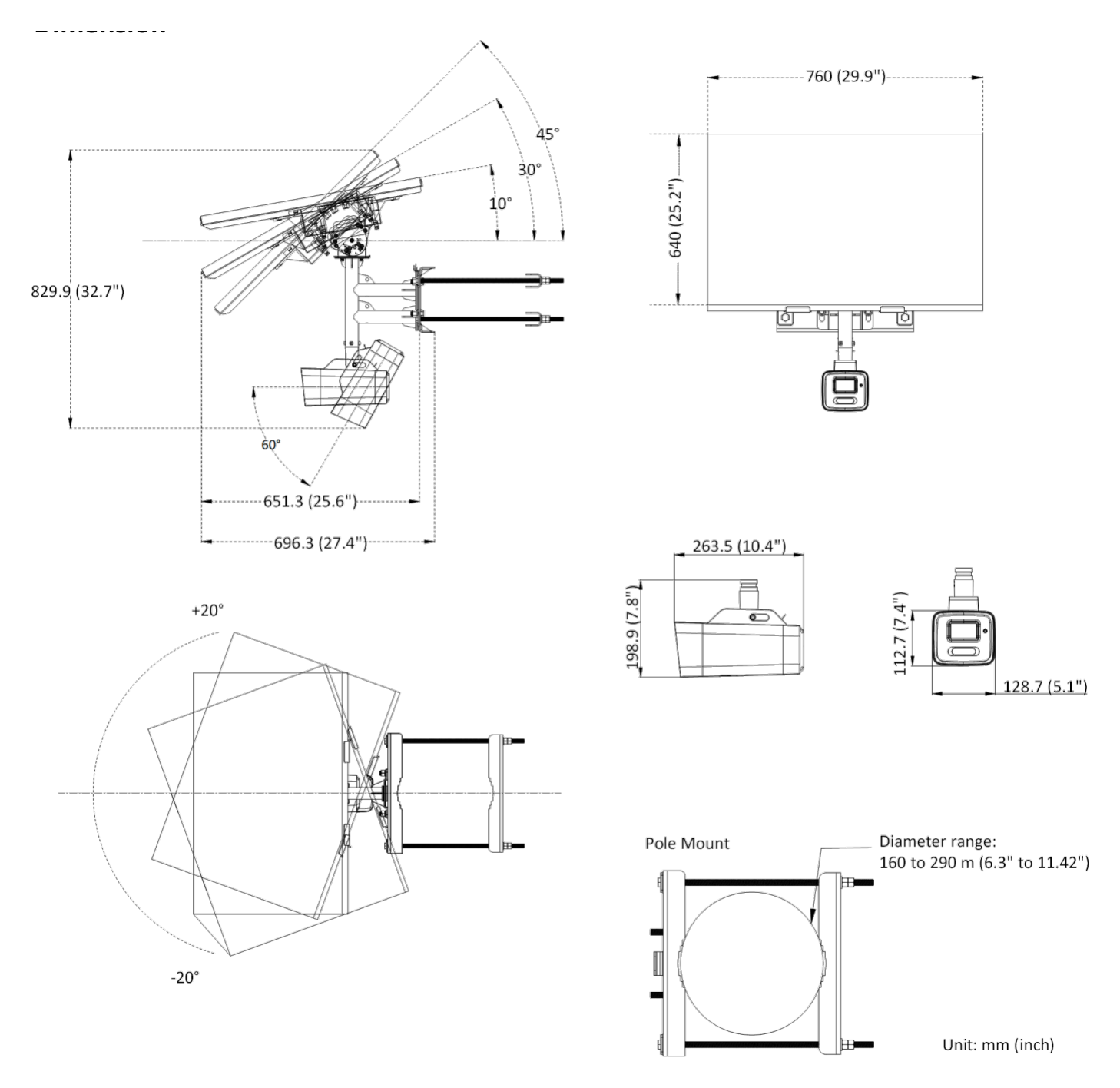

| 材質 | Front cover: metal, body: metal, bracket: metal 829.9 × 696.3 × 760 mm (32.7" × 27.4" × 30") (Max. size of the camera after it is |
|---|
