HIKVISION DS-3E1528HP-SI-24P2T2F 網絡設備安裝・保養

Name: HIKVISION DS-3E1528HP-SI-24P2T2F Smart Gigabit PoE Pro-Series
Brand: Hikvision
SKU: DS-3E1528HP-SI-24P2T2F

產品簡介

Hikvision DS-3E1528HP-SI-24P2T2F 為Smart Gigabit PoE Pro-Series，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3E1528HP-SI-24P2T2F 香港價格連安裝報價。

機身：Metal material
淨重：2.975 kg (6.56 lb)
毛重：3.535 kg (7.79 lb)

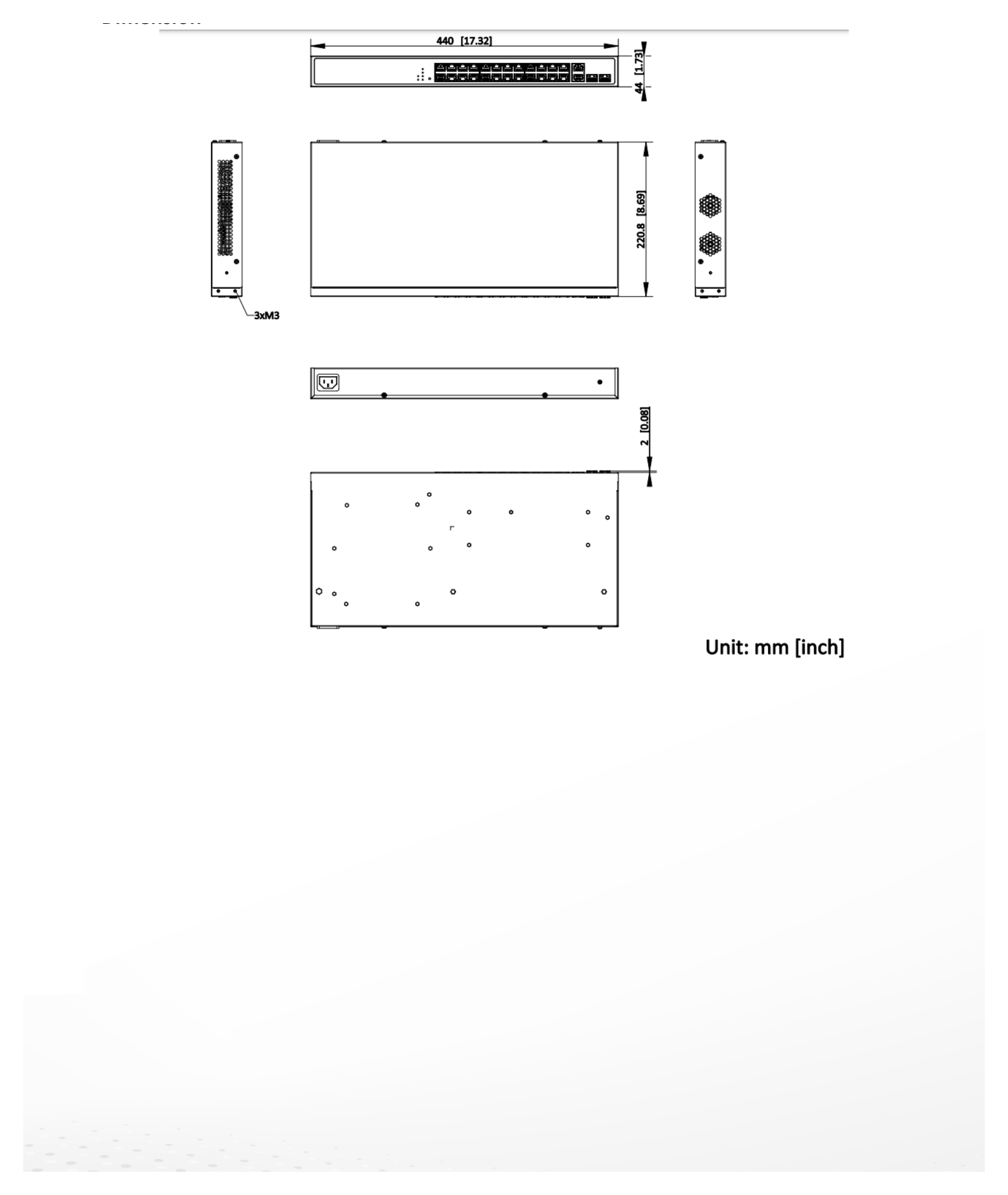

尺寸：440 mm × 44 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
工作溫度：0 °C to 45 °C (0 °F to 113 °F)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-3E1528HP-SI-24P2T2F Hikvision Smart Gigabit PoE Pro-Series 產品圖片

詳細規格

機身	Metal material
淨重	2.975 kg (6.56 lb)
毛重	3.535 kg (7.79 lb)
尺寸	440 mm × 44 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
工作溫度	0 °C to 45 °C (0 °F to 113 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	100~240 V 50/60 Hz 6.3 A
安裝方式	Desk-Mounted,Rack (equipped with mounting ears)
最大功耗	400 W
閒置功耗	30 W
防雷	6 kV
Ports	24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC 位址表	8K Whole-Device Performance: 56 Gbps Port Performance: 56 Gbps Whole-Device Performance: 41.66 Mpps Port Performance: 41.66 Mpps
內部緩存	4.1 Mbits Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 5 to 24: IEEE 802.3af, IEEE 802.3at Ports 1 to 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Ports 5 to 24: End-span: 1/2(-), 3/6(+) Hi-PoE: Ports 1 to 4 PoE: Ports 5 to 24 Ports 1 to 4: 90 W Ports 5 to 24: 30 W
PoE 功率預算	370 W Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 28: port isolation mode to improve network security
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 24: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. VLAN is us
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port ra
System Maintenance	Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. Port rate-limiting is used for port bandwidth adjustment to prevent network conge
DHCP Snooping	disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default. Port security strategy.
ACL	Support up to 64 ACL entries. Support up to 128 configuration rules under all ACL entries.
IPSG	Support port, MAC, IP binding. Support 256 security entries. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:
EMC	2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
