HIKVISION DS-3T1506HP-EI-UPS 網絡設備安裝・保養

Name: HIKVISION DS-3T1506HP-EI-UPS 4 Port Gigabit Smart Managed Industrial Solar PoE Switch
Brand: Hikvision
SKU: DS-3T1506HP-EI-UPS

產品簡介

Hikvision DS-3T1506HP-EI-UPS 為4 Port Gigabit Smart Managed Industrial Solar PoE Switch，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3T1506HP-EI-UPS 香港價格連安裝報價。

淨重：0.7 kg (1.54 lb)
毛重：1.16 kg (2.56 lb)

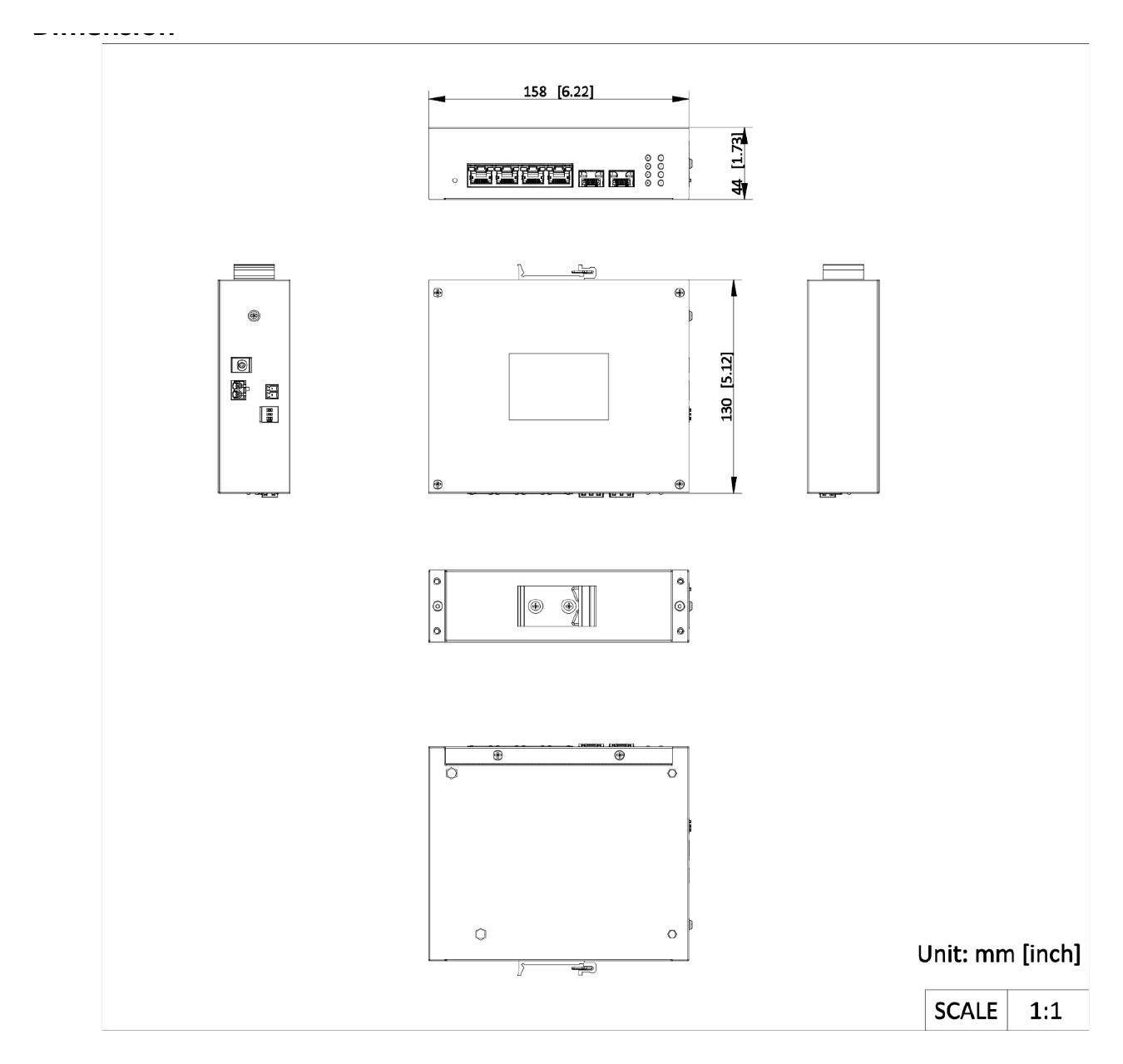

尺寸：158.00 mm × 44.00 mm × 130.00 mm (6.22'' × 1.73'' × 5.12'')
工作溫度：-40 °C to 75 °C (-40 °F to 167 °F)
儲存溫度：-40 °C to 85 °C (-40 °F to 185 °F)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-3T1506HP-EI-UPS Hikvision 4 Port Gigabit Smart Managed Industrial Solar PoE Switch 產品圖片

詳細規格

淨重	0.7 kg (1.54 lb)
毛重	1.16 kg (2.56 lb)
尺寸	158.00 mm × 44.00 mm × 130.00 mm (6.22'' × 1.73'' × 5.12'')
工作溫度	-40 °C to 75 °C (-40 °F to 167 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	12 V DC, 10 A or 24 V DC, 5 A; 54 V 2.22 A
安裝方式	Desk-Mounted,Rail 120 W
防雷	6 kV
機身	Metal material, IP30
Ports	4 × Gigabit PoE port,2 × Gigabit fiber optical port,1 x RS485 port
MAC 位址表	2K Whole-Device Performance: 14 Gbps Port Performance: 12 Gbps Whole-Device Performance: 10.42 Mpps Port Performance: 8.93 Mpps
內部緩存	1 Mbits Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
PoE 標準	Ports 2 to 4: IEEE 802.3af, IEEE 802.3at Ports 3 to 4: support passive PoE, 24 V or 54 V output depending on DIP switch settings Port 1: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE 供電腳位	Port 2: End-span: 1/2(-), 3/6(+) Ports 3 to 4: 8-pin power: 1/2(-), 3/6(+), 54 V output ; 4/5(+), 7/8(-), 24 V output Hi-PoE: Port 1 PoE: Ports 2 to 4 Port 1: 90 W Ports 2 to 4: 30 W DC 54 V input: 110 W DC 12 V~24 V input: 60 W Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 6: port isolation mode to improve network security
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 4: auto detect and restart the cameras that do not respond. balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation group(s). Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Loop Prevention	Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS. VLAN is used for network scale planning and network health improvement. Support 802.1Q.
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port lon
DHCP Snooping	network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
DDM (Digital Diagnostic	Support real-time monitoring of key parameters in optical modules, such as operating
Monitoring)	temperature, operating voltage, operating current, and Rx and Tx optical power. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019,
EMC	EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
