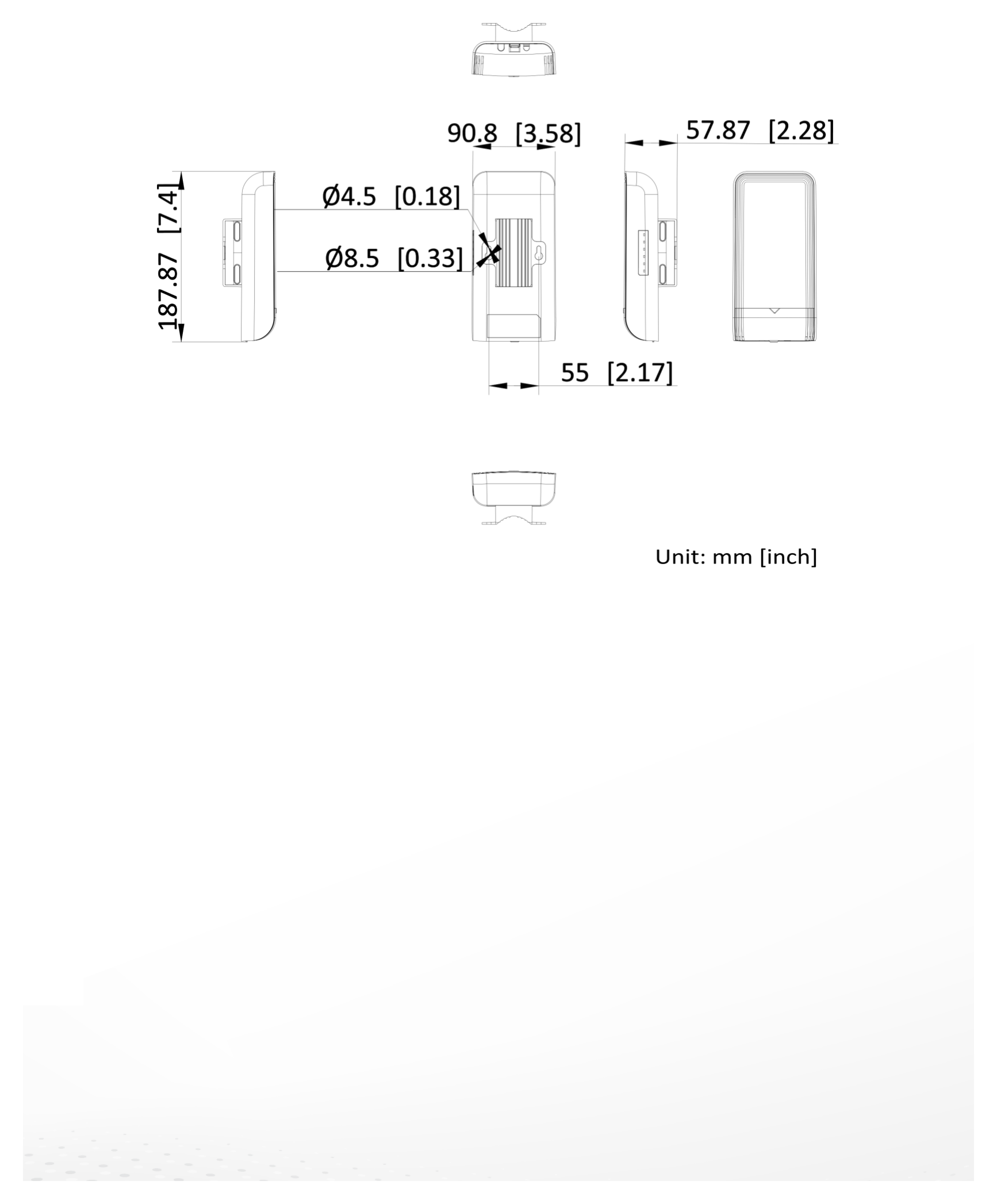

| 尺寸 | 90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'') |
|---|
| Package Dimensions (W × H × D) | 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38") |
|---|
| 淨重 | 0.26 kg (0.57 lb) per device |
|---|
| 毛重 | 0.8 kg (1.76 lb) Wireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1 |
|---|
| 包裝方式 | Packing in pairs |
|---|
| 工作溫度 | -30 °C to 70 °C (-22 °F to 158 °F) |
|---|
| 工作濕度 | 5% to 95% (no condensation) |
|---|
| 儲存溫度 | -40 °C to 80 °C (-40 °F to 176 °F) |
|---|
| Storage Humidity | 5% to 95% (no condensation) |
|---|
| 安裝方式 | Pole Mounting |
|---|
| 防護等級 | IP55 |
|---|
| 功耗 | 1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W |
|---|
| 無線標準 | IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) ≤ 300 Mbps |
|---|
| 工作頻段 | 2400 MHz ~ 2483.5 MHz |
|---|
| 天線增益 | 7 dBi |
|---|
| 天線角度 | (H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65° |
|---|
| 發射功率 | 23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.) |
|---|
| 接收靈敏度 | -87±2 dBm @HT40 MCS0 |
|---|
| 吞吐量 | PTP: ,30 Mbps/0.2 KM(HT40) |
|---|
| 網絡接口 | 2 × 10/100 Mbps RJ45 ports |
|---|
| LED 指示燈 | Power indicator,LAN indicator,Signal intensity indicator |
|---|
| 重設 | Hardware resetting button |
|---|
| 供電 | 12-24 VDC Passive PoE |
|---|
| Application Function | IFM,IPM |
|---|
| 頻寬 | 10/20/40 MHz |
|---|
| 選頻 | Auto/manual selection NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) |
|---|
| 加密模式 | WPA2-PSK |
|---|
| 安全機制 | Wireless network name hidden |
|---|
| 管理方式 | Web,iVMS-4200,HCP |
|---|
| 升級方式 | Web,iVMS-4200,HCP |
|---|
| 系統日誌 | Syslog,Control center information supported: 1. Reboot device 2. Restore device 3. Display the topology information |
|---|
| HPP | 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitti ng power 6. Bridge alignment 7. Spectrum scanning CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, E |
|---|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
|---|
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17 |
|---|
