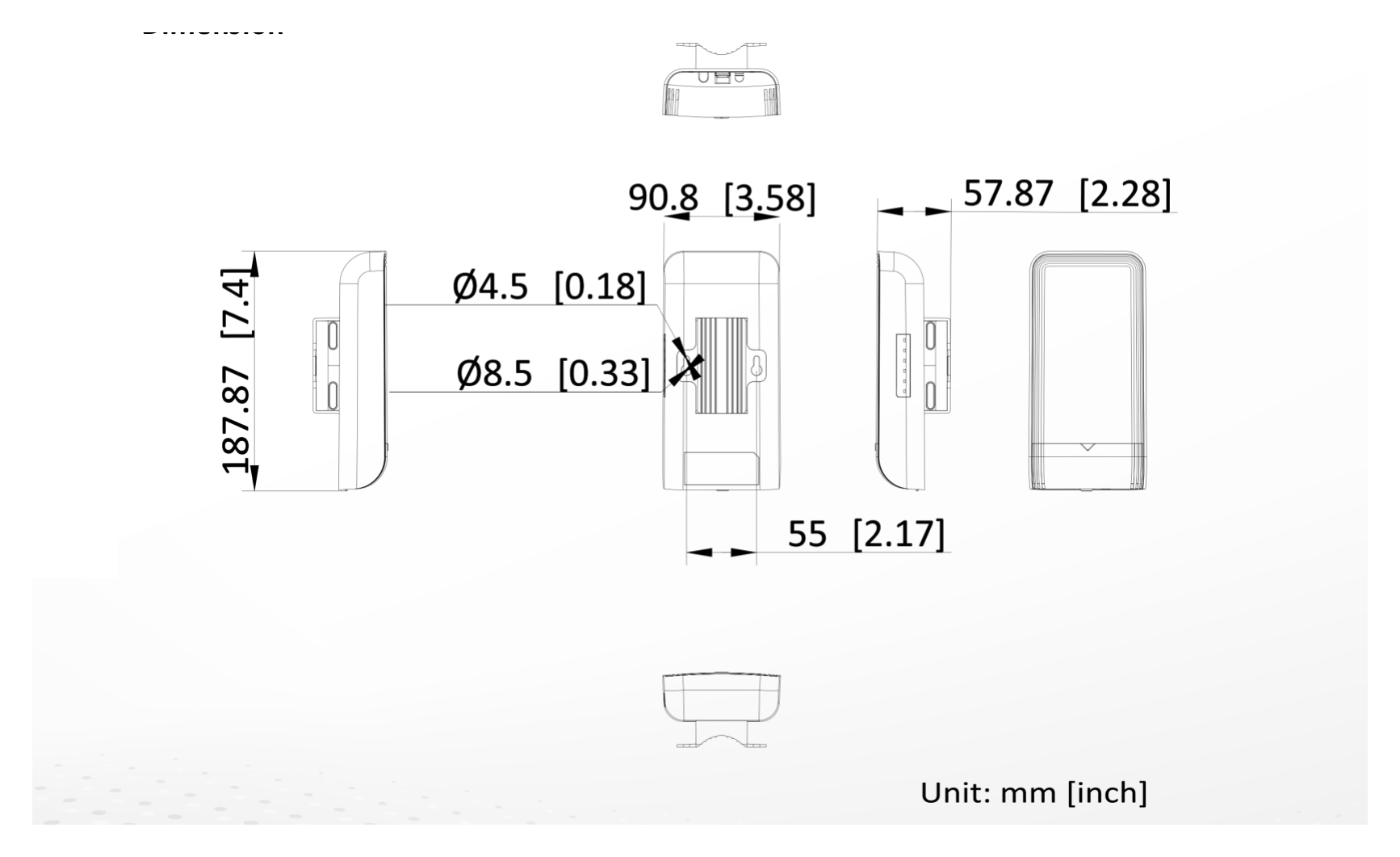

| 尺寸 | 90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'') |
|---|
| Package Dimensions (W × H × D) | 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") |
|---|
| 淨重 | 0.26 kg (0.57 lb) per device |
|---|
| 毛重 | 0.58 kg (1.28 lb) Wireless Bridge × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and |
|---|
| Safety | Information × 1,PoE Power Supply × 1,AC Cord × 1 |
|---|
| 包裝方式 | Single unit packing |
|---|
| 工作溫度 | -30 °C to 60 °C (-22 °F to 140 °F) |
|---|
| 工作濕度 | 5% to 95% (no condensation) |
|---|
| 儲存溫度 | -40 °C to 80 °C (-40 °F to 176 °F) |
|---|
| Storage Humidity | 5% to 95% (no condensation) |
|---|
| 安裝方式 | Pole Mounting |
|---|
| 防護等級 | IP55 |
|---|
| 功耗 | 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W |
|---|
| 無線標準 | IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) ≤ 300 Mbps |
|---|
| 工作頻段 | 2400 MHz ~ 2483.5 MHz |
|---|
| 天線增益 | 7 dBi |
|---|
| 天線角度 | (H) Beamwidth [3 dB] 60°, (V) Beamwidth [3 dB] 50° |
|---|
| 發射功率 | 22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.) |
|---|
| 接收靈敏度 | -87±2 dBm @HT40 MCS0 PTP: 90 Mbps/0.2 KM(HT40),90 Mbps/0.5 KM(HT40),70 Mbps/1 KM(HT40),PTMP(1 to 4): 40 Mbps/1 KM(HT40) |
|---|
| PoE 埠 | LAN1 passive PoE IN, LAN2 802.3 af PoE OUT |
|---|
| PoE 功率預算 | 10 W |
|---|
| PoE 距離 | 100 m |
|---|
| 網絡接口 | 2 × 10/100 Mbps RJ45 ports |
|---|
| LED 指示燈 | Power indicator,LAN indicator,Signal intensity indicator |
|---|
| 重設 | Hardware resetting button |
|---|
| 供電 | 48V PoE;Check the physical interface image below for more details |
|---|
| Application Function | IFM,IPM |
|---|
| 頻寬 | 10/20/40 MHz |
|---|
| 選頻 | Auto/manual selection |
|---|
| 加密模式 | WPA2-PSK |
|---|
| 安全機制 | Wireless network name hidden NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging) |
|---|
| 管理方式 | HPP,HCP,Web,iVMS-4200 |
|---|
| 系統日誌 | Syslog,Control center information |
|---|
| 升級方式 | Web,iVMS-4200,HCP,HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, HPP background noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, chan |
|---|
| EMC | CE-EMC(EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3) |
|---|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) EN 301 489-17,EN 301 489-1, EN 61000-3-3, EN IEC 61000-3-2, EN 300 328, EN IEC 62311 |
|---|
