| | Support all channels motion detection technology |
|---|
| IP 視頻輸入 | Up to 5MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|---|
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
|---|
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
|---|
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
|---|
| CVBS Input | Support |
|---|
| HDMI 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| 視頻輸出模式 | HDMI/VGA simultaneous output 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | Reuse the first audio input |
|---|
| 同步回放 | 8-ch |
|---|
| 視頻壓縮 | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF |
|---|
| Encoding Resolution | For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps |
|---|
| Frame Rate | For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
|---|
| Video Bitrate | 32 Kbps to 4 Mbps |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 音訊壓縮 | G.711u |
|---|
| Audio Bitrate | 64 Kbps |
|---|
| Total Bandwidth | 72 Mbps |
|---|
| 遠程連接 | 64 |
|---|
| 網絡協議 | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS |
|---|
| 網絡接口 | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
|---|
| SATA | 1 SATA interface |
|---|
| 容量 | Up to 4 TB capacity for each disk |
|---|
| USB 接口 | Rear panel: 2 × USB 2.0 |
|---|
| 警報輸入/輸出 | N/A |
|---|
| 供電 | 12 VDC, 1.5 A |
|---|
| 功耗 | ≤ 10 W (without HDD) |
|---|
| 工作溫度 | -10 °C to 55 °C (14 °F to +131 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|

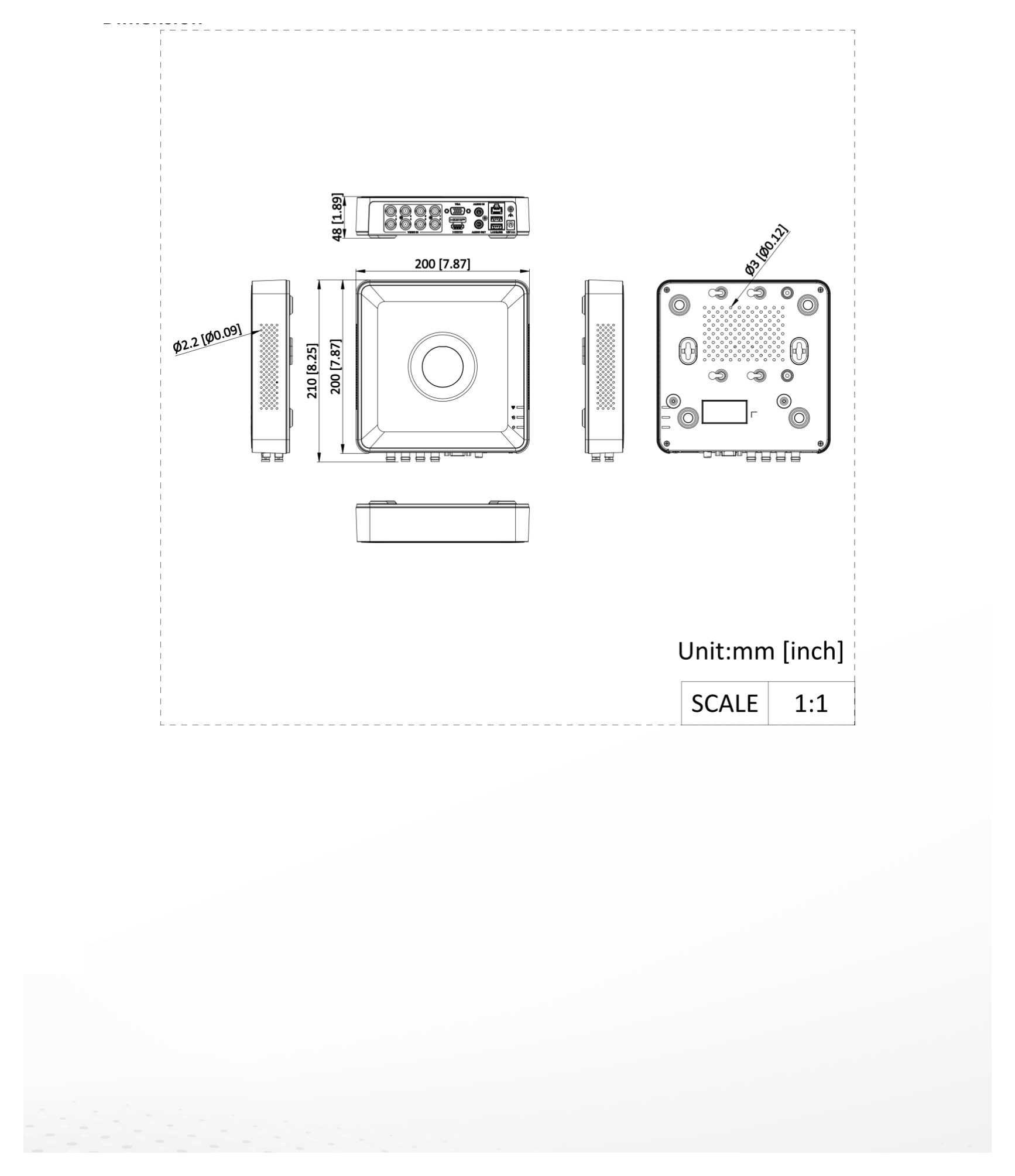

| 尺寸 | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) |
|---|
| 重量 | ≤ 1 kg (without HDD, 2.2 lb.) |
|---|
| No. | Description No. Description |
|---|
