| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|
| 解像度 | 256 × 192 (the resolution of output image is 1280 × 720) |
|---|
| Pixel Interval | 12 μm |
|---|
| Response Waveband | 8 μm to 14 μm |
|---|
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
|---|
| 焦距 | 10 mm |
|---|
| Focus Mode | Athermalized |
|---|
| IFOV | 1.20 mrad |
|---|
| 光圈 | F1.0 |
|---|
| Field of View | 18° × 13.5° (H × V) |
|---|
| Min. Focusing Distance | 1.2m |
|---|
| 最低照度 | Color: 0.05 Lux @(F1.2，AGC ON), B/W: 0.01 Lux @(F1.2，AGC ON) |
|---|
| Aperture (Range) | F1.2-F4.4 |
|---|
| Digital Zoom | ×2, ×4, ×8, ×16 |
|---|
| 快門速度 | 1s to 1/100,000s |
|---|
| WDR | 120 dB |
|---|
| Optical Defog | No, support algorithmic defog |
|---|
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
|---|
| Target Coloration | Supported in white hot and black hot mode. |
|---|
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip) |
|---|
| 水平速度 | Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s |
|---|
| 垂直速度 | Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s |
|---|
| Proportional Zoom | Yes |
|---|
| 預置位 | 300 in total, 273 are configurable. |
|---|
| 巡航掃描 | 8; Up to 32 Presets Per Patrol |
|---|
| 花樣掃描 | 4; More Than 10 Minutes Per Pattern |
|---|
| Power Off Memory | Yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|---|
| PT Status | Turn On/Turn Off Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
|---|
| IR Distance | Up to 100m |
|---|
| IR Intensity and Angle | Automatically adjusted Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
|---|
| Temperature Range | -20 °C to 550 °C (-4 °F to 1022 °F) |
|---|
| Temperature Accuracy | Max (±2 °C, ±2 %) |
|---|
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. Optical channel 50 Hz:25 fps (1920×1080, 1280×960, 1280×720) |
|---|
| 主碼流 | 60 Hz:30 fps (1920×1080, 1280×960, 1280×720) Thermal channel 25 fps (1280×720, 704 × 576, 352 × 288, 384 × 288，256 × 192) Optical channel 50 Hz:25 fps (704 × 576, 352 × 288，256 × 192) |
|---|
| 子碼流 | 60 Hz:30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 384 × 288, 352 × 288) Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 音訊壓縮 | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|---|
| API | ISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G |
|---|
| 同時取流 | Up to 20 channels |
|---|
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 |
|---|
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
|---|
| 警報輸入 | 7-ch inputs (0-5 VDC) |
|---|
| 警報輸出 | 2-ch relay outputs, alarm response actions configurable Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
|---|
| 音訊輸出 | Linear Level; Impedance: 600 Ω Communication Interface 1, RS-485 interface |
|---|
| Analog Video Output | 1.0 V [p-p]/75 Ω, BNC for thermal channel 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, |
|---|
| 介面語言 | French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|---|
| 供電 | AC24±20%、DC36±20%、DC48±20%，HIPOE |
|---|
| 功耗 | 30W max |
|---|
| Working Temperature/Humidity | From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Level Protection |
|---|

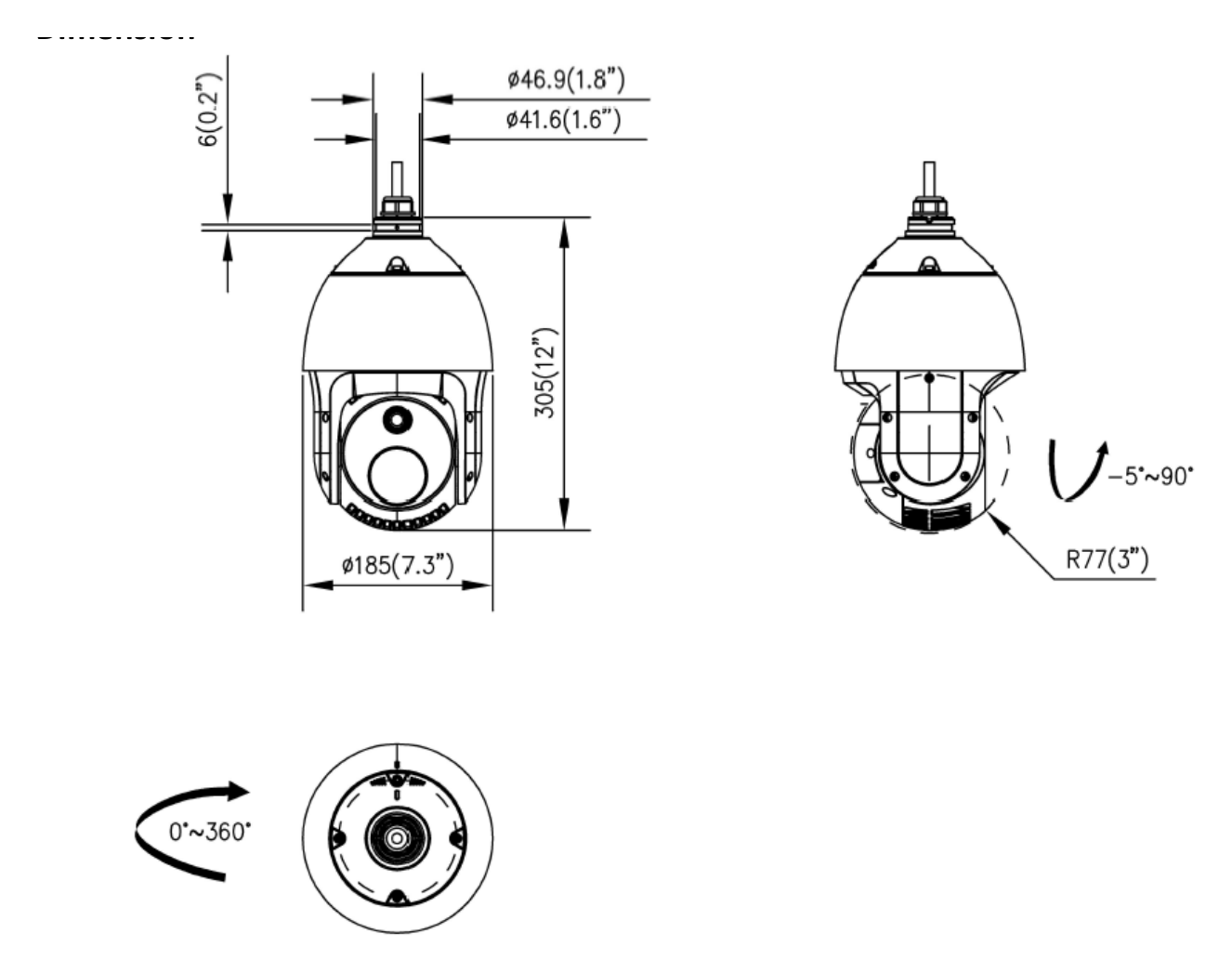

| 尺寸 | 305 mm × 185 mm × 163 mm (12.01 " × 7.28 " × 6.42 ") |
|---|
| 重量 | Approx. 3.9Kg (8.6lb) Range Table |
|---|
| VCA Range | VCA Range Temperature Temperature Fire Detection Fire Detection (Vehicles: 1.4 × (Humans: 1.8 × Measurement Measurement (Object: 2 × 2 (Object: 1 × 1 4.0 m) 0.5 m) (Object: 0.5 × (Object: 0.2 × m) m) 0.5 m) 0.2 m) 240 m 80 m 85 m 34 m 833 m 416 m |
|---|
| Detection | Detection Recognition Recognition Identification Identification |
|---|
| Range | Range Range Range Range Range (Vehicles: 1.4 × (Humans: 1.8 × (Vehicles: 1.4 × (Humans: 1.8 × (Vehicles: 1.4 × (Humans: 1.8 × 4.0 m) 0.5 m) 4.0 m) 0.5 m) 4.0 m) 0.5 m) 1277 m 416 m 318 m 104 m 160 m 52 m |
|---|
