HIKVISION DS-C30S-S11 CCTV攝影機安裝・保養

Name: HIKVISION DS-C30S-S11 11-Slot Video Wall Controller
Brand: Hikvision
SKU: DS-C30S-S11

產品簡介

Hikvision DS-C30S-S11 為11-Slot Video Wall Controller，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-C30S-S11 香港價格連安裝報價。

Chassis Height：4.5 U
Bus Type：10 GB network switching
Signal Sampling Quality：YUV 444 Supported
Main Control Board Slot：2
Service Board Slot：11

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

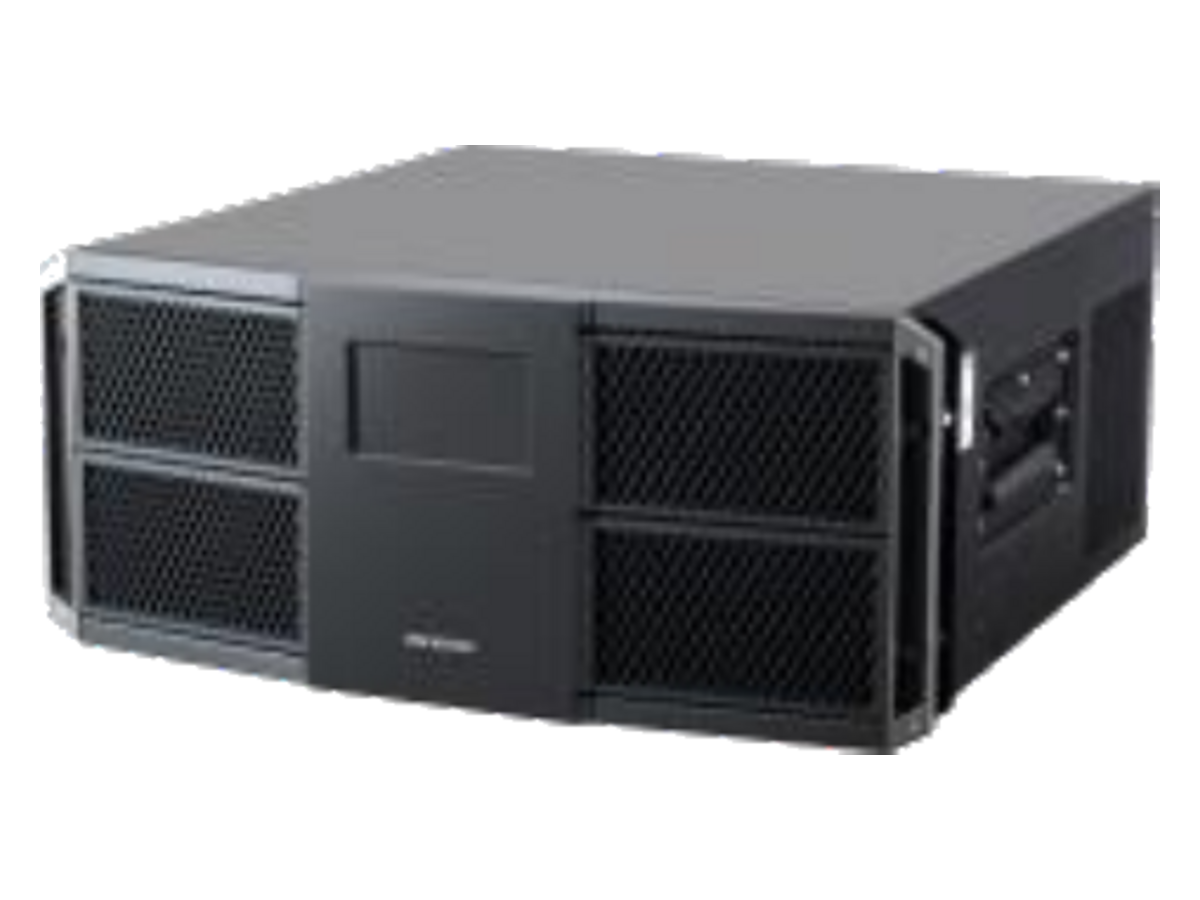

DS-C30S-S11 Hikvision 11-Slot Video Wall Controller 產品圖片

詳細規格

Chassis Height	4.5 U
Bus Type	10 GB network switching
Signal Sampling Quality	YUV 444 Supported
Main Control Board Slot	2
Service Board Slot	11
Installed Main Control Boards	1
Max. Input Slot	10
Max. Output Slot	10
Power Supply Slot	3
Installed Power Supplies	1
Fans	4
Dual Device Hot Backup	Supported
USB Interface No.	2 × USB 2.0 2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud rate:115200, valid data bit: 8 bit) 4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64 inch), resolution: 480 × 272
電源接口	100 VAC to 240 VAC, 50/60 Hz
Device Power Consumption	≤ 550 W (full configuration)
工作溫度	0 °C ~ 50 °C
工作濕度	10 ~ 90% 2 × 10/100/1000 Mbps auto-sensing Ethernet interface (2 network ports on the switching board and 1 network port reserved on the main control board)
Transmission Protocol	SDK, RTSP, ONVIF
Video Walls	8
Video Wall Scale	40
Split Window	Supported
Open Windows	16 1, 4, 6, 8, 9, 16 Each output board can duplicate eight 2K images from the input source but the LED controller board does not have copy capability.
Layers Per Port	8 × 1080p layers or 4 × 4K layers
Layers per Device	512 (fully installed with the output boards)
Scenes	128
Scene Auto-Switch Delay	400 ms
Plans	128 image of a video wall on a client with all service boards installed in the device
UHD Fusions	≤ 16 Total: 8; One background image on each video wall.
Background Image	Resolution: 16382 × 8192 Format: JGP, JPEG
Subtitles	Total: ≤ 12; Single video wall: ≤ 3
Input OSD	Supported Supported 200 pixel points on top, bottom, left, and right. 50 ms 200 ms
Display Video Wall Image	Supported ≤ 33.39 kg (73.65 lb.) Full configuration, including 21.84 kg (48.16 lb.) chassis and 1.05 kg (2.31 lb.) for each service board (2.31 lb.) for each service board ≤ 51.32 kg (113.13 lb.)
毛重	Full configuration, including 29.1 kg (64.15 lb.) chassis and 2.02 kg (4.45 lb.) for each service board

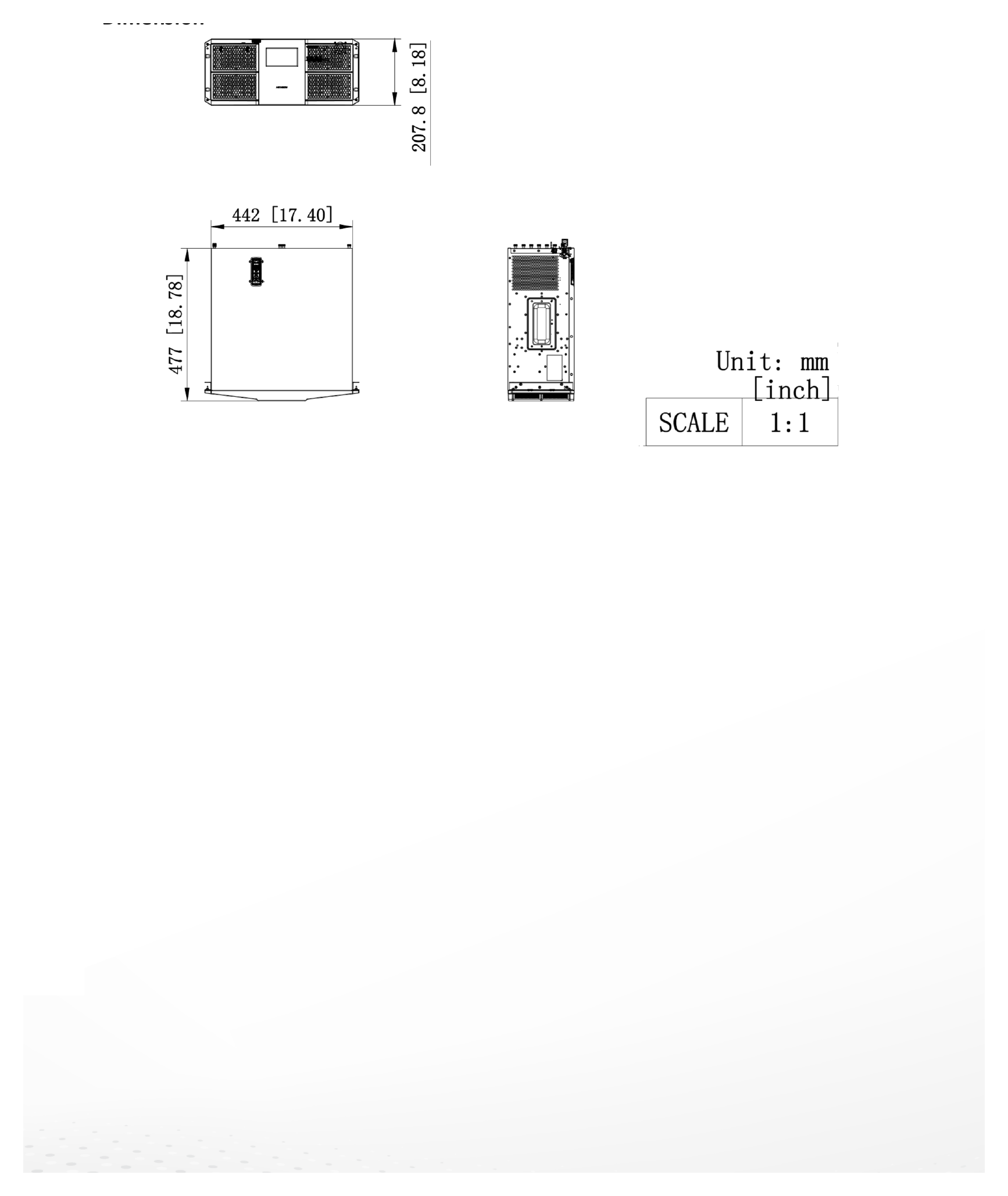

尺寸	442 mm × 207.8 mm × 447 mm (17.4 inch × 8.18 inch × 17.59 inch) 1 × grounding cable, 1 × audio adapter cable, 1 × serial port cable, 1 × AC power cord, 1 × power supply, 1 × regulatory compliance and safety information manual
Device Decoding Capability	128 channels of 1080p 30 fps
Device Splicing Capability	40 channels
