HIKVISION DS-DT60C-01HI02NO CCTV攝影機安裝・保養

Name: HIKVISION DS-DT60C-01HI02NO 2-Port C Series LED Controller
Brand: Hikvision
SKU: DS-DT60C-01HI02NO

產品簡介

Hikvision DS-DT60C-01HI02NO 為2-Port C Series LED Controller，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-DT60C-01HI02NO 香港價格連安裝報價。

Product Model：DS-DT60C-01HI02NO
Product Type：LED controller
Brightness Control：1 to 100 tunable (level-by-level white balance)
Input Frame Rate：25 Hz to 60 Hz
Grey Level：256

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Product Model	DS-DT60C-01HI02NO
Product Type	LED controller
Brightness Control	1 to 100 tunable (level-by-level white balance)
Input Frame Rate	25 Hz to 60 Hz
Grey Level	256
Display Color	16 MP
Processing Depth	8 bit
Image Scaling	Supported
Chassis Height	1U
Chassis Width	Half-width
Light Sensor Port	Not supported
Average Consumption	12 W
Power Interface Quantity	1
電源接口	100 to 240 VAC, 50/60 Hz
USB 接口	1 channel of USB 2.0 2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
Control Network Port	Connects to the external network and supports multi -device network cascade management.
Background	Images 2
Background Resolution	Min.: 640 × 480, Max.: 1920 × 1200
Background Format	JGP/JPEG
工作溫度	-10°C to 50°C
Storage Humidity	10% to 90%
工作濕度	10% to 90%
儲存溫度	-10°C to 50°C
Packaging Size (W × H × D)	353 mm × 237 mm × 89 mm (13.90 inch × 9.33 inch × 3.50inch)
淨重	1.04 kg (2.29 lb)
毛重	1.46 kg (3.22 lb)

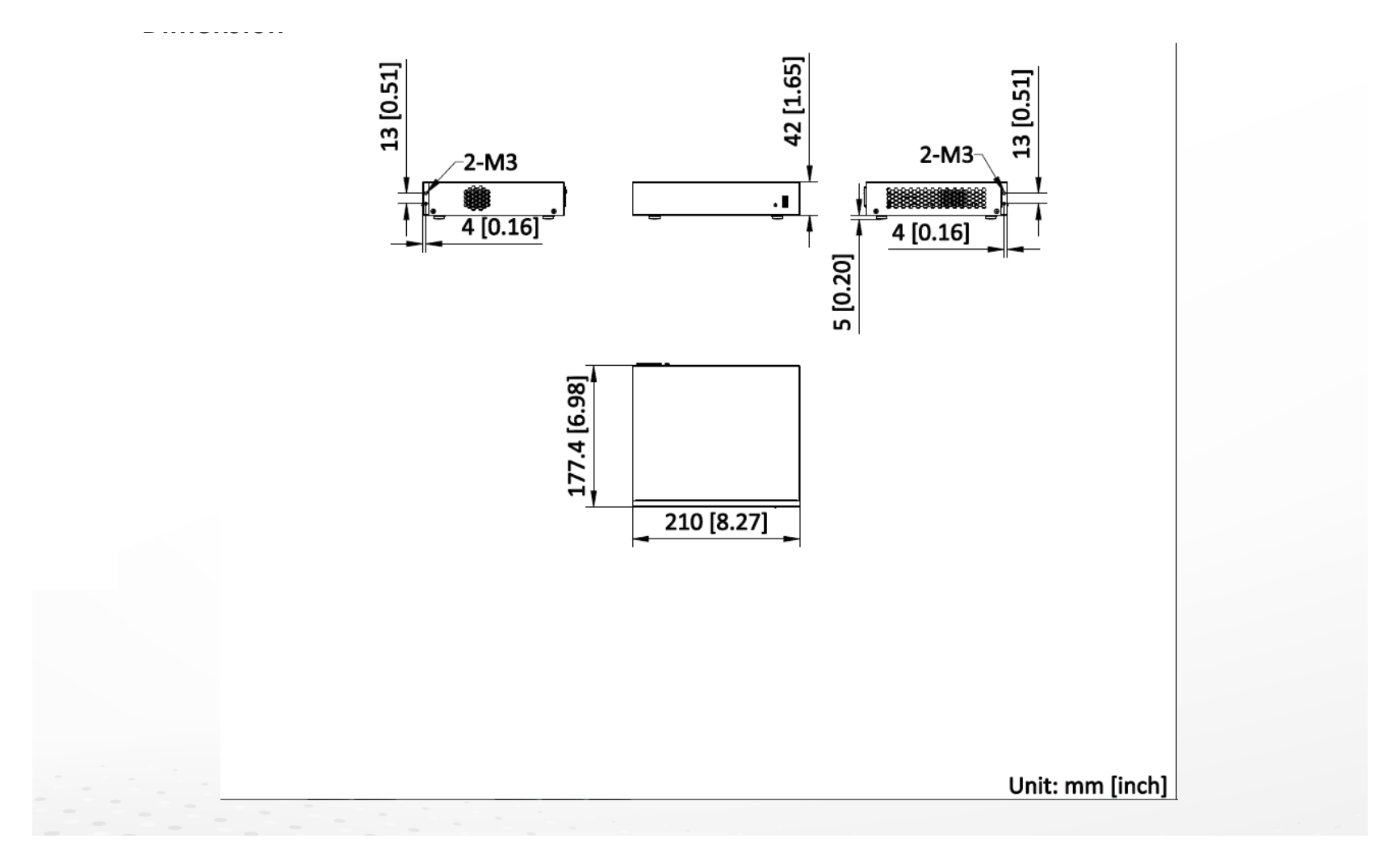

尺寸	210 mm × 180 mm × 42 mm (8.27 inch × 7.09 inch × 1.65 inch) 1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green
包裝清單	Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control
Audio Input Interfaces	1
Audio Input Interface Type	1 channel of embedded HDMI input
Audio Output Interfaces	1
Audio Output Interface Type	3.5 mm audio output
Video Input Interfaces	1
Video Input Interface Type	HDMI 1.4
Max. Video Input Resolution	1080P HDMI 1.4 port:
Max. resolution: 1920 × 1200@60	Hz Min. resolution: 320 × 180@60 Hz
Video Input Resolution	Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported. Processing depth: 8 bit Sampling format:
Video Input Processing Feature	RGB: 444 YUV: 444 YUV: 422
Max. Video Output Resolution	1300000 Single port load 650000,
Loading Capacity for Video	Width 144 - 5120,
Output to LED	Height 64 - 5120, Width must be a multiple of 2 and height must be a multiple of 1
LED Loading Interfaces	2
LED Loading Interface Type	RJ-45 Mini loading: single port load 650000 Standard loading: single port load 2925000 (only available on network ports 1 and 2)
Remote Control	Supports IR remote control +: increase brightness
按鈕	-: decrease brightness Source: change signal source 1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port
Serial Interface	(green Phoenix contact) Baud rate: 115200, data bit: 8 Active: The device is running.
指示燈	Source: The signal source is accessed. Error: The device operation exception occurs. On: The device is started and running. Off: The device is not powered on or is not started. 1 × 3.5 mm connector Supports the access of IR remote control.
