6km：±0.2m； 12km：±0.4m； -200℃ ~800℃(actual temperature monitoring capability depends on the selected fiber optic). 3km：±0.5℃ ；
Temperature Accuracy
6km：±1°C； 12km：±1°C；
Temperature Resolution
0.1℃ 3km：0.2m；
Spatial Resolution
6km：0.4m； 12km：0.8m；
Sampling Interval
0.1m
Partition Quantity
≤1000 per channel ，it is configurable
Alarm Response Time
≤5s per channel Constant Temperature Alarm, Temperature Rise Alarm, Temperature Drop Alarm, Temperature Difference Alarm Power indicator: Solid blue: power on Light off: power off Running indicator: Solid blue: program running normally Flashing blue: program running abnormally Fault indicator: Light off: all-in-one module running normally Solid yellow: all-in-one module error Tamper indicator: Sol
Buzzer
When the alarm information is processed or the clear alarm/mute button is pressed, the buzzer can be muted.
2 power input interface with 100~240V AC power input 1 RJ45 1000 M network interface, 1 RS-232 interface, Function Interface 2 RS-485 interfaces, 2 USB 3.0 interfaces
Alarm Out
32 relay outputs
材質
Metal
供電
100-240V～50/60Hz 0.5A
顏色
Black
功耗
＜35 W
工作溫度
-15 °C to 55 °C (5 °F to 131 °F)
Laser Classification
Class 1
工作濕度
0% to 95% (± 2%)
尺寸

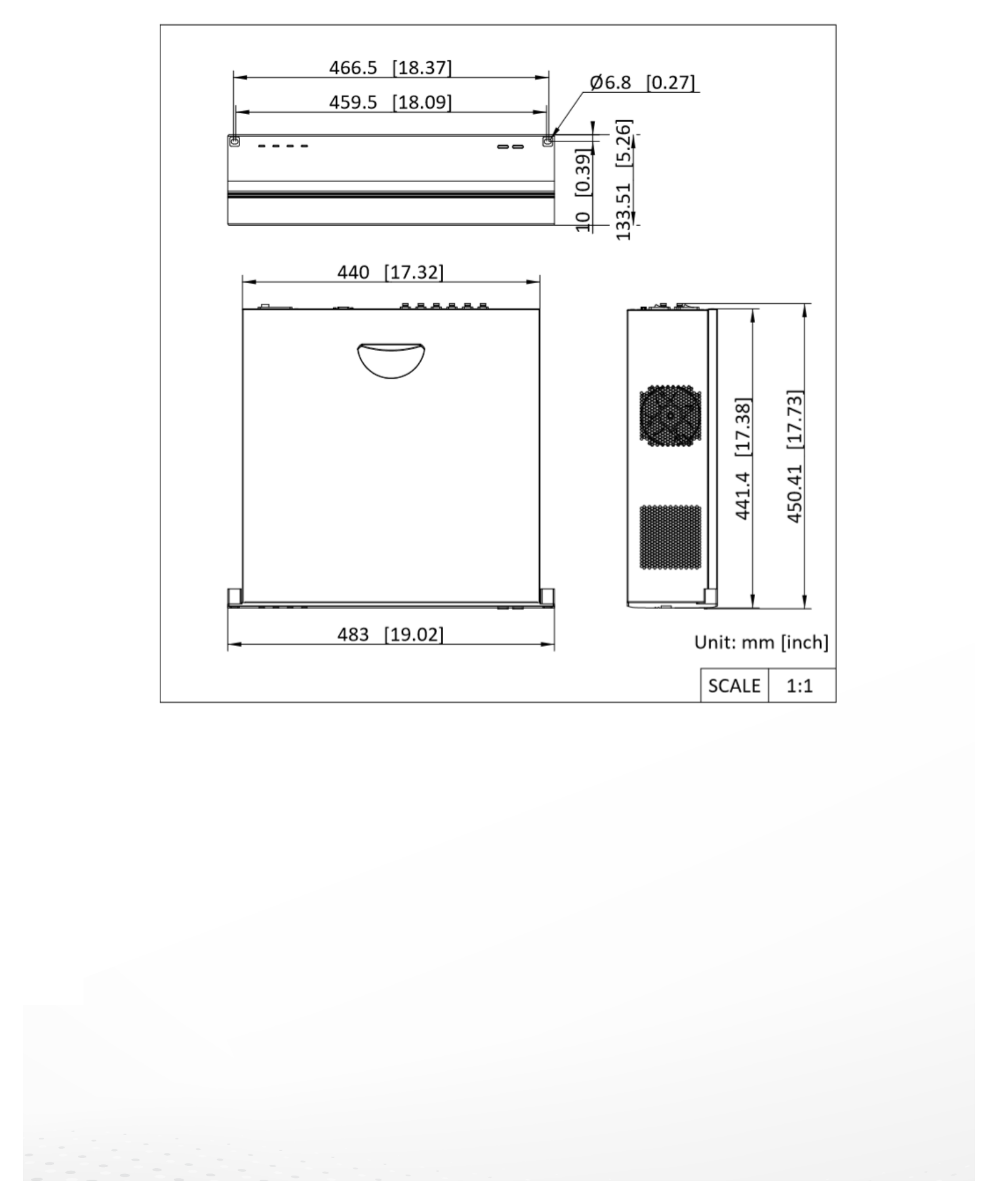

133.51mm x 483mm x 450.41mm((5.26" × 19.02" × 17.73"))
兩者主要規格分別：供電方面，DS-QFT0312H 係 100-240V～50/60Hz 0.5A，NS-0526P-225(B) 係 100-240 V AC, 50/60 Hz, Max. 4 A；工作溫度方面，DS-QFT0312H 係 -15 °C to 55 °C (5 °F to 131 °F)，NS-0526P-225(B) 係 0 °C to 45 °C (32 °F to 113 °F)；工作濕度方面，DS-QFT0312H 係 0% to 95% (± 2%)，NS-0526P-225(B) 係 5% to 95% (no condensation)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 NS-0526P-225(B) 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
