| • E-2434 | (3.4 GHz-5.0 GHz, 12 MB Cache， 4 Cores, 8 Threads ) |
|---|
| • E-2468 | (2.6 GHz-5.2 GHz, 24 MB Cache， 8 Cores, 16 Threads ) • Support single 16GB/32GB DDR5 UDIMM, 4400MT/s ECC • Slots: 4 x DDR5 DIMM slots, supports UDIMM 4x32 GB MAX • 2TB/ 4TB/ 8TB/ 12TB/ 16TB/22TB 7.2K SATA Hot-plug HDD • 480GB/ 960GB/ 1.92TB/ 3.84TB SATA Hot-plug SSD • Slots: 4 x 3.5-inch SAS/SATA (HDD/SSD) slots, supports HDD 4 x 22TB max (Empty slots do not include hard drive bays by default) |
|---|
| Storage Controller | • S160 Chipset with OS software Raid (support RAID 0/1) |
|---|
| 操作系統 | • Winserver 2019 / 2022 multilingual version pre-installed (Optional) Up to 2 PCIe Gen4 slots on the Gen4 Riser |
|---|
| PCIe Slots | • Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile • Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile |
|---|
| Notes | • Support flexible customization, including CPU, memory, hard dive, OS, etc •iDRAC9 •iDRAC Direct •iDRAC RESTful API with Redfish •iDRAC Service Manual •OpenManage Enterprise •OpenManage Power Manager plugin •OpenManage Service plugin •OpenManage Update Manager plugin •CloudIQ for PowerEdge plug in •OpenManage Enterprise Integration for VMware vCenter •OpenManage Integration for Microsoft System C |
|---|
| 安全 | •Secure Erase •Secured-core server •Silicon Root of Trust •System Lockdown (requires iDRAC9 Enterprise or Datacenter) •TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ • 1 x iDRAC Direct (Micro-AB USB) port Front Ports • 1 x USB 2.0 • 2× LAN10/100/1000 • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 Rear Ports • 1 x USB 3.2 Gen1 • 1 x VGA • 1 x Serial |
|---|
| 淨重 | 13.23 Kg (29.17 lb) |
|---|
| 毛重 | 25 kg (55.11 lb) |
|---|
| 尺寸 | 482.0 mm × 42.8 mm ×598.9 mm (18.97'' × 1.68'' ×23.57'') |
|---|

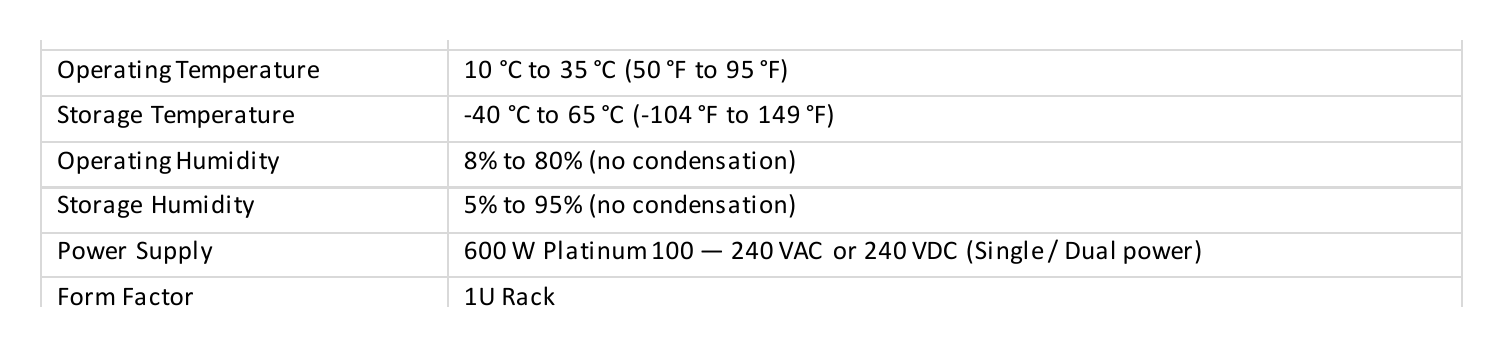

| 工作溫度 | 10 °C to 35 °C (50 °F to 95 °F) |
|---|
| 儲存溫度 | -40 °C to 65 °C (-104 °F to 149 °F) |
|---|
| 工作濕度 | 8% to 80% (no condensation) |
|---|
| Storage Humidity | 5% to 95% (no condensation) |
|---|
| 供電 | 600 W Platinum 100 — 240 VAC or 240 VDC (Single / Dual power) |
|---|
| Form Factor | 1U Rack Available Code 310818565 E-2434×1/16GB DDR5×1/2T 7.2K SATA×2(RAID_1)/1GbE×2/600W(Single power)/R360/1U/No DVD/winserver 2019/3 years PSP 310818583 E-2434×1/16GB DDR5×1/2T 7.2K SATA×2(RAID_1)/1GbE×2/600W(Dual power)/R360/1U/No DVD/winserver 2019/3 years PSP 310818584 E-2434×1/16GB DDR5×1/2T 7.2K SATA×2(RAID_1)/1GbE×2/600W(Dual power)/R360/1U/No DVD/winserver 2022/3 years PSP 310818585 E-243 |
|---|
