| 雙向語音 | 1, integrated in EXT.DEV interface |
|---|
| IP Camera | 4-ch connected via PoE interfaces and 4-ch extendable via PoE switch. |
|---|
| 音訊輸出 | 1, integrated in EXT.DEV interface |
|---|
| Video Output | Main output: 1, integrated in EXT.DEV interface. VGA: 1 |
|---|
| 視頻壓縮 | H.265/H.264 |
|---|
| 音訊壓縮 | G.711a/G.711u/G.722.1/G.726 |
|---|
| 音訊碼率 | 16 Kbps |
|---|
| 碼流類型 | Video, video & audio |
|---|
| Dual Stream | Supported |
|---|
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps WI58 model: 2 × 5.8 G Wi -Fi antenna |
|---|
| WiFi | (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.) 1 × 4G card slot, 1 × FAKRA antenna responsible for any issue caused by using general SIM cards. |
|---|
| SD Card Storage | 1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering ） 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB |
|---|
| HDD/SDD | HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional) Front panel :1 ×10M/100M RJ45 Rear panel: 1 × 10M/100M 6-pin aviation connector Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional. |
|---|
| 警報輸入 | 4 high/low level signal inputs, 1 pulse signal input, 1 button input |
|---|
| 警報輸出 | 2 relay signal outputs |
|---|
| Sensor-in | 4 high/low level signal inputs |
|---|
| Serial Port | 1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface) |
|---|
| GNSS (Global Navigation Satellite | GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 |
|---|
| System) | ×FAKRA antenna |
|---|
| G-Sensor | Built-in |
|---|
| 供電 | +9 to +36 VDC |
|---|

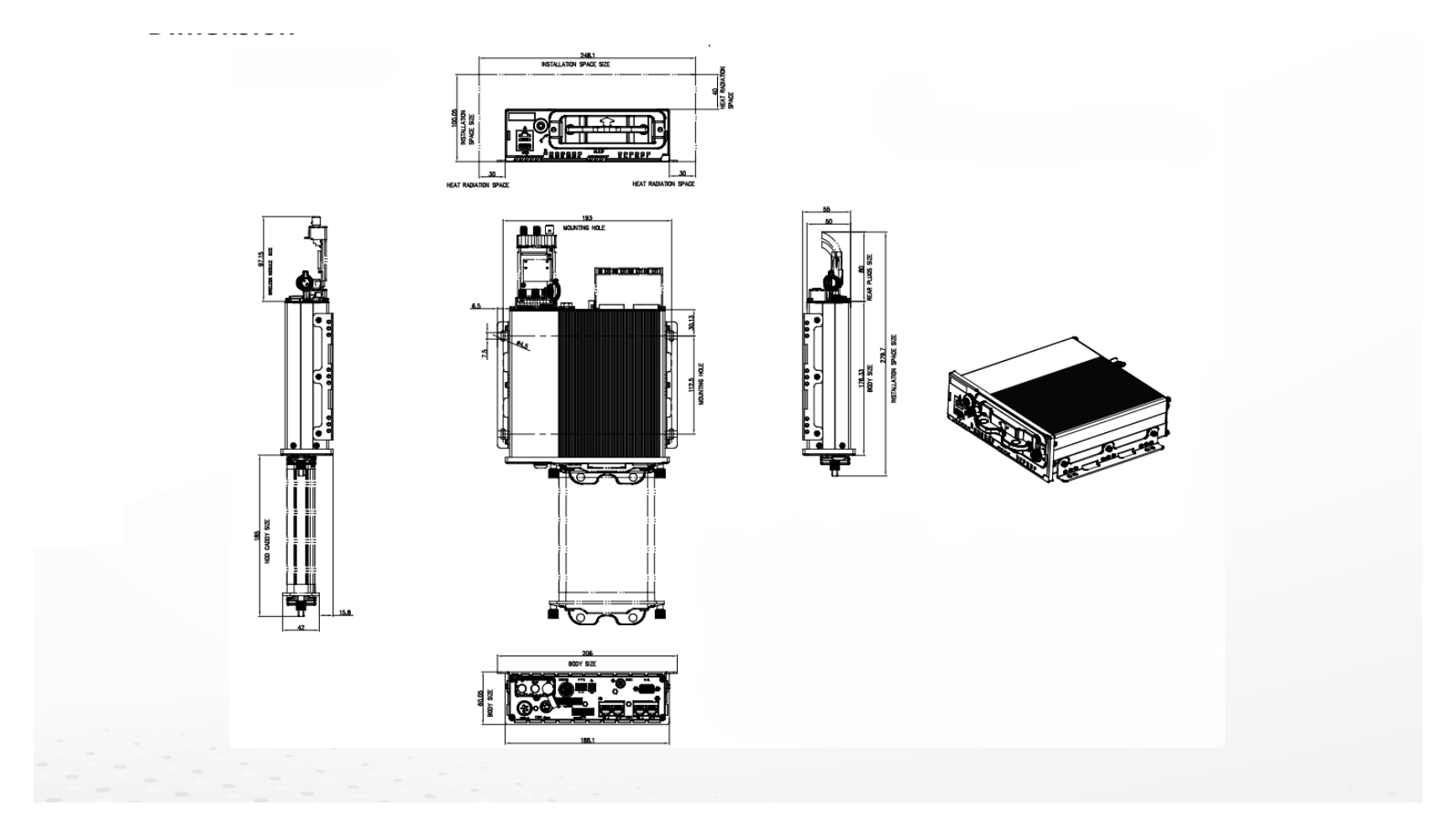

| Product Dimension | 206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37") |
|---|
| 功耗 | Full load: ≤ 55 W Note: Without peripheral and storage media ≤ 20 W |
|---|
| 工作溫度 | -25 °C to +70 °C (-13 °F to +158°F) |
|---|
| 工作濕度 | 10% to 95% (non-condensing) |
|---|
| 操作方式 | Mouse, IR remote control, Web control, and touchscreen |
|---|
| Certification | CE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2 Weight (Without Storage 1.66 kg (3.67 lb.) Media) FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: |
|---|
| EMC | 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021) |
|---|
| Safety | CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 ) |
|---|
| Environment | CE-RoHS (2011/65/EU and amendment 2015/863/EU) EN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, |
|---|
| Automotive and Railway | EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10) |
|---|
