| 影像感測器 | 2 sensors, 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/25 s to 1/100000 s Channel 1: 10 to 50 mm, horizontal FOV 32.2° to 7.8°, vertical FOV 18.1° to 4.4°, |
|---|
| 鏡頭及視場角 | diagonal FOV 37.1° to 8.95°, Channel 2: 8 mm, horizontal FOV 51.7°, vertical FOV 28.1°, diagonal FOV 60.2° |
|---|
| 對焦 | 10 to 50 mm: Auto; 8 mm: fixed |
|---|
| 光圈類型 | 10 to 50 mm: Auto-iris; 8 mm: fixed Iris |
|---|
| 光圈 | 10 to 50 mm: F1.7; 8 mm: F1.6 |
|---|
| Built-in Supplement Light Type | IR light |
|---|
| Supplement Light Number | 8 |
|---|
| Built-in Supplement Light Range | Up to 50 m |
|---|
| 紅外波長 | 850 nm |
|---|
| Working Frequency | 79 to 81 GHz |
|---|
| Modulation Waveform | FMCW |
|---|
| Detection Distance | Up to 50 m |
|---|
| Speed Measuring Range | up to 120 Km/h |
|---|
| Horizontal Detection Angle | ± 35° |
|---|
| Vertical Detection Angle | ± 10° |
|---|
| Coverage Lanes | Up to 3 lane(s) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288) Main stream: |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IGMP, QoS, IPv4/IPv6, UDP, SSL/TLS, ISUP, ARP |
|---|
| API | ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) Password protection, Complicated password, HTTPS encryption, Watermark, IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings, Security audit log, TLS 1.2, 1.3, Host authentication (MAC address) |
|---|
| 瀏覽器 | Chrome V61+, IE9 to IE11, Firefox V41+, Edge Saturation, Brightness, Contrast, Sharpness, Gain, White balance, AGC, Adjustable by client software or web browser. |
|---|
| 日夜模式 | Schedule, Auto, Manual |
|---|
| 寬動態 WDR | 140 dB |
|---|
| 影像增強 | BLC, 3D DNR |
|---|
| 網絡接口 | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|
| 機身儲存 | Built-in memory card slot, supporting microSD/SDHC/SDXC card card, up to 512GB |
|---|
| 警報 | 1 input(s), 1 output(s) |
|---|
| RS-485 | 1 RS-485 |
|---|
| Coverage | Up to 3 lane(s) Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pac |
|---|
| No License Plate Detection | Supported |
|---|
| Vehicle Type | Car, Van, Bus, Truck, Light Truck, SUV(MPV), Pickup, Motorcycle, Tricycle Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery |
|---|
| Vehicle Manufacturer | Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, |
|---|
| Capture Speed Range | 5 to 120 km/h |
|---|
| 人臉抓拍 | Channel 1 supported |
|---|
| 供電 | DC 36 V ±20%, 1.2 A, max. 42 W, two-core terminal block |
|---|
| 材質 | Aluminum alloy |
|---|

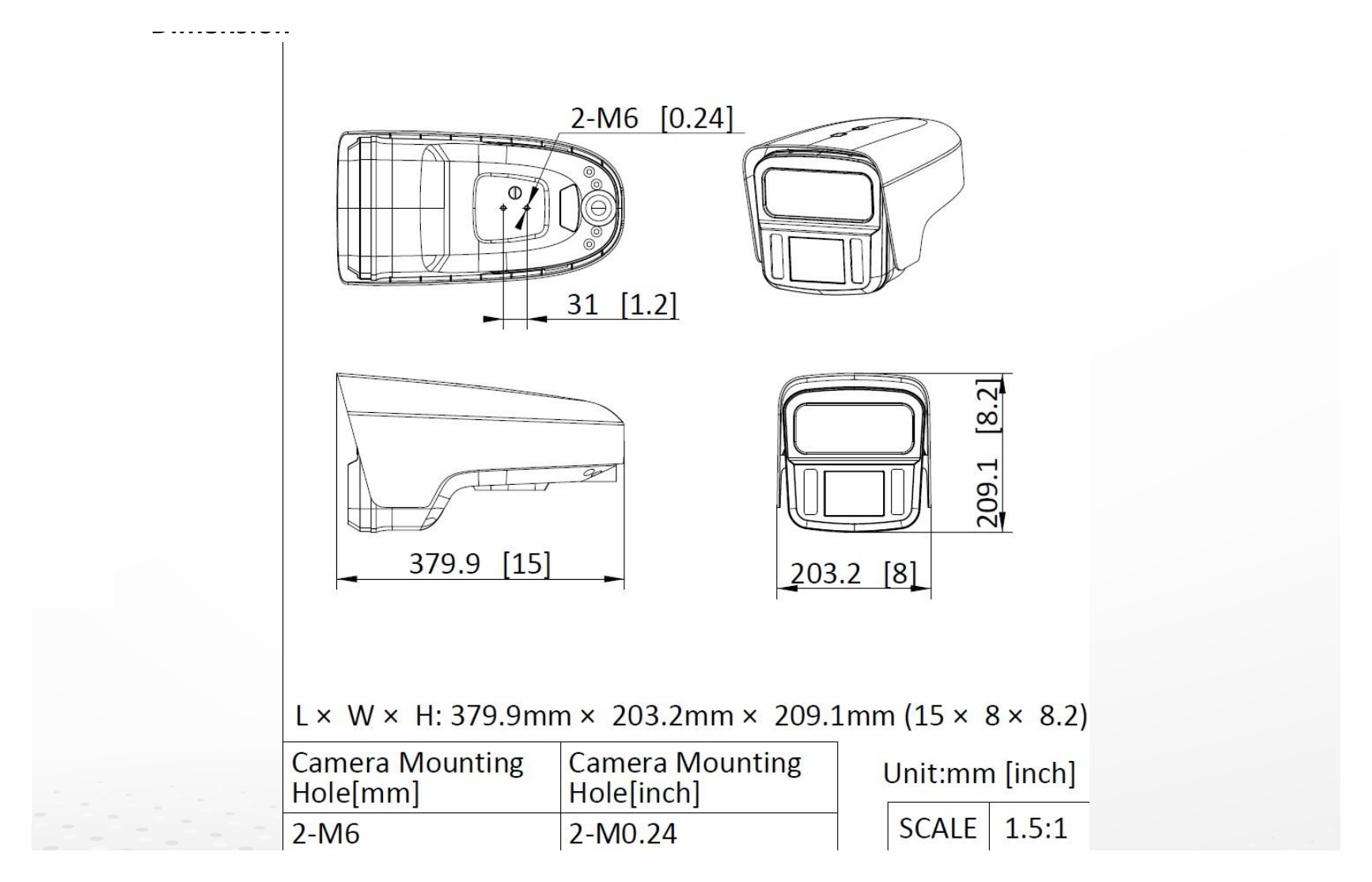

| 尺寸 | 379.9 mm × 203.2 mm × 209.1 mm (15" × 8" × 8.2") (L × W × H) |
|---|
| 包裝尺寸 | 516 mm × 378 mm × 328 mm (20.3" × 14.9" × 12.9") (L × W × H) |
|---|
| 重量 | Approx. 5 kg (11.02 lb.) |
|---|
| 連包裝重量 | Approx. 7.2 kg (15.87 lb.) |
|---|
| 工作環境 | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
|---|
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 95% or less (non-condensing) |
|---|
| 一般功能 | One-key reset,Three streams, Privacy mask, Heartbeat, Password protection 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish CE-RED: EN 301489-1 V2.2.3, EN 301489-3 V2.3.2, EN 302264 V2.1.1, EN IEC 62311: 2020 CE-EMC: EN 55032: 2015/A11: 2020 + A1: 2020, EN IEC61000-3-2: 2019/A1: 2021, EN 61000-3-3: 2013 + A1: 2019/A2: 2021, EN 50130-4: 2011 + A1: 2014 |
|---|
| Safety | CB: IEC 62368-1: 2018, CE-LVD: EN 62368-1: 2014 + A11: 2017 |
|---|
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IK10: IEC 62262: 2002, IP66: IEC 60529-2013 |
|---|
