| | All-in-one PoE kit contains everything required for small video surveillance scenarios. |
|---|
| 影像感測器 | 1/2.4" Progressive Scan CMOS |
|---|
| 最大解像度 | 3200 × 1800 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 mm |
|---|
| 鏡頭及視場角 | Horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 |
|---|
| DORI 偵測距離 | D: 76 m, O: 30 m, R: 15 m, I: 7 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Interface (Profile S, Profile T, Profile G), ISAPI, SDK TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200, HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+ |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 4 programmable rectangle privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 內置麥克風 | Yes, 1 built-in microphone |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture 12VDC ± 25%, 0.41A, 5W MAX PoE(IEEE 802.3af class 3), 6.5W MAX |
|---|
| 材質 | Metal |
|---|
| 尺寸 | 179 mm × 67.4 mm × 69.1 mm (7.1" × 2.7" × 2.7") |
|---|
| 重量 | Approx. 450 g (1.0 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | Heartbeat, anti-banding, mirror, password protection, password reset via email CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC |
|---|
| EMC | 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 Camera Typical Application |
|---|
| Level | Description Hikvision products at this level are equipped for use in areas where professional |
|---|
| Top-level protection | anti-corrosion protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and more. Hikvision products at this level are equipped for use in areas with moderate |
|---|
| Moderate protection | anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as areas affected by acid rain. Hikvision products at this level are equipped for use in areas where no specific No specific protection anti-corrosion protection is needed. Camera Dimension Camera Accessory |
|---|
| DS-1275ZJ-SUS | DS-1276ZJ-SUS DS-1280ZJ-XS |
|---|
| Vertical pole mount | Corner mount Junction box NVR Specification |
|---|
| Person/Vehicle Analysis | 4-ch |
|---|
| IP 視頻輸入 | 8-ch |
|---|
| 入口頻寬 | 80 Mbps |
|---|
| 出口頻寬 | 80 Mbps 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|---|
| 視頻輸出模式 | HDMI/VGA simultaneous output |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
|---|
| 解碼格式 | H.265+/H.265/H.264+/H.264 |
|---|
| 錄影解像度 | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|---|
| 同步回放 | 8-ch |
|---|
| 解碼能力 | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 遠程連接 | 32 TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|---|
| 接口 | 8-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|---|
| 供電 | ≤ 75 W |
|---|
| 標準 | IEEE 802.3 af/at |
|---|
| SATA | 1 SATA interface |
|---|
| 容量 | 2TB HDD pre-installed, up to 8 TB capacity for SATA interface |
|---|
| USB 接口 | 2 × USB 2.0 |
|---|
| 警報輸入/輸出 | N/A |
|---|
| 功耗 | ≤ 10 W (without HDD and PoE off) |
|---|
| 工作溫度 | -10 °C to 55 °C (14 °F to 131 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|

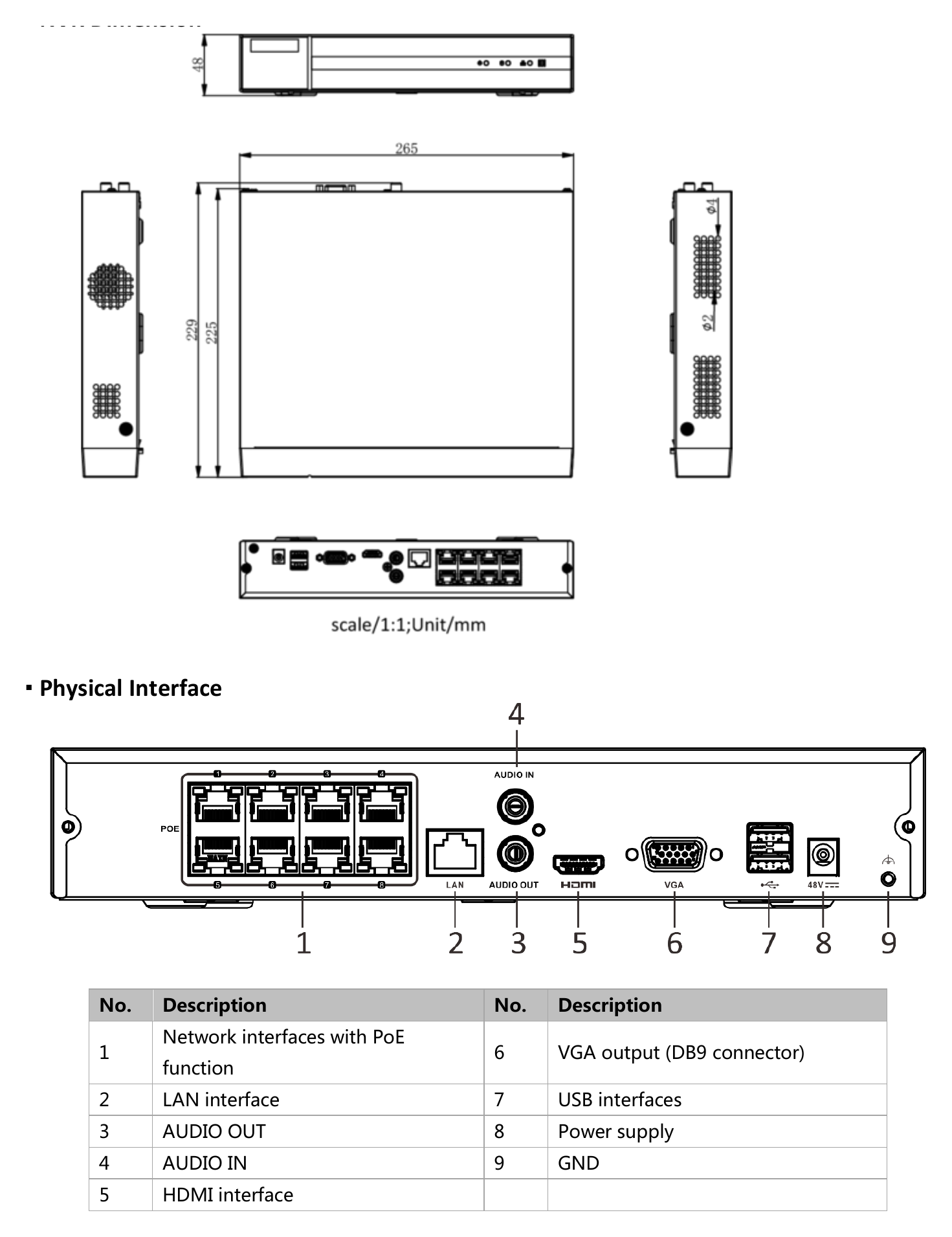

| No. | Description No. Description Network interfaces with PoE 1 6 VGA output (DB9 connector) 2 LAN interface 7 USB interfaces 3 AUDIO OUT 8 Power supply 4 AUDIO IN 9 GND 5 HDMI interface Models included in the kit |
|---|
