| 影像感測器 | 1/2.9" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 快門速度 | 1/3 s to 1/100,000 s |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121° 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.6 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
|---|
| 補光類型 | IR,White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | Open Network Video Interface (Profile S, Profile T),ISAPI,SDK |
|---|
| 網絡協議 | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200,HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 日夜模式 | Day,Night,Auto,Schedule |
|---|
| 影像增強 | BLC,HLC,3D DNR Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 內置麥克風 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
|---|
| 聯動方式 | Upload to FTP,send email,notify surveillance center,trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W,Ø 5.5 mm coaxial power plug,reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
|---|
| 材質 | Metal & Plastic |
|---|

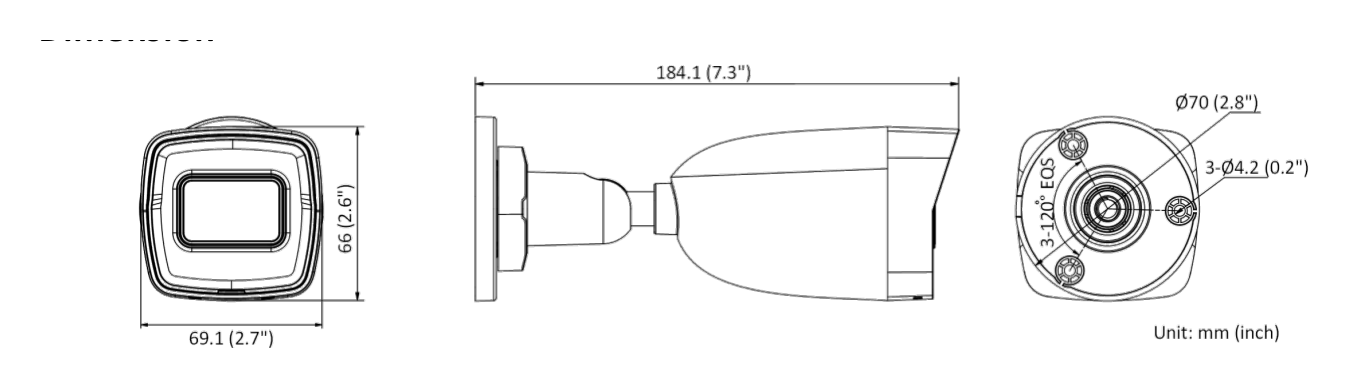

| 尺寸 | 184.1 mm × 66 mm × 69.1 mm (7.3" × 2.6" × 2.7") |
|---|
| 包裝尺寸 | 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6") |
|---|
| 重量 | Approx. 265 g (0.6 lb.) |
|---|
| 連包裝重量 | Approx. 495 g (1.1 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 語言 | English, Ukrainian |
|---|
| 一般功能 | Heartbeat,anti-banding,mirror,password protection,password reset via email FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN |
|---|
| EMC | 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
|---|
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
