| 影像感測器 | 1/2.9" Progressive Scan CMOS Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with |
|---|
| 最大解像度 | 2560 × 1440 |
|---|
| 快門速度 | 1/25 s to 1/10000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108° 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87° |
|---|
| 光圈 | F1.6 |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed 2.8 mm: 1 m to ∞ 4 mm: 1.5 m to ∞ 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 30 m |
|---|
| 紅外波長 | 850 nm |
|---|
| 智能補光 | Yes 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288) 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288) Main stream: H.265/H.264, Sub-stream: H.265/H.264 |
|---|
| 視頻碼率 | 256 Kbps to 2 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| 音訊壓縮 | G.711, AAC-LC |
|---|
| 音訊碼率 | 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz, 16 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS |
|---|
| 同時取流 | Up to 4 channels |
|---|
| API | ONVIF, SDK Password protection, HTTPS encryption, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface |
|---|
| 用戶管理 | Only one user: administrator |
|---|
| 客戶端 | iVMS-4200, HiLookVision, Hik-Partner-Pro |
|---|
| Transfer Rate | 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps |
|---|
| Wi-Fi Protocol | 802.11n: OFDM, 802.11b: DSSS, 802.11g: OFDM |
|---|
| Frequency Range | 2.412 GHz to 2.472 GHz |
|---|
| Channel Bandwidth | 20 MHz |
|---|
| Modulation | 802.11b: CCK, QPSK, BPSK, , 802.11g: OFDM, , 802.11n: OFDM Up to 120 m (The performance varies based on actual environment) |
|---|
| Encryption Mode | WPA-PSK/WPA2-PSK |
|---|
| Antenna | 2 Antennas |
|---|
| 圖像設定 | Saturation, brightness, contrast, and sharpness adjustable by client software |
|---|
| 日夜模式 | Auto, Schedule, Day, Night |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 內置麥克風 | Yes |
|---|
| Built-in Speaker | Yes |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 重設鍵 | Yes |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (support alarm triggering by specified target type (human and vehicle)), exception Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite 12 VDC ± 25%, 0.58 A, max. 7 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, A switching adapter is included in the package. |
|---|
| 語言 | English |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | heartbeat, mirror |
|---|
| 材質 | Front cover: metal, back cover: plastic |
|---|

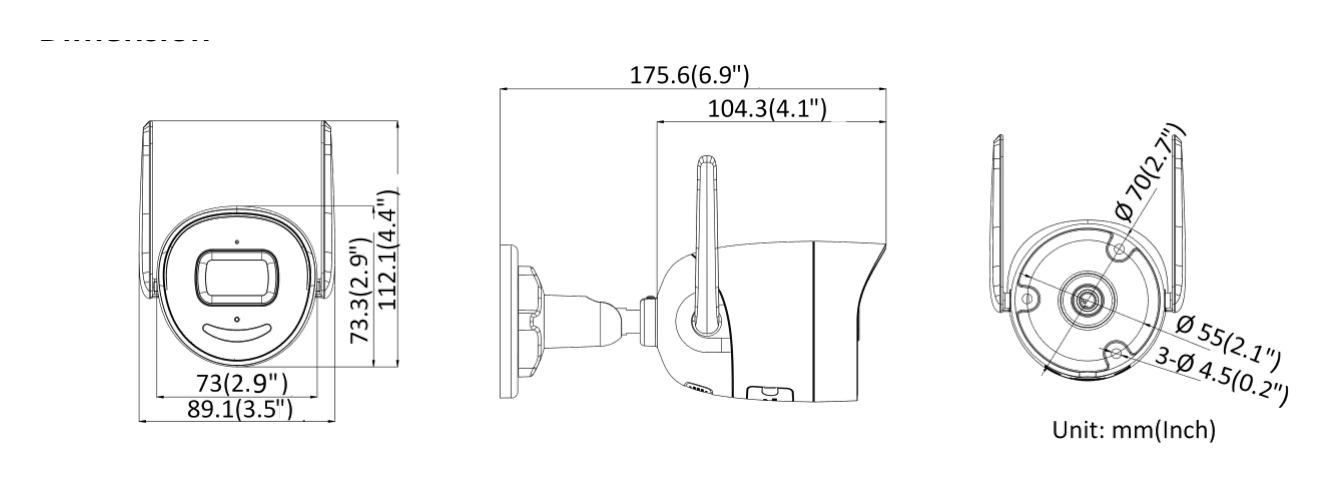

| 尺寸 | 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5") |
|---|
| 包裝尺寸 | 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9") |
|---|
| 重量 | Approx. 345 g (0.8 lb.) |
|---|
| 連包裝重量 | Approx. 635 g (1.4 lb.) CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
|---|
| RF | CE-RED (EN 301489-1 V2.1.1(BT or 2.4G) CE-LVD: EN 62368-1: 2014/A11: 2017, CB: IEC 62368-1: 2014+A11 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU |
|---|
| 防護等級 | IP66: IEC 60529-2013 |
|---|
