HILOOK IPC-B420H 安裝、保養、維修

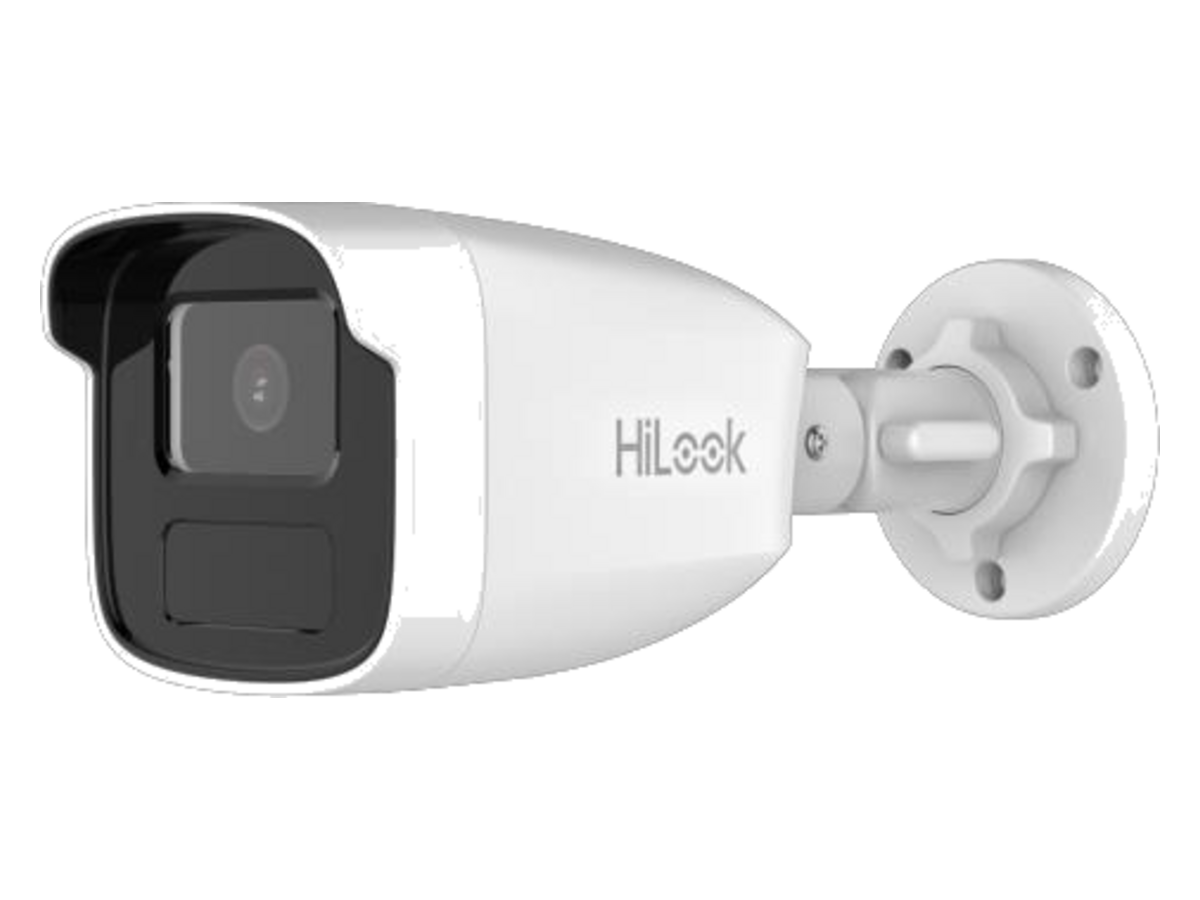

Name: HILOOK IPC-B420H 2MP 槍型網絡攝影機
Brand: HiLook
SKU: IPC-B420H

產品簡介

HiLook IPC-B420H 為2MP槍型網絡攝影機，適合舖頭、寫字樓走廊、貨倉出入口等日常監控場景。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-B420H 香港價格連安裝報價。

2MP高清畫質：重要範圍（收銀處、貨架、車牌位）睇得夠細緻
紅外夜視最遠50 m：夜晚/密閉車庫都有清晰黑白畫面，配合IR Cut Filter日夜自動切換唔會偏色
4/6mm雙焦距鏡頭：舖頭/走廊/貨倉唔同空間闊度都揀到啱視角，唔使另配鏡頭
IP67防水等級：室外簷篷、天台、後巷都適合安裝，唔怕風吹雨打

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.7" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
快門速度	1/3 s to 1/100, 000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 4 and 6 mm optional 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6° 6 mm, horizontal FOV 54.6°, vertical FOV 30.7°, diagonal FOV 62.7°
鏡頭接口	M12
光圈類型	Fixed 4 mm, F2.0 6 mm, F1.6 4 mm, D: 51.1 m, O: 20.3 m, R: 10.2 m, I: 5.1 m 6 mm, D: 85.3 m, O: 33.9 m, R: 17.1 m, I: 8.5 m
補光類型	IR
補光距離	Up to 50 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Main Profile
感興趣區域 ROI	1 fixed region for main stream TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
同時取流	Up to 6 channels
API	Open Network Video Interface, ISAPI
用戶管理	Up to 32 users. 3 levels: administrator, operator and user
客戶端	iVMS-4200, Hik-Connect Plug-in required live view: IE 10+
瀏覽器	Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client Image Settings software or web browser.
日夜模式	Day, Night, Auto, Schedule
寬動態 WDR	Digital WDR
影像增強	BLC, 3D DNR
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
基本事件	Motion detection, video tampering alarm, exception
聯動方式	Upload to FTP, notify surveillance center, send email, trigger capture 12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Camera Material	Front cover: metal, body: plastic, bracket: metal

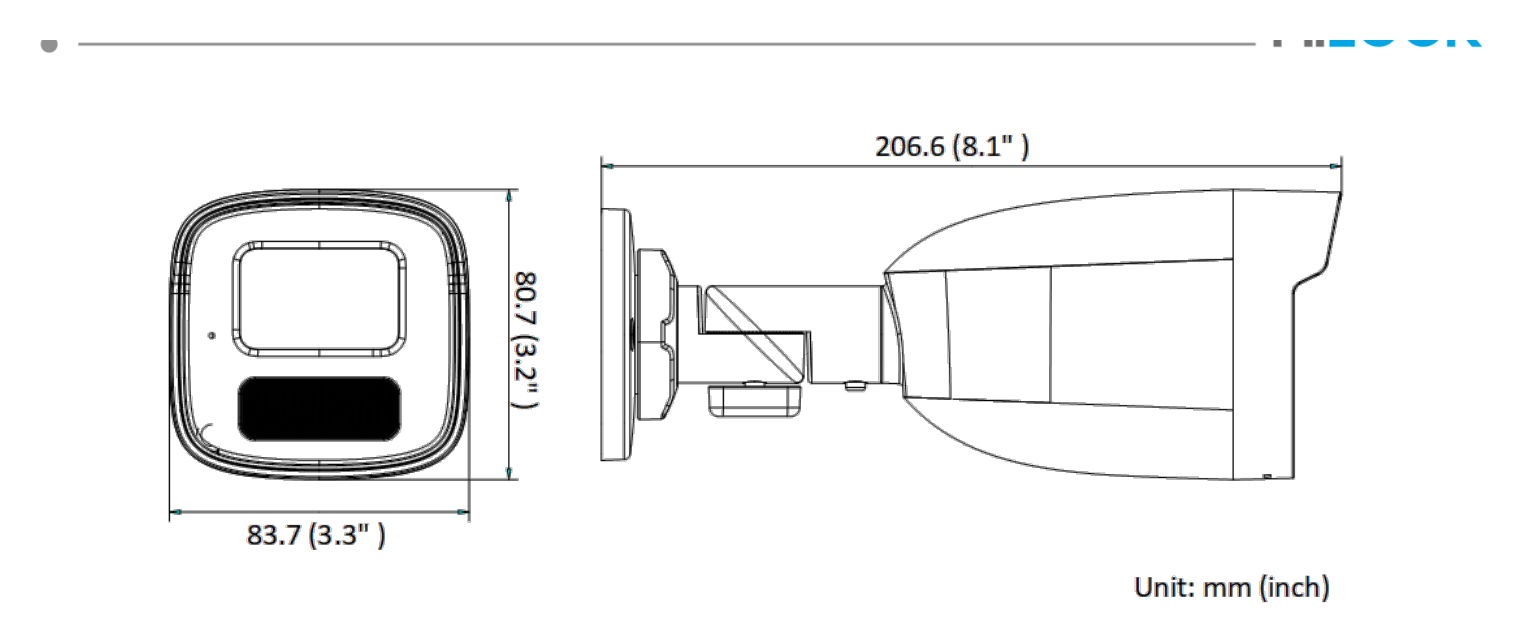

尺寸	83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
包裝尺寸	260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
重量	Approx. 420 g (0.9 lb.)
連包裝重量	Approx. 668 g (1.5 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) Conditions
介面語言	English, Ukrainian Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP General Function address filter FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014; KC: KN 32: 2015, KN 35: 2015
Safety	CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU;
Environment	WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
