HILOOK IPC-B420HA-LU 安裝、保養、維修

Name: HILOOK IPC-B420HA-LU 2MP Smart Hybrid Light雙光源 槍型網絡攝影機
Brand: HiLook
SKU: IPC-B420HA-LU

產品簡介

HiLook IPC-B420HA-LU 為2MPSmart Hybrid Light智能雙補光槍型網絡攝影機，適合舖頭、寫字樓走廊、貨倉出入口等日常監控場景。配備Smart Hybrid Light智能雙光源，白光同紅外自動切換，兼顧警示同夜視效果；HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-B420HA-LU 香港價格連安裝報價。

2MP高清畫質：重要範圍（收銀處、貨架、車牌位）睇得夠細緻
Smart Hybrid Light雙光源：白光+紅外自動切換，夜晚有人行過會自動補光警示，兼顧全彩同紅外優點
4/6mm雙焦距鏡頭：舖頭/走廊/貨倉唔同空間闊度都揀到啱視角，唔使另配鏡頭
人車偵測：智能分辨人同車輛先警報，減少寵物、樹葉擺動等誤報
IP67防水等級：室外簷篷、天台、後巷都適合安裝，唔怕風吹雨打

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

IPC-B420HA-LU HiLook 2MP Smart Hybrid Light雙光源槍型網絡攝影機產品圖片

詳細規格

影像感測器	1/2.9" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 4 and 6 mm optional 4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99° 6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.6 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m
補光類型	IR,White Light
補光距離	Up to 50 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile,Main Profile,High Profile
H.265 類型	Main Profile
碼率控制	CBR,VBR
感興趣區域 ROI	1 fixed region for main stream
Audio Type	Mono sound
環境噪音過濾	Yes
音訊取樣率	8 kHz/16 kHz
音訊壓縮	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, watermark, basic and digest
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
網絡協議	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP Up to 32 users 3 user levels: administrator, operator, and user
客戶端	iVMS-4200,HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+
寬動態 WDR	Digital WDR
信噪比 SNR	≥ 52 dB
日夜模式	Day,Night,Auto,Schedule
影像增強	BLC,HLC,3D DNR Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
隱私遮蔽	4 programmable polygon privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
內置麥克風	Yes Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
聯動方式	Upload to FTP,send email,notify surveillance center,trigger capture 12 VDC ± 25%, 0.5 A, max. 6 W,Ø 5.5 mm coaxial power plug,reverse polarity
供電	protection, PoE: IEEE 802.3af, Class 3, max. 7 W
材質	Metal & Plastic

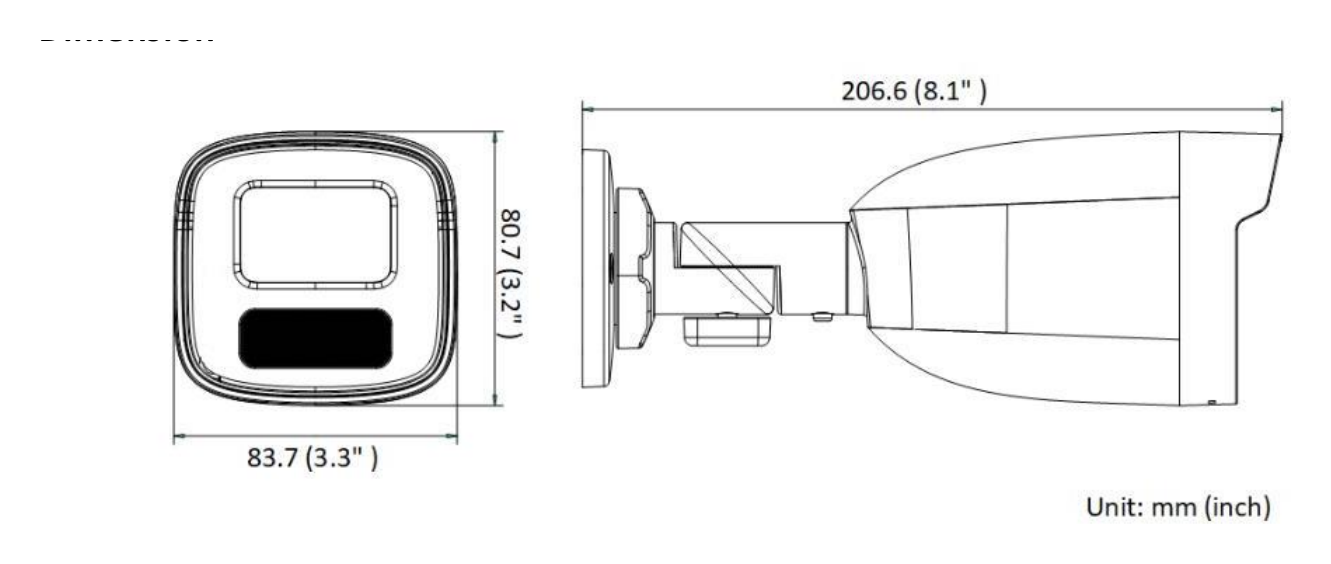

尺寸	83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
包裝尺寸	260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
重量	Approx. 580 g (1.3 lb.)
連包裝重量	Approx. 635 g (1.4 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
語言	English, Ukrainian
一般功能	Heartbeat,anti-banding,mirror,password protection,password reset via email FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
EMC	50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
