HILOOK IPC-B469HA 安裝、保養、維修

Name: HILOOK IPC-B469HA 6MP ColorVu全彩 槍型網絡攝影機
Brand: HiLook
SKU: IPC-B469HA

產品簡介

HiLook IPC-B469HA 為6MPColorVu全彩夜視槍型網絡攝影機，適合舖頭、寫字樓走廊、貨倉出入口等日常監控場景。採用ColorVu全彩技術，夜晚都有清晰彩色畫面，方便辨認衣着顏色、車牌等細節；120dB寬動態令逆光環境都睇得清楚；HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎查詢 IPC-B469HA 香港價格連安裝報價。

6MP全彩ColorVu：全黑環境都有齊色彩畫面，唔使黑白紅外，舖頭/後巷夜晚都睇得清晰
120dB寬動態(WDR)：大門口/落地玻璃呢類逆光/強光位，唔會影到人變晒黑影
2.8/4mm雙焦距鏡頭：舖頭/走廊/貨倉唔同空間闊度都揀到啱視角，唔使另配鏡頭
人車偵測：智能分辨人同車輛先警報，減少寵物、樹葉擺動等誤報
IP67防水等級：室外簷篷、天台、後巷都適合安裝，唔怕風吹雨打

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

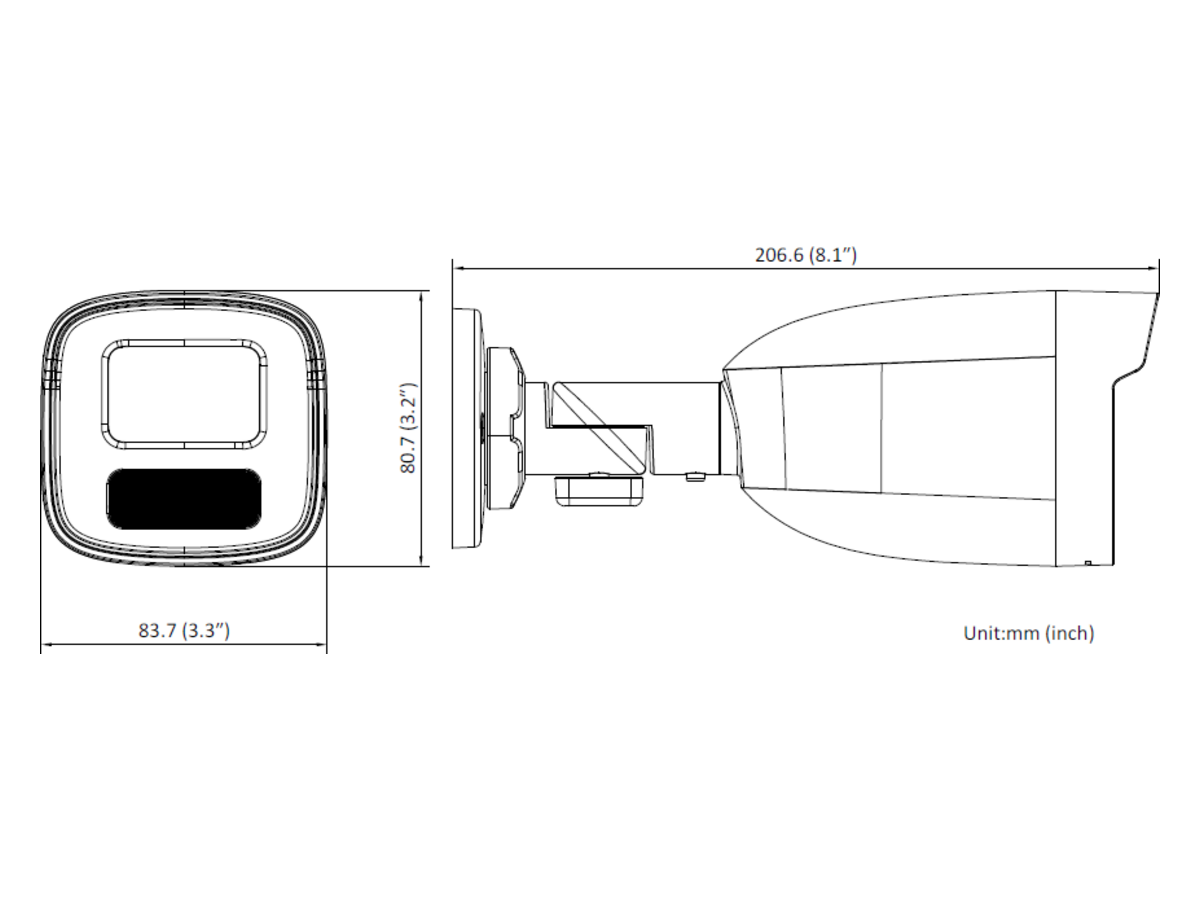

IPC-B469HA HiLook 6MP ColorVu全彩槍型網絡攝影機產品圖片

詳細規格

影像感測器	1/2.4" Progressive Scan CMOS
最大解像度	3200 × 1800
最低照度	Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
快門速度	1/3 s to 1/100,000 s
日夜切換	24/7 color imaging
角度調節	Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV: 117°, vertical FOV: 64°, diagonal FOV: 138° 4 mm, horizontal FOV: 82°, vertical FOV: 45°, diagonal FOV: 95°
鏡頭接口	M12
光圈類型	Fixed
光圈	F1.0 2.8 mm: 2 m to ∞ 4 mm: 3.1 m to ∞ 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 92 m, O: 36 m, R: 18 m, I: 9 m
補光類型	White Light
補光距離	Up to 50 m
智能補光	Yes 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline Profile,Main Profile,High Profile
H.265 類型	Main Profile
碼率控制	CBR,VBR
感興趣區域 ROI	1 fixed region for main stream TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP,UPnP
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S),ISAPI,SDK Up to 32 users 3 user levels: administrator, operator, and user
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
客戶端	iVMS-4200,HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
寬動態 WDR	120 dB
日夜模式	Day,Night,Auto,Schedule
信噪比 SNR	≥ 52 dB
影像增強	BLC,HLC,3D DNR
隱私遮蔽	4 programmable polygon privacy masks
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
聯動方式	Upload to FTP,notify surveillance center,send email,trigger capture 12 VDC ± 25%, 0.48 A, max. 5.8 W,Ø 5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 7 W
材質	Front cover: metal, body: plastic, bracket: metal

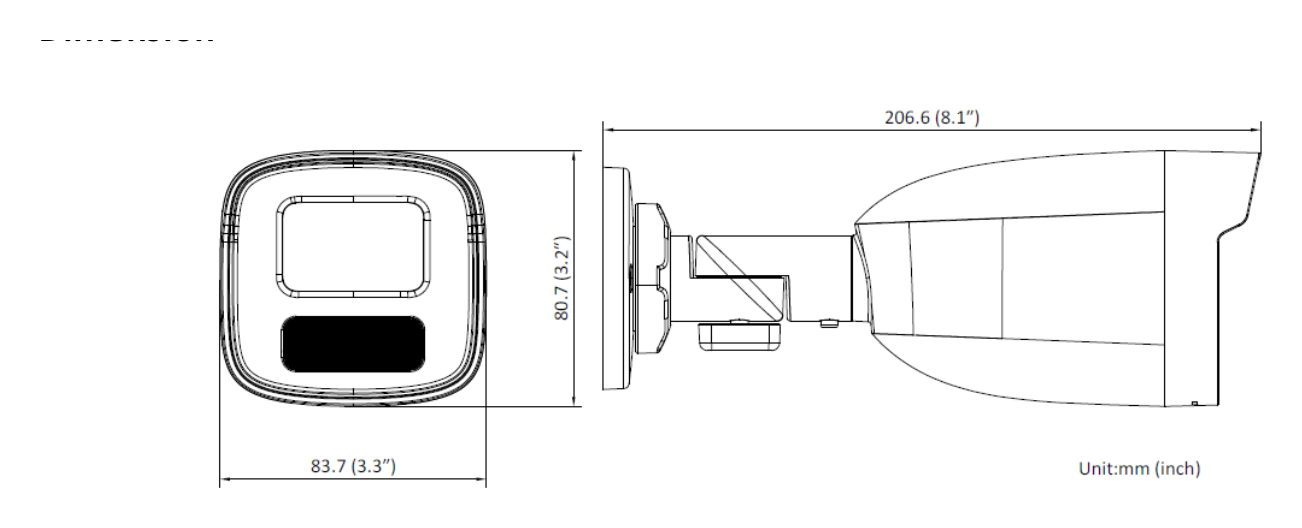

尺寸	83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
包裝尺寸	260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
重量	Approx. 395 g (0.9 lb.)
連包裝重量	Approx. 624 g (1.4 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
語言	English, Ukrainian
一般功能	Heartbeat,anti-banding,mirror,password protection,password reset via email CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
Safety	CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
