| 影像感測器 | 1/2.5" Progressive Scan CMOS |
|---|
| 最大解像度 | 3632 × 1632 |
|---|
| 最低照度 | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
|---|
| 快門速度 | 1 s to 1/100,000 s |
|---|
| 日夜切換 | 24/7 color imaging |
|---|
| 角度調節 | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 mm |
|---|
| 鏡頭及視場角 | 2.8 mm, horizontal FOV 180°, vertical FOV 79° |
|---|
| 鏡頭接口 | M12 |
|---|
| 光圈類型 | Fixed |
|---|
| 光圈 | F1.0 |
|---|
| DORI 偵測距離 | 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m |
|---|
| 補光類型 | IR, White Light |
|---|
| 補光距離 | Up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632) 50 Hz: 20 fps (1200× 536, 960 × 432) 60 Hz: 20 fps (1200× 536, 960 × 432) Main stream: H.265+/H.265/H.264+/H.264, , Sub-stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR, VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream |
|---|
| Audio Type | Mono sound |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
|---|
| 同時取流 | Up to 6 channels |
|---|
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK 3 user levels: administrator, operator, and user Password protection, complicated password, watermark, basic and digest |
|---|
| 安全 | authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|---|
| 客戶端 | iVMS-4200, HiLookVision Plug-in required live view: IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+ Rotate mode, saturation, brightness, sharpness, gain, white balance, contrast, adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 4 programmable polygon privacy masks |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| 內置麥克風 | Yes, 1 built-in microphone Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. |
|---|
| 重設鍵 | Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to FTP, upload to memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing 12 VDC ± 25%, 0.83 A, max. 10 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|
| 供電 | protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W IPC-B469HAD-LUF/S(L)(RB):Front cover: Metal, body: Plastic, bracket: Metal Front cover: Metal, body: Plastic, bracket: Metal |
|---|

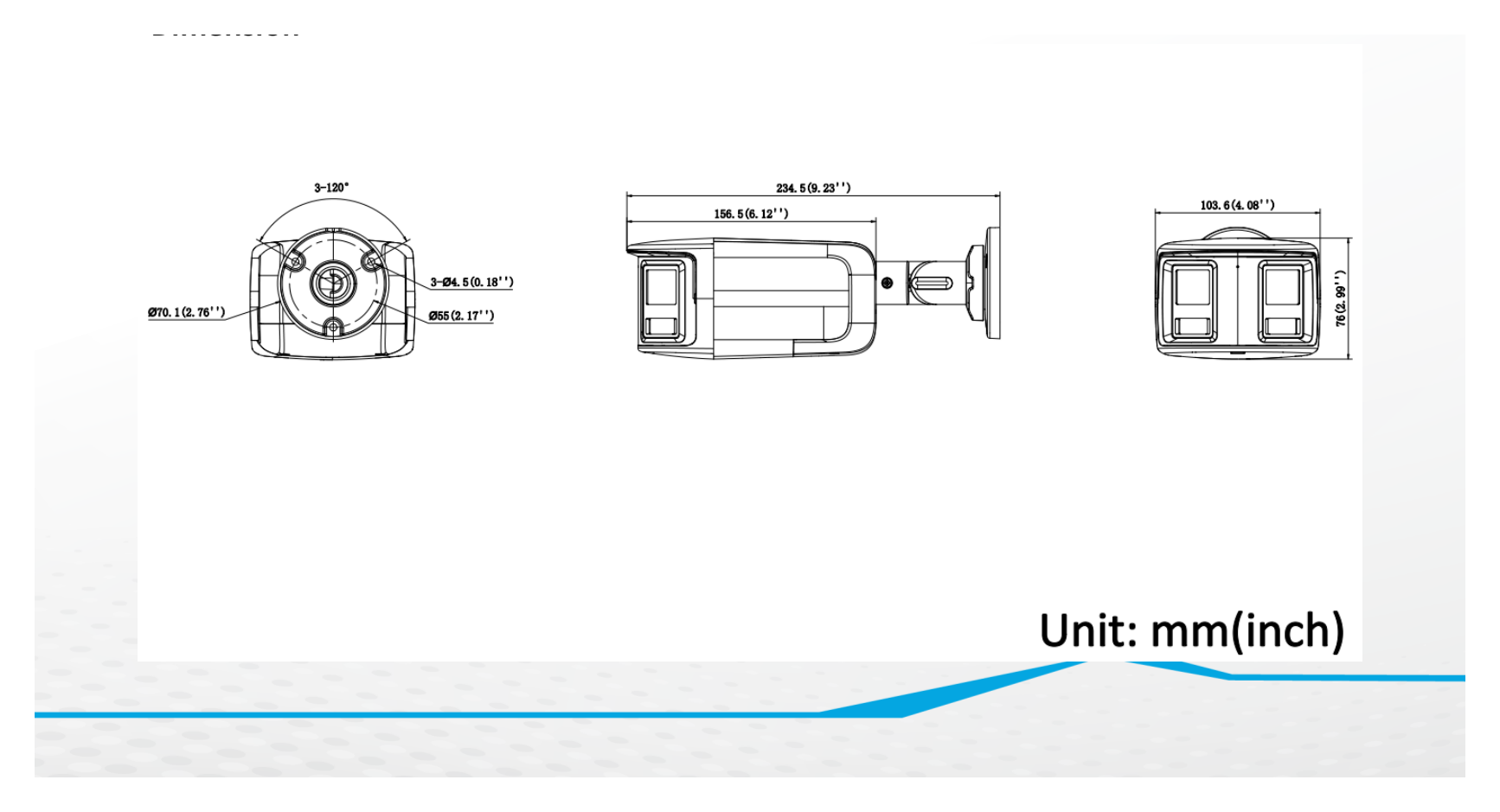

| 尺寸 | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") |
|---|
| 包裝尺寸 | 260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5") |
|---|
| 重量 | Approx. 560 g (1.2 lb.) |
|---|
| 連包裝重量 | Approx. 835 g (1.8 lb.) |
|---|
| 儲存環境 | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
|---|
| 一般功能 | Heartbeat, anti-banding, password protection, password reset via email /SRB model: Red and Blue Light /SL model: White Light CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
|---|
| Safety | CB: IEC 62368-1: 2014+A11 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
