HILOOK IPC-B480H 安裝、保養、維修

Name: HILOOK IPC-B480H 8MP定焦網絡槍型攝影機
Brand: HiLook
SKU: IPC-B480H

產品簡介

HiLook IPC-B480H 為8MP定焦網絡槍型攝影機，適合舖頭、寫字樓、貨倉出入口、後巷、停車場等日常監控場景。配合50米紅外夜視及IR Cut Filter日夜自動切換，夜晚都清晰唔偏色；120dB寬動態進一步提升大門口、落地玻璃呢類逆光位嘅畫質。HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎聯絡我們查詢 IPC-B480H 香港價格連安裝報價。

8MP高清畫質：1/2.8" Progressive Scan CMOS，重要範圍（收銀處、貨架、車牌位）睇得夠細緻
50米有效夜視距離：夜晚/密閉車庫、後巷都有清晰畫面
120dB寬動態(WDR)：大門口/落地玻璃等逆光位，唔會影到人變晒黑影
多焦距鏡頭可選：舖頭、走廊、貨倉唔同空間闊度都揀到啱視角，唔使另配鏡頭
IP67防水防塵：室外簷篷、天台、後巷等位置都適合安裝，日曬雨淋都冇問題

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.8" Progressive Scan CMOS
最大解像度	3840 × 2160
快門速度	1/3 s to 1/100,000 s 4 mm: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR 6 mm: Color: 0.01 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
鏡頭類型	Fixed focal lens, 4 and 6 mm optional 4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102° 6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
鏡頭接口	M12
光圈類型	Fixed 4 mm, F2.0 6 mm, F1.6 4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m 6 mm, D: 169 m, O: 67 m, R: 34 m, I: 17 m
補光類型	IR
補光距離	Up to 50 m
智能補光	Yes
紅外波長	850 nm 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline Profile/Main Profile/High Profile
H.265 類型	Main Profile
碼率控制	CBR/VBR
感興趣區域 ROI	1 fixed region for main stream Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S), ISAPI, SDK Protocols UDP, QoS, Bonjour, FTP, SMTP Up to 32 users User/Host 3 levels: Administrator, Operator and User
客戶端	iVMS-4200, HiLookVision Plug-in required live view: IE 10, IE 11 Web Browser Local service: Chrome 57.0+, Firefox 52.0+
寬動態 WDR	120 dB
信噪比 SNR	≥ 52 dB
日夜模式	Day, Night, Auto, Schedule
影像增強	BLC, HLC, 3D DNR Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance Image Settings adjustable by client software or web browser
隱私遮蔽	4 regions of privacy mask
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
基本事件	Motion detection, video tampering alarm, exception
聯動方式	Notify surveillance center, trigger capture 12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug Power PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W
材質	Front cover: metal, body: plastic, bracket: metal

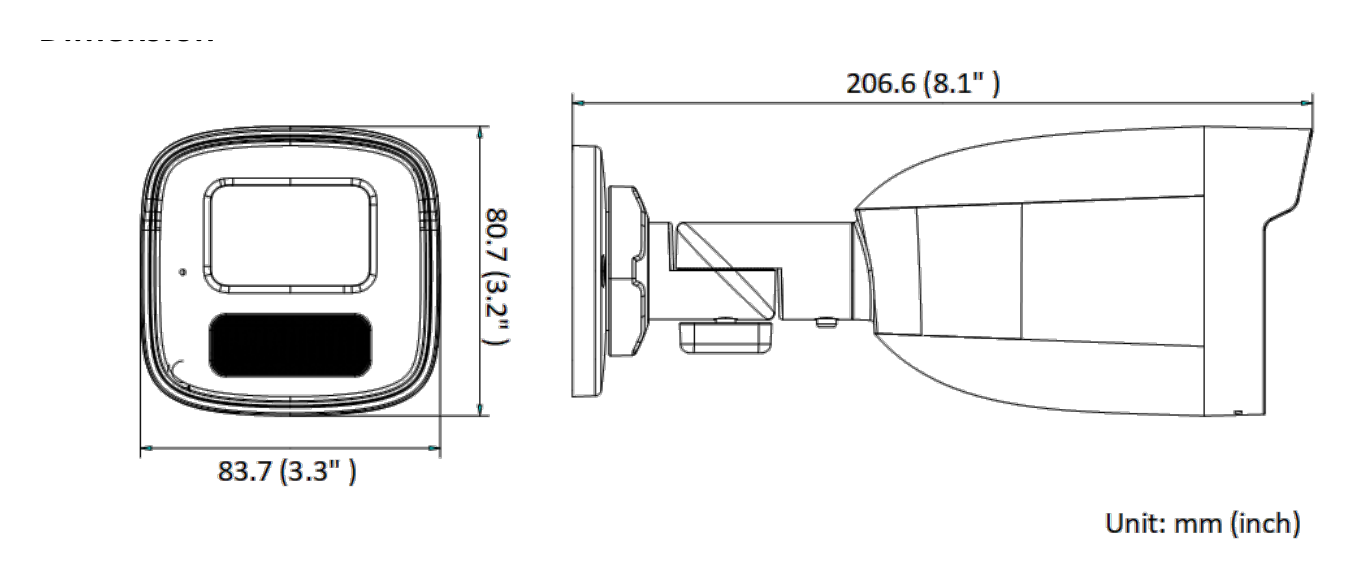

尺寸	83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
包裝尺寸	260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
重量	Approx. 375 g (0.87 lb.)
連包裝重量	Approx. 599 g (1.29 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions
語言	English, Ukrainian
一般功能	Anti-flicker, heartbeat, password protection, password reset via email FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1: 2014/A11: 2017) CE-RoHS (2011/65/EU);
Environment	WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
防護等級	IP67 (IEC 60529-2013)
