HILOOK IPC-B620HA-Z 安裝、保養、維修

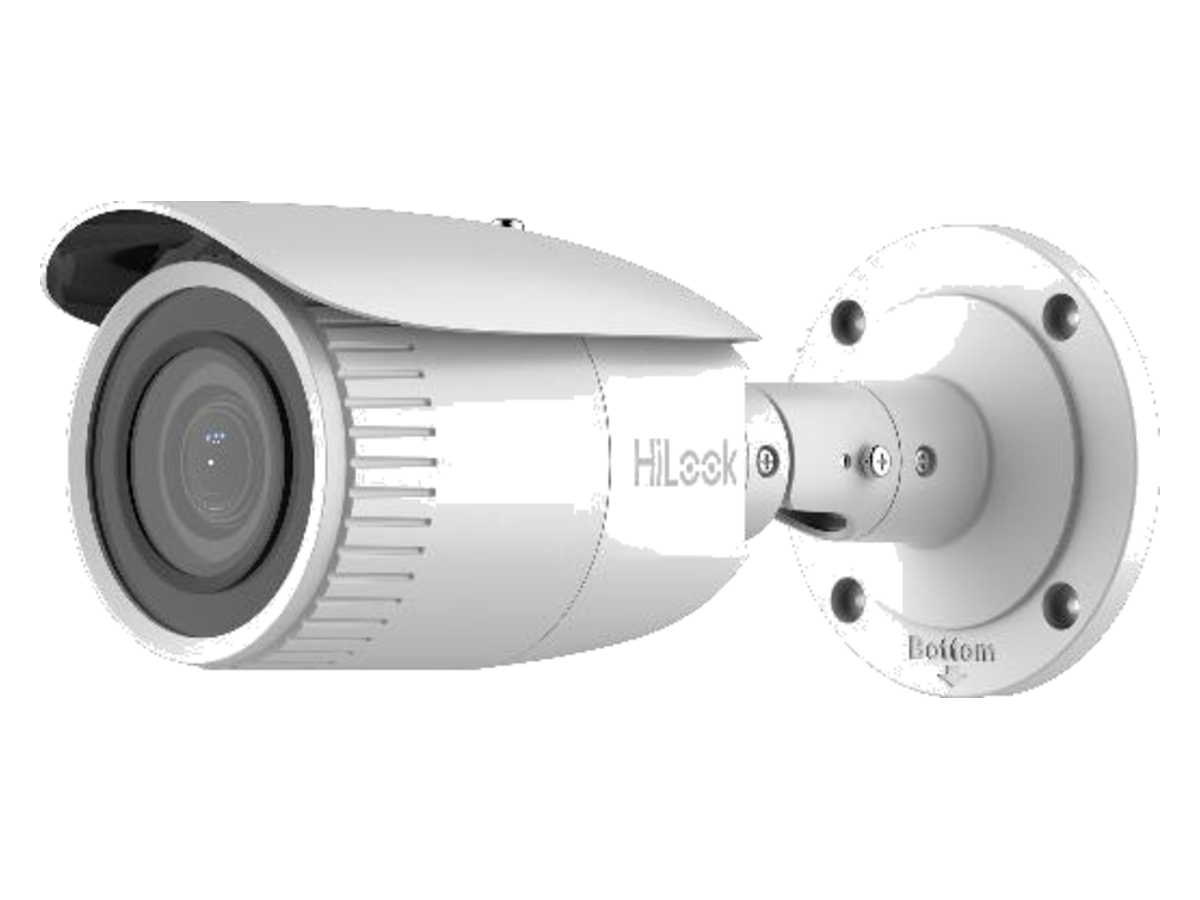

Name: HILOOK IPC-B620HA-Z 2MP變焦網絡槍型攝影機
Brand: HiLook
SKU: IPC-B620HA-Z

產品簡介

HiLook IPC-B620HA-Z 為2MP變焦網絡槍型攝影機，適合舖頭、寫字樓、貨倉出入口、後巷、停車場等日常監控場景。配合50米紅外夜視及IR Cut Filter日夜自動切換，夜晚都清晰唔偏色；HKEZIT提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務，歡迎聯絡我們查詢 IPC-B620HA-Z 香港價格連安裝報價。

2MP高清畫質：1/2.9" Progressive Scan CMOS，重要範圍（收銀處、貨架、車牌位）睇得夠細緻
50米有效夜視距離：夜晚/密閉車庫、後巷都有清晰畫面
內置Digital WDR數碼寬動態，逆光/光暗反差大嘅環境都睇得清楚主體
電動變焦鏡頭：現場遠程調整焦距及視角，唔使斷電走上去手動較，慳返好多工夫
IP67防水防塵：室外簷篷、天台、後巷等位置都適合安裝，日曬雨淋都冇問題

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

影像感測器	1/2.9" Progressive Scan CMOS
最大解像度	1920 × 1080
最低照度	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
快門速度	1/3 s to 1/100,000 s
日夜切換	IR cut filter
角度調節	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
鏡頭類型	Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm: horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
鏡頭接口	Ø 14
光圈類型	Fixed
光圈	F1.6
補光類型	IR
補光距離	Up to 50 m
紅外波長	850 nm
智能補光	Yes 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 8 Mbps
H.264 類型	Baseline Profile, Main Profile, High Profile
H.265 類型	Main Profile
感興趣區域 ROI	1 fixed region(s) for main stream
網絡協議	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
同時取流	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Password protection, complicated password, watermark, basic and digest
安全	authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) Up to 32 users 3 user levels: administrator, operator, and user
客戶端	iVMS-4200, HiLookVision Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
日夜模式	Auto, Schedule, Day, Night
寬動態 WDR	Digital WDR
影像增強	BLC, HLC, 3D DNR
網絡接口	1 RJ45 10 M/100 M self-adaptive Ethernet port
機身儲存	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
重設鍵	Yes Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture 12 VDC ± 25%, 0.9 A, max. W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
材質	Metal

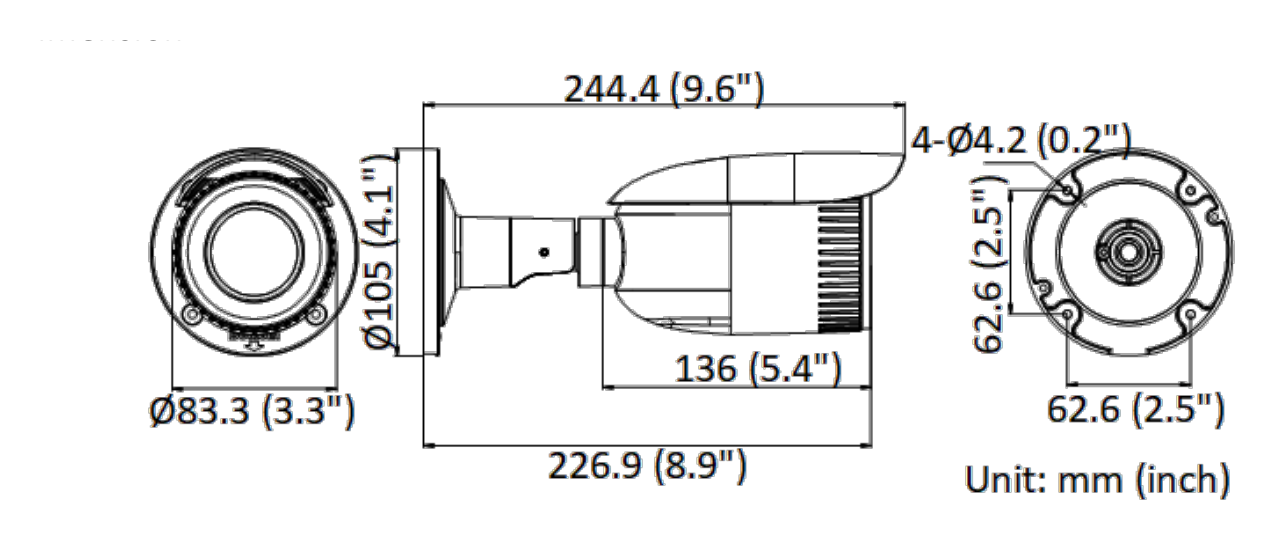

尺寸	Ø 105 mm × 244.4 mm (Ø 4.1" × 9.6")
包裝尺寸	315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
重量	Approx. 705 g (2.3 lb.)
連包裝重量	Approx. 1085 g (3.4 lb.)
儲存環境	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
語言	English, Ukrainian
一般功能	Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
EMC	50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
防護等級	IP67: IEC 60529-2013
